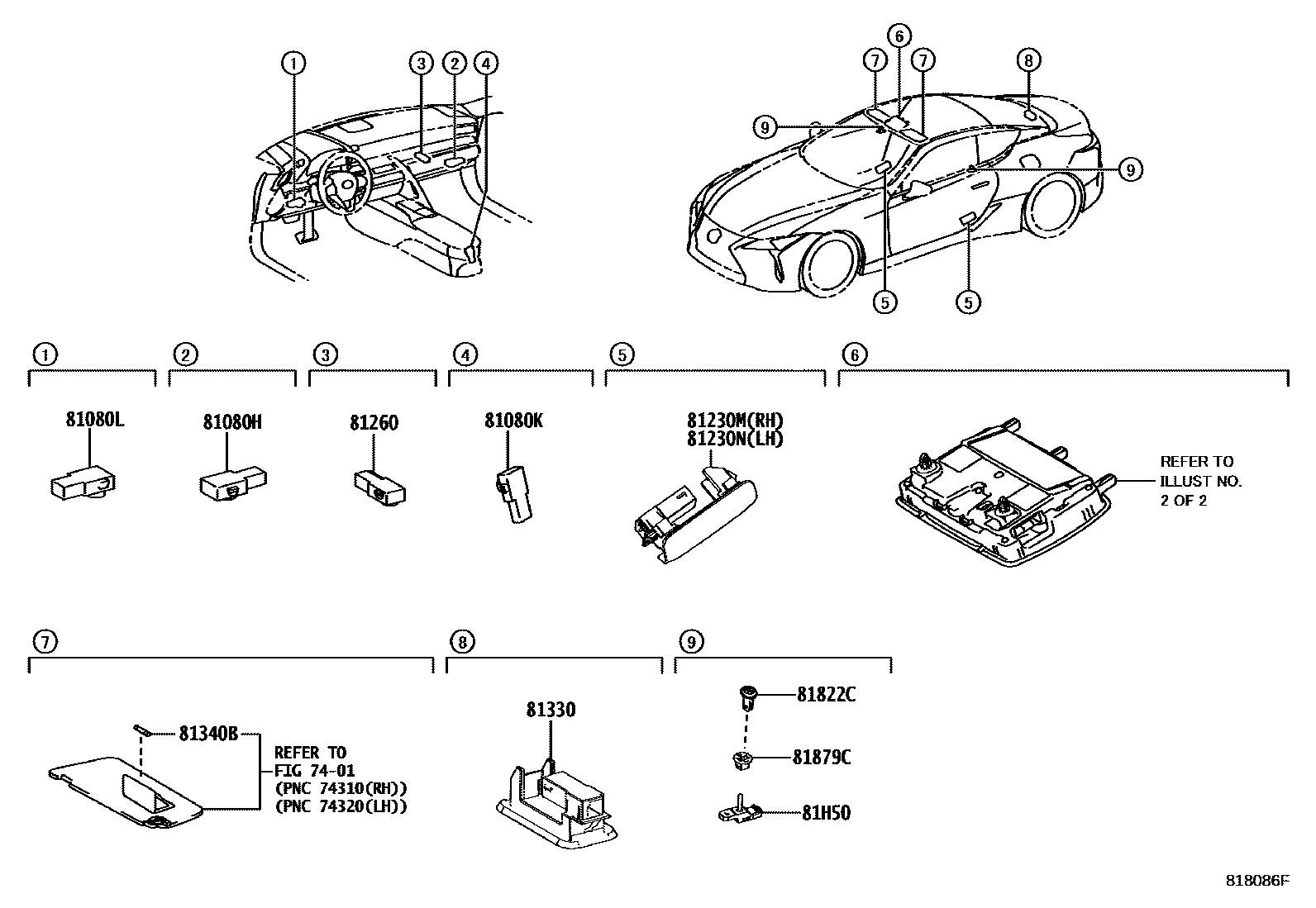

INTERIOR LAMP

0001 1 0002 1

7401ARMREST & VISOR

→ Go to FIG 74-01

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33090iGWZ100,URZ100201701-201811

main81080-33310iGWZ100,URZ100201811

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30010iGWZ100,URZ100201701-201810

main81080-30170iGWZ100,URZ100201811

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33090iGWZ100,URZ100201701-201811

main81080-33310iGWZ100,URZ100201811

81230MLAMP ASSY, COURTESY, RH

main81230-11030iGWZ100,URZ100201701

81230NLAMP ASSY, COURTESY, LH

main81230-11030iGWZ100,URZ100201701

81260LAMP ASSY, GLOVE BOX

main81080-22040iGWZ100,URZ100201701-201810

main81080-33290iGWZ100,URZ100201811

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iGWZ100,URZ100201701

81340BBULB (FOR VANITY LAMP)

main90981-14014iGWZ100,URZ100201701

12V 2W

81822CCOVER, INDICATOR LAMP

main81822-11010iGWZ100,URZ100201701

81879CBRACKET, INDICATOR LAMP

main81879-50020iGWZ100,URZ100201701

81H50LAMP ASSY, INDICATOR

main81850-11010iGWZ100,URZ100201701

12 parts on this diagram · 2 diagrams in section
