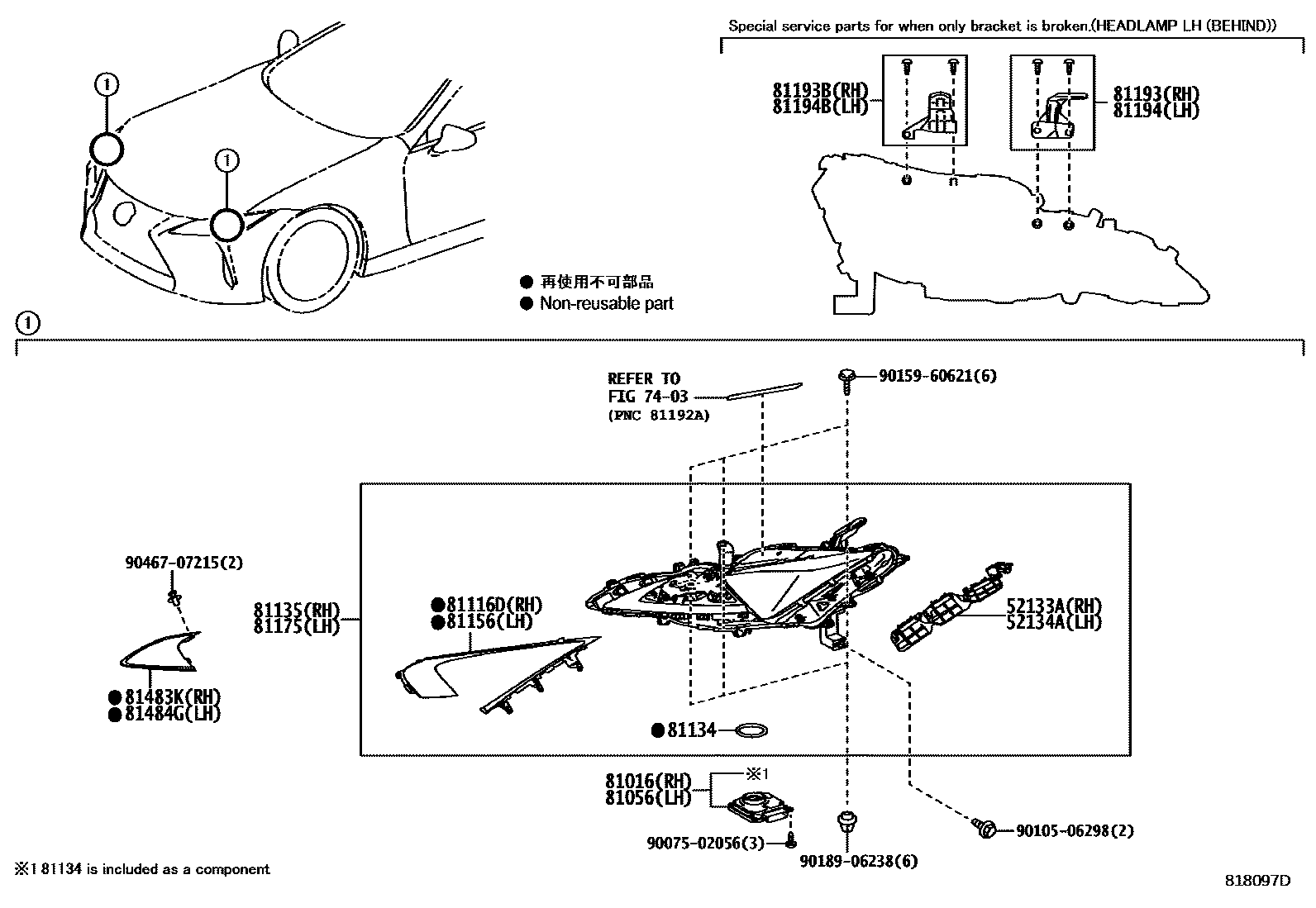

HEADLAMP
52133ABRACKET, FRONT BUMPER, RH
52134ABRACKET, FRONT BUMPER, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81116DRIM, HEAD LAMP, RH
"AVIATION"*(D); KOREA SPEC&"AVIATION"*(D)
81134GASKET, HEADLAMP
"AVIATION"*(D); KOREA SPEC&"AVIATION"*(D)
81135UNIT ASSY, HEADLAMP, RH
KOREA SPEC
KOREA SPEC
KOREA SPEC&"AVIATION"*(D)
PERSONAL PACKAGE&HEAD LAMP-WITH(*AHB) & BLACK
KOREA SPEC
81156RIM, HEADLAMP, LH
"UNWIND"*(E)&HEAD LAMP-WITH(*AHB) & BLACK
81175UNIT ASSY, HEADLAMP, LH
KOREA SPEC
KOREA SPEC
KOREA SPEC&"AVIATION"*(D)
"UNWIND"*(E)&HEAD LAMP-WITH(*AHB) & BLACK
KOREA SPEC
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81483KCOVER, DAYTIME RUNNING LAMP, RH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
RADIANT RED CONTRAST LAYE,3T5
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
81484GCOVER, DAYTIME RUNNING LAMP, LH
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
RADIANT RED CONTRAST LAYE,3T5
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
STRUCTURAL BLUE,8Y0
9007502056
main90075-02056
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
9046707215
main90467-07215
21 parts on this diagram · 2 diagrams in section
