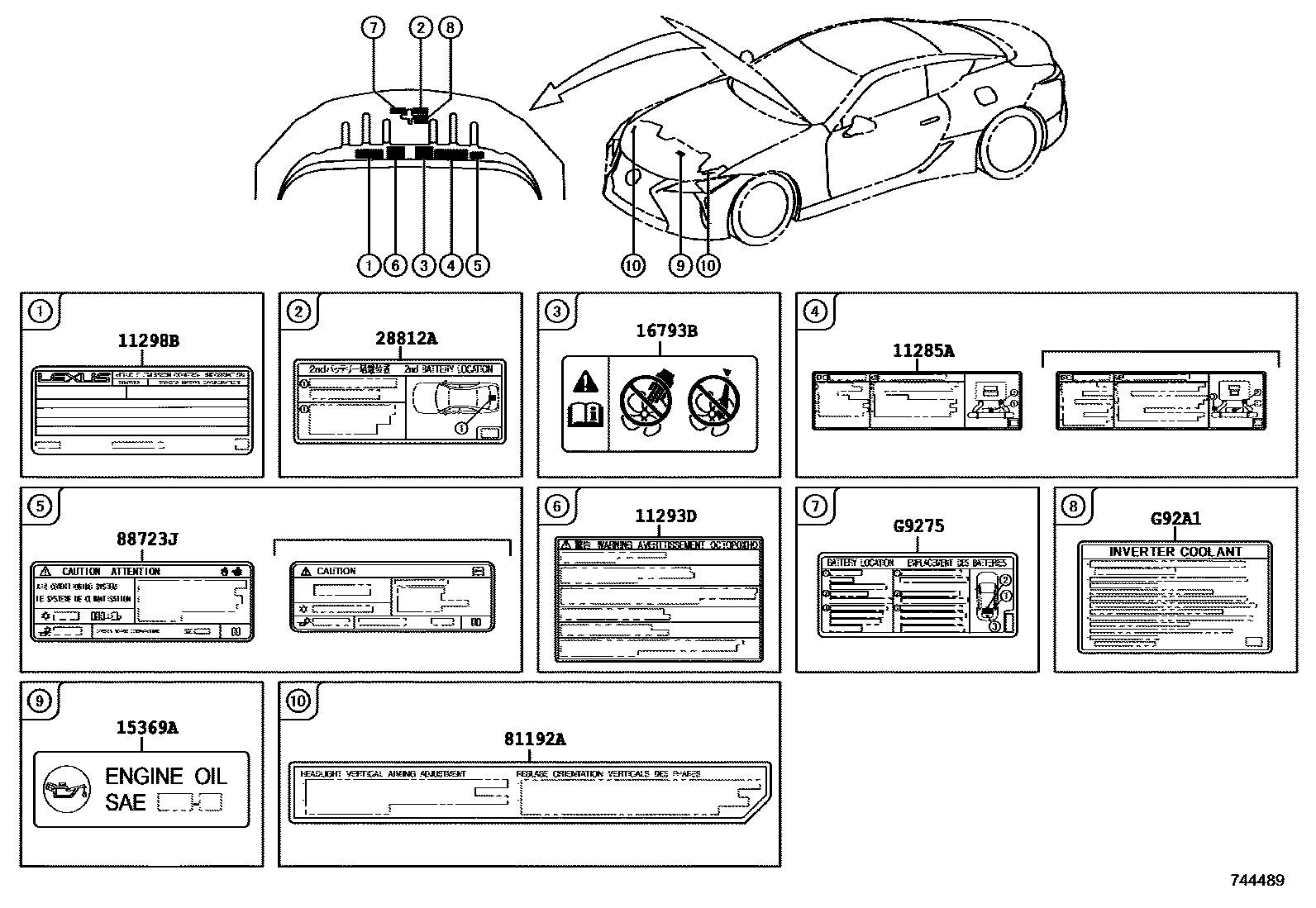

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1 0003 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-31080i8GRFXS..GWZ100201701

main11285-70020i2URGSE..URZ100201703

11293DLABEL, ENGINE CAUTION

main11293-36070i8GRFXS..GWZ100201701

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-31J00i8GRFXS..GWZ100201809-201906

main11298-31J30i8GRFXS..GWZ100201701-201809

main11298-31M30i8GRFXS..GWZ100201906-202004

main11298-31M60i8GRFXS..GWZ100202004-202110

main11298-31M61i8GRFXS..GWZ100202110-202210

main11298-31P10i8GRFXS..GWZ100202210

main11298-38680i2URGSE..URZ100201703-201809

KOREA SPEC

main11298-38760i2URGSE..URZ100201809-201906

KOREA SPEC

main11298-38780i2URGSE..URZ100202004-202110

KOREA SPEC

main11298-38781i2URGSE..URZ100202110-202210

KOREA SPEC

main11298-38790i2URGSE..URZ100201906-202004

KOREA SPEC

main11298-38830i2URGSE..URZ100202210

15369ALABEL, ENGINE OIL INFORMATION

main15369-31010i8GRFXS..GWZ100201701

KOREA SPEC

main15369-38010i2URGSE..URZ100201703

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i8GRFXS,2URGSE..GWZ100,URZ100201701

28812ALABEL, SUB-BATTERY INFORMATION

main28812-38010i8GRFXS,2URGSE..GWZ100,URZ100201701

81192ASEAL, HEADLAMP

main81192-50010iGWZ100,URZ100201701

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-11010iURZ100201703

main88723-11020iGWZ100201701

G9275LABEL, BATTERY CAUTION, NO.1

mainG927511020iGWZ100201701

CANADA SPEC&HIGH VOLTAGE BATTERY-WITH

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A111010iGWZ100201701-202008

10 parts on this diagram · 3 diagrams in section
