FRONT SEAT & SEAT TRACK

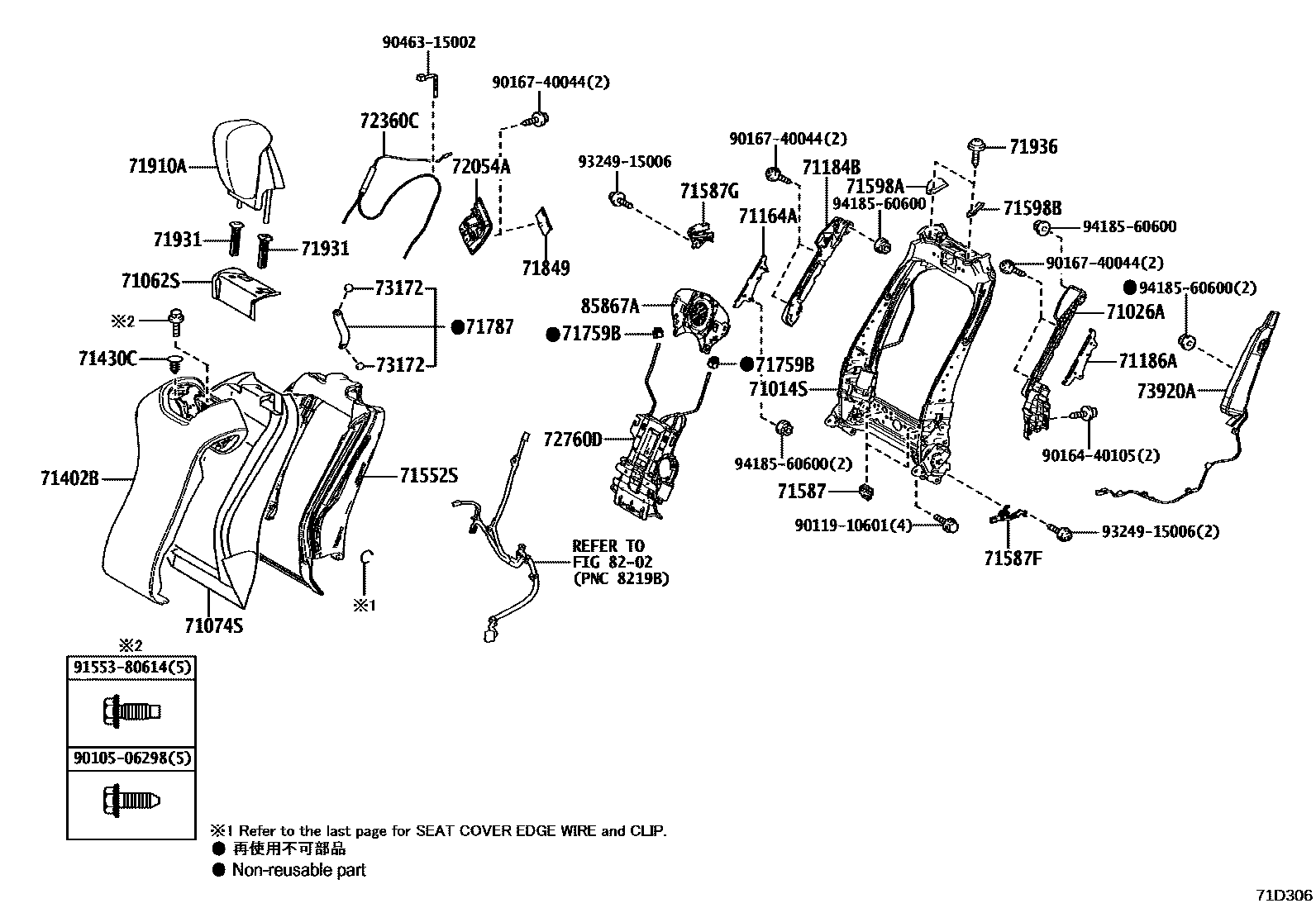

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-11020supersedes 71014-11011i201701-201910
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT
main71014-11021i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
71026ASUPPORT, FRONT SEATBACK, LH
main71026-11010i201701
main71026-11020i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
71062SCOVER SUB-ASSY, FRONT SEATBACK, UPPER LH
main71061-11010-C0i201701
BLACK,TRIM2#,3#
main71061-11010-E1i202004
OCHRE,TRIM4#
main71061-11010-E2i201909-202004
KUROKOHAKU,TRIM41
main71061-11010-E3i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),ORANGE,TRIM42
main71061-11010-J0i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-11050-20supersedes 71074-11010-C9i201906-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71074-11050-21i201909-202004
STRUCTURALBLUE*(A)OR PATINA ELEGANCE*(C)&SEAT COVER MATERIAL-L-ANILINE(FRONT SEAT),KUROKOHAKU,TRIM4#
main71074-11050-22i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM3#
main71074-11050-23i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71074-11050-24i202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM23
main71074-11050-A7i201701-201906
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71074-11050-A9i201809-201906
LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/ECRU NO.307,TRIM2#
main71074-11050-C8supersedes 71074-11010-C7i201701-201906
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71074-11050-C9supersedes 71074-11010-C8i202202
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM20
main71074-11050-D8supersedes 71074-11010-D8i201701-201906
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71074-11050-E6supersedes 71074-11010-E6i201701-201906
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM4#
main71074-11050-E7supersedes 71074-11010-E7i201909
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM40
main71074-11050-J0i201906-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
71164ABRACKET, FRONT SEATBACK SUPPORT, LH
main71163-11010i201701
71184BSUPPORT, FRONT SEATBACK, LH
main71183-11010i201701
main71025-11030i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
71186BRACKET, FRONT SEAT SIDE SUPPORT, RH
main71186-11010i201701
71186ABRACKET, FRONT SEAT SIDE SUPPORT, LH
main71186-11020i201701
71402BBACK SUB-ASSY, FRONT SEAT, LH
main71402-11010-E1i201701
LT.OCHRE,TRIM4#
main71402-11030-A0i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71402-11030-C5supersedes 71402-11010-C4i201701-202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71402-11030-C6i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71402-11030-C8i202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/DK. ROSE,TRIM23
main71402-11030-D1supersedes 71402-11010-D1i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71402-11030-D3i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
main71402-11030-E1i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
main71402-11100-A2i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/MUSTARD YELLOW,TRIM2#
main71402-11160-E1i201909-202004
KOREA SPEC&STRUCTURALBLUE*(A)OR PATINA ELEGANCE*(C)&SEAT COVER MATERIAL-L-ANILINE(FRONT SEAT),SADDLE TAN,TRIM4#
71430CCLIP
main00000-00000supersedes 67771-26230-C1i201701-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),NOT APPLICABLE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-11010i201701
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010×4i201701
71587FPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR LH SEAT)
main71587-11030i201701
71587GPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR LH SEAT)
main71587-11040i201701
71598APLATE, SEAT COVER, RH
main00000-00000supersedes 71598-11010i201701-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),NOT APPLICABLE
71598BPLATE, SEAT COVER, LH
main00000-00000supersedes 71598-11010i201701-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),NOT APPLICABLE
71759BHOOK, FRONT SEATBACK
main71759-50040×4i201911
main71759-52050×4i201701-201910
71787BAND, FRONT SEATBACK POCKET
main71788-11010-C5×2i201701
BLACK,TRIM2#
main71788-11010-A1×2i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71788-11010-A2×2i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/MUSTARD YELLOW,TRIM2#
main71788-11010-C6×2i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71788-11010-D4×2i202202
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM31
main71788-11010-E6×2i201909-202004
KOREA SPEC&STRUCTURALBLUE*(A)OR PATINA ELEGANCE*(C)&SEAT COVER MATERIAL-L-ANILINE(FRONT SEAT),SADDLE TAN,TRIM4#
main71788-11020-C2×2i201701-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71788-11020-C4×2i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/ORANGE,TRIM42
main71788-11020-C5×2i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/BROWN,TRIM21,22
main71788-11020-D1×2supersedes 71788-11010-D2i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71788-11020-D3×2i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71788-11020-E1×2supersedes 71788-11010-E3i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
71849CAP, SEAT ADJUSTER COVER, LH
main71848-11010-C1supersedes 71848-11010-C1i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,31,42
main71848-11010-D0i201701-202004
DK.ROSE,TRIM30
main71848-11010-E2i201701
LT.OCHRE,TRIM40
main71848-11010-E3i201909-202004
DK.SADDLE TAN,TRIM41
main71848-11010-A0i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM21,8#
main71848-11010-D1i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM31
main71848-11010-E1i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),OCHRE,TRIM40
71910AHEADREST ASSY, FRONT SEAT
main71910-11020-E4×2i202004
OCHER,TRIM4#
main71910-11030-20×2i201809-201906
LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/BLACK,TRIM2#
main71910-11030-23×2supersedes 71910-11020-20i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71910-11030-24×2i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71910-11030-25×2i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM3#
main71910-11030-C8×2supersedes 71910-11020-C7i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71910-11030-C9×2supersedes 71910-11020-C8i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71910-11030-E3×2supersedes 71910-11020-E3i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM4#
main71910-11030-E4×2i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHER,TRIM40
main71910-11030-J1×2i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71910-11040-C5×2supersedes 71910-11020-C7i201701-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
sub71910-11070
main71910-11040-C7×2i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/ORANGE,TRIM42
sub71910-11070
main71910-11040-C8×2i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/BROWN,TRIM21,22
sub71910-11070
main71910-11040-D4×2supersedes 71910-11020-C8i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
sub71910-11070
main71910-11040-D5×2i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
sub71910-11070
main71910-11040-E3×2supersedes 71910-11020-E3i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM4#
sub71910-11070
main71910-11190-E0×2supersedes 71910-11020-E3i201909-202004
STRUCTURALBLUE*(A)OR PATINA ELEGANCE*(C)&SEAT COVER MATERIAL-L-ANILINE(FRONT SEAT),KUROKOHAKU,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i201701
W(LOCK),BLACK,TRIM2#,3#,4#,8#
main71931-47030-C4×2i201701
W/O(LOCK),BLACK,TRIM2#,3#,4#,8#
71936CLIP
main90467-08186-C0×2i201701
BLACK
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72053-11010-D0i201701-202004
DK.ROSE,TRIM30
main72053-11010-E3i201909-202004
DK.SADDLE TAN,TRIM41
main72053-11010-A0i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM2#,8#
main72053-11010-D1i202004-202305
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM31
main72053-11010-E1supersedes 72053-11010-E2i201701-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
72360CCABLE ASSY, RECLINING ADJUSTER EQUALIZING LH
main72360-11010i201701
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-11010i201701
main72760-11020i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT
73172CAP, FRONT SHOULDER BELT HANGER
main73172-50020×4i201701
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-11010i201701
8202
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-11011i201701
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-11011i201701
9010506298
main90105-06298
9011910601
main90119-10601
9016440105
main90164-40105
9016740044
main90167-40044
9046315002
main90463-15002
9155380614
main91553-80614
9324915006
main93249-15006
9418560600
main94185-60600

38 parts on this diagram · 13 diagrams in section
