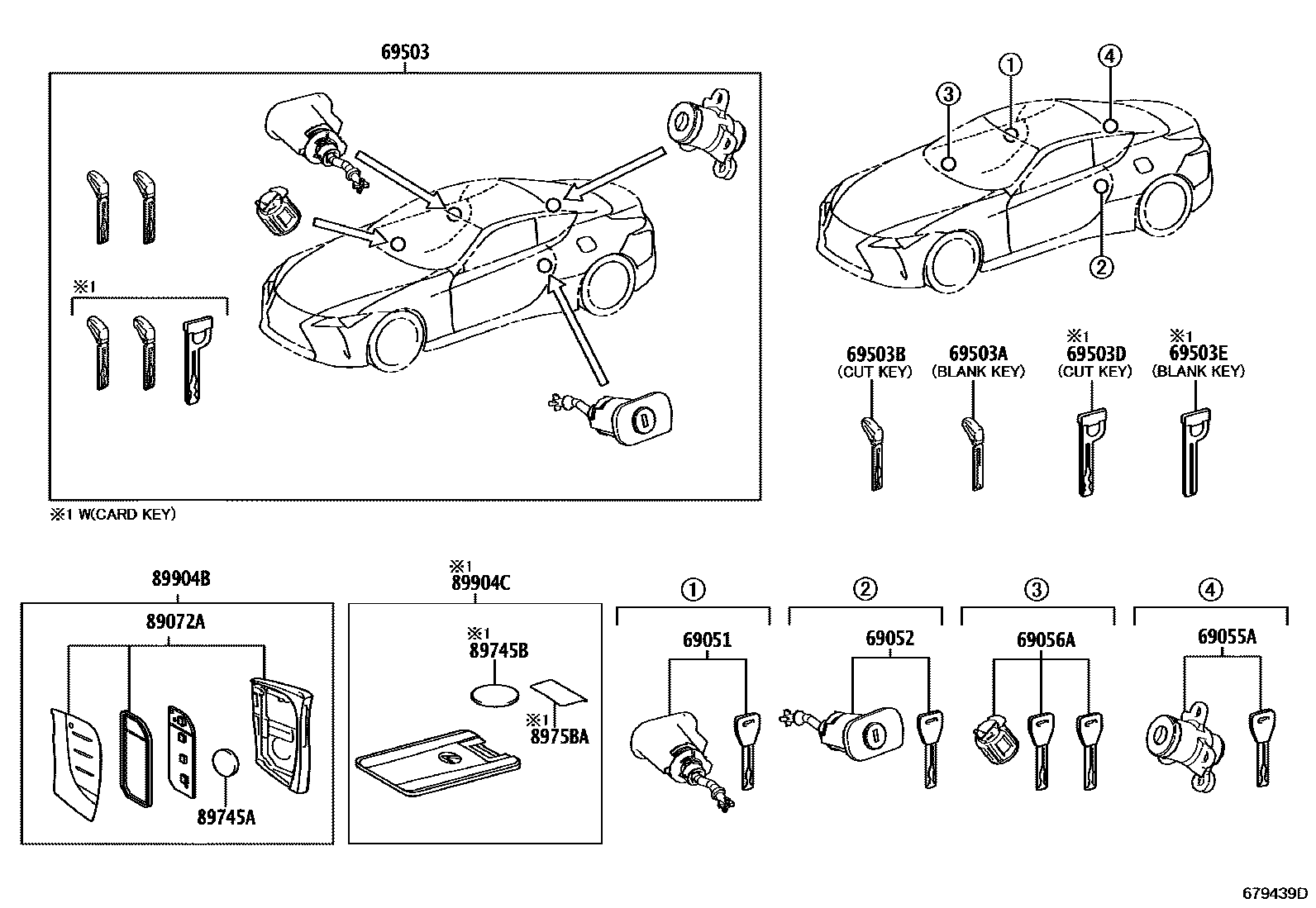

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
KEY PLATE-SMART KEY(2),WITH(CARD KEY)
69503AKEY, BLANK
BLANK KEY
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
MASTER KEY,KEY PLATE-SMART KEY(2),WITH(CARD KEY)
69503EKEY, BLANK(CARD KEY)
MASTER KEY,KEY PLATE-SMART KEY(2),WITH(CARD KEY)
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
KOREA SPEC
KOREA SPEC
89745ABATTERY, TRANSMITTER
CR2032
CR2032
89745BBATTERY, TRANSMITTER(CARD KEY)
CR2412,KEY PLATE-SMART KEY(2),WITH(CARD KEY); CR2412,KOREA SPEC&KEY PLATE-SMART KEY(2),WITH(CARD KEY)
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
KEY PLATE-SMART KEY(2),WITH(CARD KEY); KOREA SPEC&KEY PLATE-SMART KEY(2),WITH(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
KOREA SPEC
KOREA SPEC
KOREA SPEC
KOREA SPEC
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
KEY PLATE-SMART KEY(2),WITH(CARD KEY)
KEY PLATE-SMART KEY(2)HV,WITH(CARD KEY)
KOREA SPEC&KEY PLATE-SMART KEY(2),WITH(CARD KEY)
KOREA SPEC&KEY PLATE-SMART KEY(2)HV,WITH(CARD KEY)
KEY PLATE-SMART KEY(2),WITH(CARD KEY)
KEY PLATE-SMART KEY(2),WITH(CARD KEY)
KEY PLATE-SMART KEY(2)HV,WITH(CARD KEY)
KOREA SPEC&KEY PLATE-SMART KEY(2),WITH(CARD KEY)
KOREA SPEC&KEY PLATE-SMART KEY(2)HV,WITH(CARD KEY)
15 parts on this diagram · 1 diagram in section
