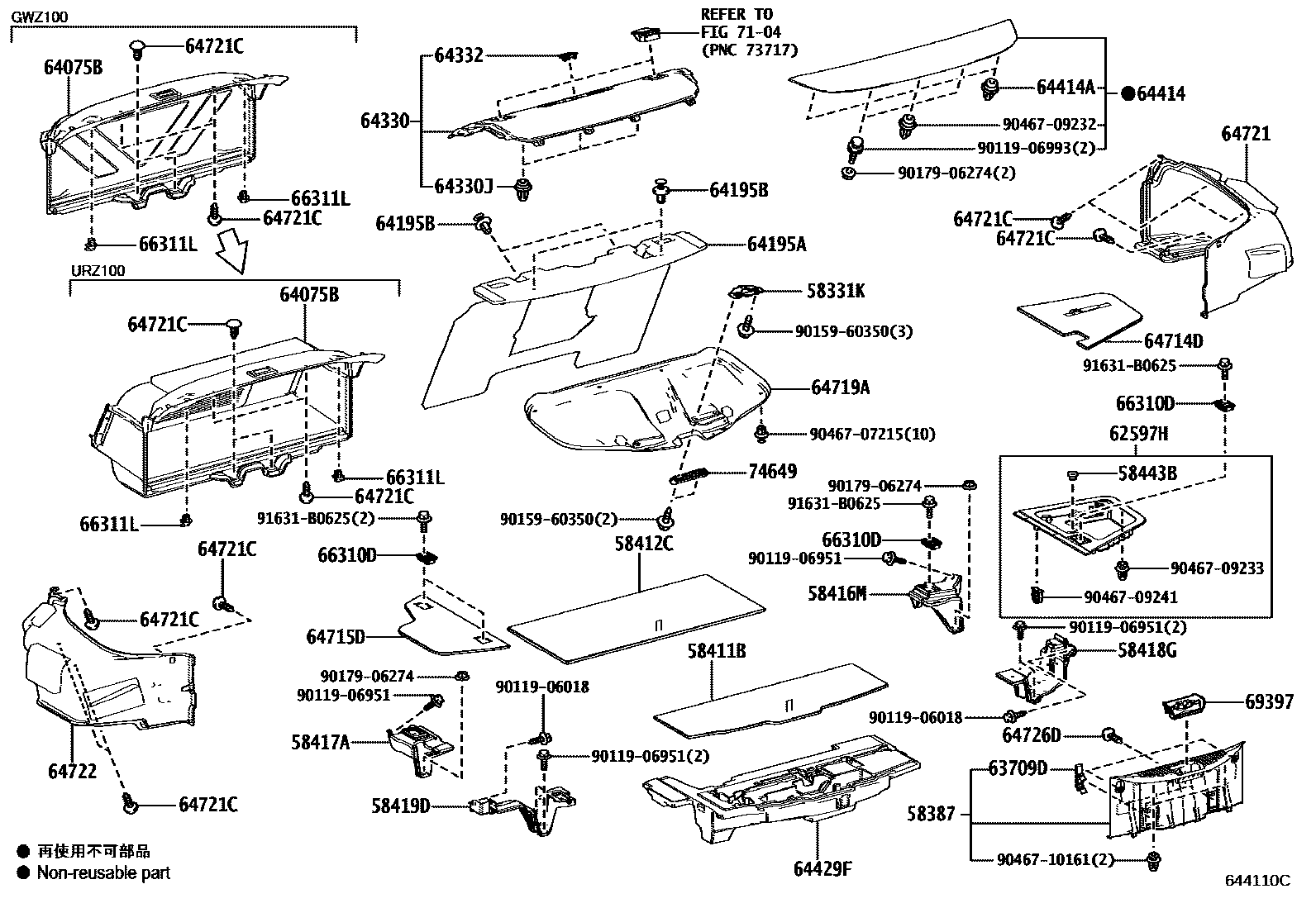

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58331KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-11020iGWZ100,URZ100201701

58387PLATE, REAR FLOOR FINISH

main58387-11030-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

58411BBOARD, DECK, NO.1

main58411-11020-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

58412CBOARD, DECK, NO.2

main58412-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

58416MBRACKET, DECK BOARD, NO.1 RH

main58416-11020iGWZ100,URZ100201701

58417ABRACKET, DECK BOARD, NO.1 LH

main58417-11030iGWZ100,URZ100201701

58418GBRACKET, DECK BOARD, NO.2

main58418-11010iGWZ100,URZ100201701

58419DBRACKET, DECK BOARD, NO.3

main58419-11010iGWZ100,URZ100201701

58443BCUSHION, DECK BOARD, NO.1

main58443-33010iGWZ100,URZ100201701

62597HBOX, SIDE TRIM

main62597-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

63709DBAND SUB-ASSY, ROOM RACK

main63709-11010-C1×2iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-11010-C3iURZ100201703

BLACK,TRIM2#,3#,4#,8#

main64075-11020-C0iGWZ100201701

BLACK,TRIM2#,3#,4#,8#

64195AINSULATOR, ROOM PARTITION PANEL

main64195-11010iGWZ100,URZ100201701

64195BCLIP(FOR ROOM PARTITION PANEL INSULATOR)

main90467-07215×4iGWZ100,URZ100201701

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-11010-C2iGWZ100,URZ100201701

BLACK,TRIM2#,3#

main64330-11010-E2iGWZ100,URZ100201701

OCHRE,TRIM4#

main64330-11020-C1iGWZ100,URZ100201701

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,42

main64330-11020-C2iGWZ100,URZ100201909-202004

ROOF HEADLINING-ALCANTARA,KUROKOHAKU,TRIM41

main64330-11020-E0iGWZ100,URZ100201701

ROOF HEADLINING-ALCANTARA,OCHRE,TRIM40

main64330-11020-J0iGWZ100,URZ100201701-202004

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iGWZ100,URZ100201701

64332COVER, PACKAGE TRAY TRIM

main64332-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,42

main64332-11010-E0iGWZ100,URZ100201701

OCHRE,TRIM40

main64332-11010-J0iGWZ100,URZ100201701-202004

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

64414PANEL, LUGGAGE COMPARTMENT DOOR, OUTER LOWER

main64414-11010iGWZ100,URZ100201701

64414ACLIP, LUGGAGE COMPARTMENT DOOR PANEL

main62217-13010×2iGWZ100,URZ100201701

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-11010iGWZ100,URZ100201701-202210

main64429-11011iGWZ100,URZ100202211

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-11020-C3iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-11010-C0iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-11010-C0iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-11010-C0iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3×12iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-11010-C0iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

64726DCLIP, LUGGAGE TRIM, REAR

main90467-08186-C3×3iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

66310DHOOK ASSY, ROPE

main66310-30011-C1×4iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

66311LHOOK,ROPE

main66311-30010-C1×2iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

69397PROTECTOR, BACK DOOR LOCK

main69358-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#,8#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main69195-11020-C0iGWZ100,URZ100202008

BLACK,TRIM2#,3#,4#

main74649-51010-C3iGWZ100,URZ100201702-202008

BLACK,TRIM2#,3#,4#,8#

9011906018

main90119-06018

9011906951

main90119-06951

9011906993

main90119-06993

9015960350

main90159-60350

9017906274

main90179-06274

9046707215

main90467-07215

9046709232

main90467-09232

9046709233

main90467-09233

9046709241

main90467-09241

9046710161

main90467-10161

91631B0625

main91631-B0625

43 parts on this diagram · 1 diagram in section
