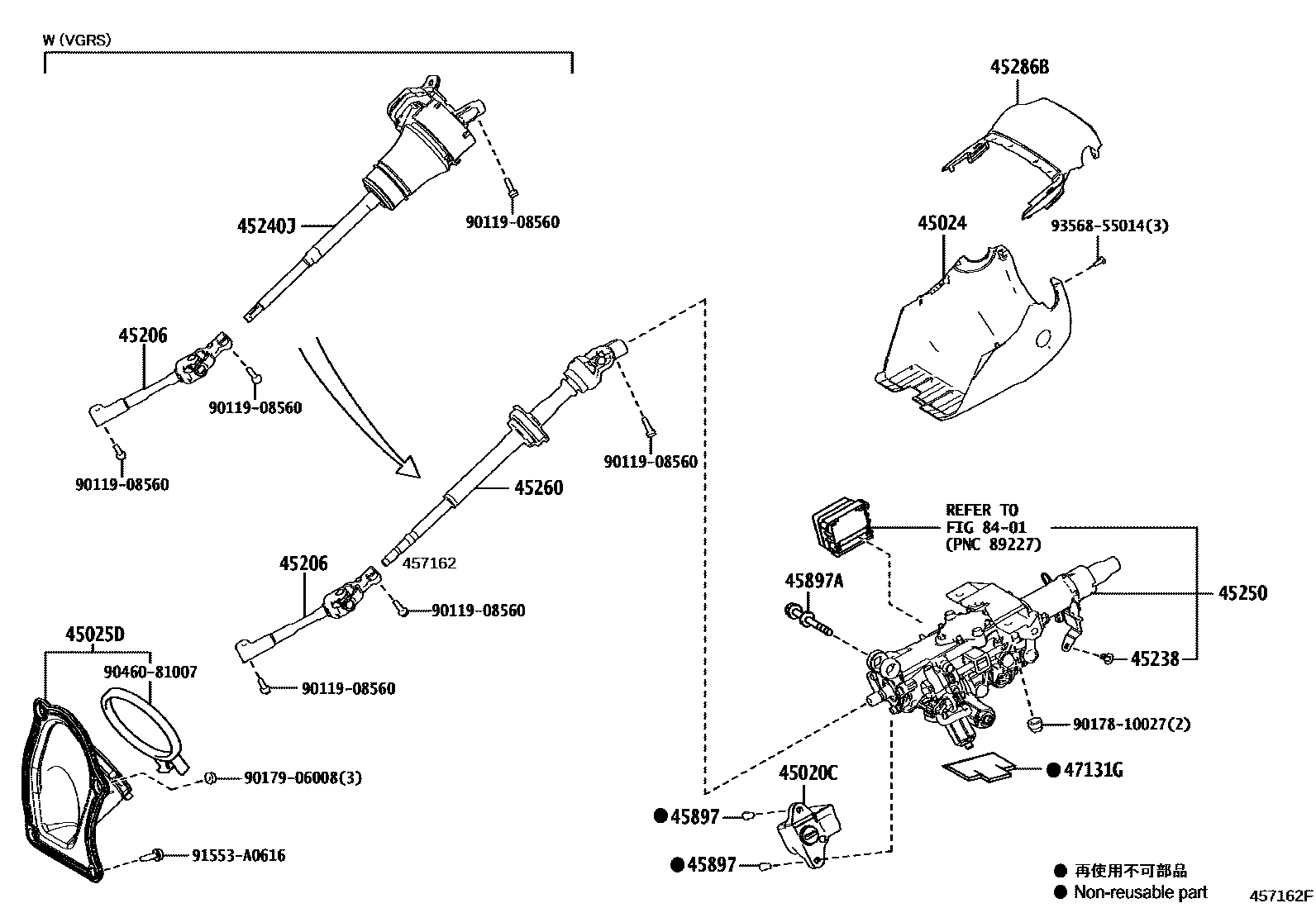

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33250supersedes 45020-33260iGWZ100,URZ100201809

KOREA SPEC

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#

main45024-11010-J0iGWZ100,URZ100201701-202004

BLUE,TRIM8#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-11010iGWZ100,URZ100201701

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-11010iGWZ100,URZ100201701-202301

main45206-11011iGWZ100,URZ100202301

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iGWZ100,URZ100201701

45240JACTUATOR ASSY, STEERING

main45240-11010iGWZ100,URZ100201809-201906

LUSTER YELLOW*()

main45240-11011iGWZ100,URZ100202206

FOUR-WHEEL STEERING-WITH

45250COLUMN ASSY, STEERING

main45250-33D60iGWZ100,URZ100201809-202005

KOREA SPEC

main45250-48430supersedes 45250-48420iGWZ100,URZ100202006

KOREA SPEC

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-11010iGWZ100,URZ100201701-201808

main45260-11030iGWZ100,URZ100201809-202205

main45260-11031iGWZ100,URZ100202206

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#,4#

main45286-11010-J0iGWZ100,URZ100201701-202004

BLUE,TRIM8#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGWZ100,URZ100201701

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iGWZ100,URZ100201809

main90119-10980iGWZ100,URZ100201701-201809

47131GCUSHION

main47131-11030iGWZ100,URZ100201701

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section
