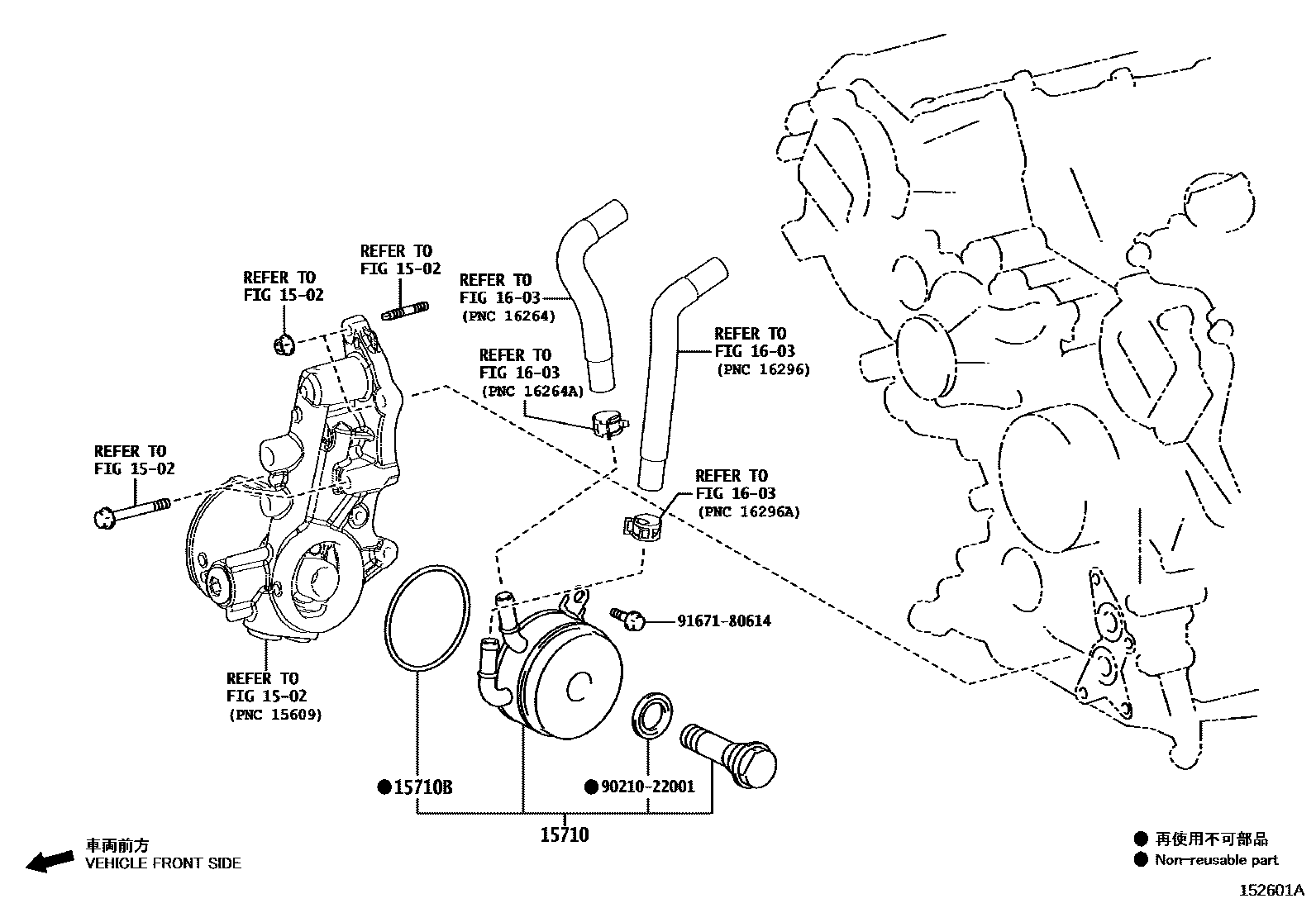

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15700-38050201703

15710BRING, O(FOR OIL COOLER)

main90301-67004201703

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9021022001

main90210-22001

9167180614

main91671-80614

6 parts on this diagram · 1 diagram in section
