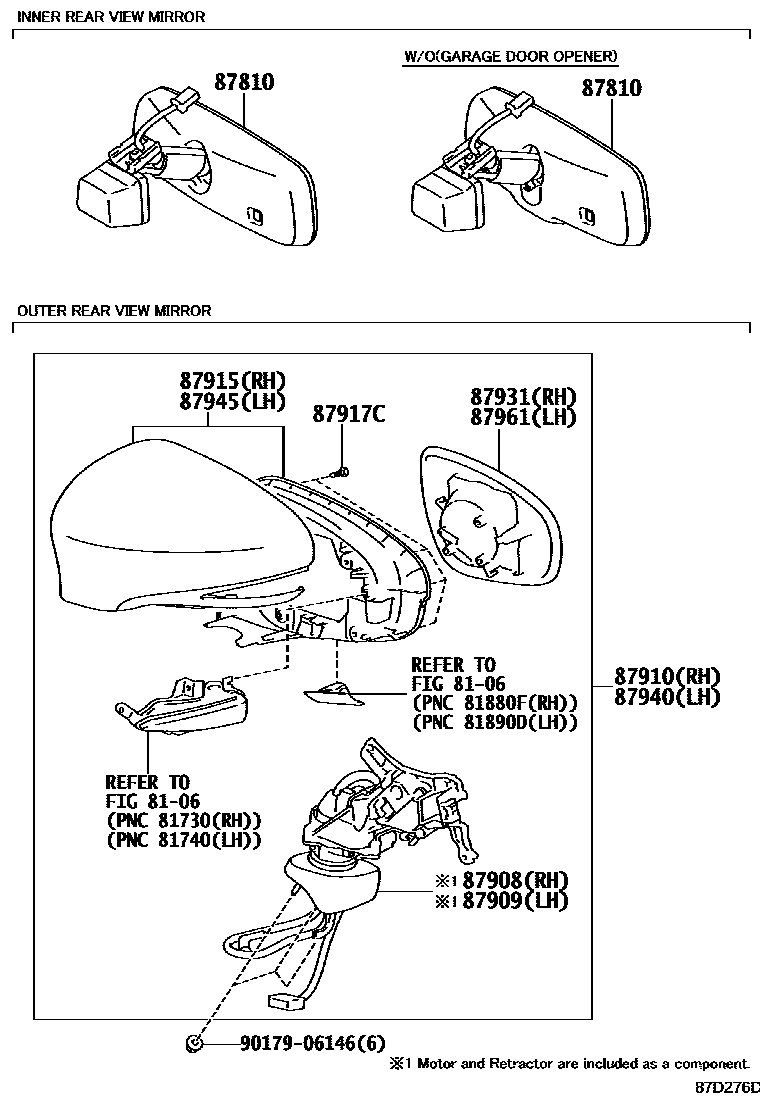

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WD50i201209-201308

main87810-0WE02i201609-201708

main87810-0WD30i201209-201309

HEADLAMP-LED & *AFLS & *AHB

main87810-0WD90i201209-201309

KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB

main87810-0WE01i201309-201504

KOREA SPEC

main87810-0WE30supersedes 87810-0WD30i201309-201609

PRE-COLLISION SYSTEM-WITH(*PB)

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-50761-B0supersedes 87908-50711-B0i201609-201708

MERCURY GRAY MC.,1H9

main87908-50761-B1supersedes 87908-50711-B1i201609-201708

SONIC SILVER,1J2

main87908-50761-B2supersedes 87908-50711-B2i201609-201708

SONIC TITANIUM,1J7

main87908-50761-C0supersedes 87908-50711-C0i201609-201708

BLACK,212

main87908-50761-C3i201609-201708

GRAPHITE BLACK GF.,223

main87908-50761-D0supersedes 87908-50711-D0i201609-201708

RED MC.CS.,3R1

main87908-50761-E0supersedes 87908-50711-E0i201609-201708

SLEEK ECRU ME.,4U7

main87908-50761-E2i201609-201708

AMBER CS.,4X2

main87908-50761-J1i201609-201708

DEEP BLUE MC.,8X5

main87908-50760-A0supersedes 87908-50710-A0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87908-50760-B0supersedes 87908-50710-B0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,MERCURY GRAY MC.,1H9

main87908-50760-B1supersedes 87908-50710-B1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SONIC SILVER,1J2

main87908-50760-C0supersedes 87908-50710-C0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,212

main87908-50760-C1supersedes 87908-50710-C1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87908-50760-C2supersedes 87908-50710-C2i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,STARLIGHT BLACK GF.,217

main87908-50760-D0supersedes 87908-50710-D0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,RED MC.CS.,3R1

main87908-50760-E0supersedes 87908-50710-E0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SLEEK ECRU ME.,4U7

main87908-50760-E1supersedes 87908-50710-E1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,FIRE AGATE M.M.,4V3

main87908-50760-J0supersedes 87908-50710-J0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,LAPIS LAZULI MC.,8V3

main87908-50761-A0i201410-201509

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077

main87908-50761-A2i201509-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085

main87908-50761-C1i201307-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87908-50761-C2i201307-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,STARLIGHT BLACK GF.,217

main87908-50761-E1supersedes 87908-50711-E1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-50711-B0supersedes 87909-50661-B0i201609-201708

MERCURY GRAY MC.,1H9

main87909-50711-B1supersedes 87909-50661-B1i201609-201708

SONIC SILVER,1J2

main87909-50711-B2supersedes 87909-50661-B2i201609-201708

SONIC TITANIUM,1J7

main87909-50711-C0supersedes 87909-50661-C0i201609-201708

BLACK,212

main87909-50711-C3i201609-201708

GRAPHITE BLACK GF.,223

main87909-50711-D0supersedes 87909-50661-D0i201609-201708

RED MC.CS.,3R1

main87909-50711-E0supersedes 87909-50661-E0i201609-201708

SLEEK ECRU ME.,4U7

main87909-50711-E2i201609-201708

AMBER CS.,4X2

main87909-50711-J1i201609-201708

DEEP BLUE MC.,8X5

main87909-50710-A0supersedes 87909-50660-A0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87909-50710-B0supersedes 87909-50660-B0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,MERCURY GRAY MC.,1H9

main87909-50710-B1supersedes 87909-50660-B1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SONIC SILVER,1J2

main87909-50710-C0supersedes 87909-50660-C0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,212

main87909-50710-C1supersedes 87909-50660-C1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87909-50710-C2supersedes 87909-50660-C2i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,STARLIGHT BLACK GF.,217

main87909-50710-D0supersedes 87909-50660-D0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,RED MC.CS.,3R1

main87909-50710-E0supersedes 87909-50660-E0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SLEEK ECRU ME.,4U7

main87909-50710-E1supersedes 87909-50660-E1i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,FIRE AGATE M.M.,4V3

main87909-50710-J0supersedes 87909-50660-J0i201209-201307

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,LAPIS LAZULI MC.,8V3

main87909-50711-A0i201307-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87909-50711-A2i201509-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085

main87909-50711-C1supersedes 87909-50661-C1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214

main87909-50711-C2supersedes 87909-50661-C2i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217

main87909-50711-E1supersedes 87909-50661-E1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50801-A2i201609-201708

SONIC QUARTZ,085

main87910-50801-B0i201609-201708

MERCURY GRAY MC.,1H9

main87910-50801-B1i201609-201708

SONIC SILVER,1J2

main87910-50801-B2i201609-201708

SONIC TITANIUM,1J7

main87910-50801-C0i201609-201708

BLACK,212

main87910-50801-C3i201609-201708

GRAPHITE BLACK GF.,223

main87910-50801-D0i201609-201708

RED MC.CS.,3R1

main87910-50801-E0i201609-201708

SLEEK ECRU ME.,4U7

main87910-50801-E2i201609-201708

AMBER CS.,4X2

main87910-50801-J0i201609-201708

DEEP BLUE MC.,8X5

main87910-50750-A0supersedes 87910-50690-A0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87910-50750-B0supersedes 87910-50690-B0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,MERCURY GRAY MC.,1H9

main87910-50750-B1supersedes 87910-50690-B1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SONIC SILVER,1J2

main87910-50750-C0supersedes 87910-50690-C0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,212

main87910-50750-C1supersedes 87910-50690-C1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87910-50750-C2supersedes 87910-50690-C2i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,STARLIGHT BLACK GF.,217

main87910-50750-D0supersedes 87910-50690-D0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,RED MC.CS.,3R1

main87910-50750-E0supersedes 87910-50690-E0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SLEEK ECRU ME.,4U7

main87910-50750-E1supersedes 87910-50690-E1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,FIRE AGATE M.M.,4V3

main87910-50750-J0supersedes 87910-50690-J0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,LAPIS LAZULI MC.,8V3

main87910-50751-A0supersedes 87910-50691-A0i201307-201509

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077

main87910-50751-A2supersedes 87910-50691-A2i201509-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085

main87910-50751-B0i201307-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,MERCURY GRAY MC.,1H9

main87910-50751-B1supersedes 87910-50691-B1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2

main87910-50751-B2supersedes 87910-50691-B2i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7

main87910-50751-C0supersedes 87910-50691-C0i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK,212

main87910-50751-C1supersedes 87910-50691-C1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214

main87910-50751-C2supersedes 87910-50691-C2i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217

main87910-50751-D0i201307-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,RED MC.CS.,3R1

main87910-50751-E0supersedes 87910-50691-E0i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7

main87910-50751-E1supersedes 87910-50691-E1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3

main87910-50801-A0i201410-201509

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077

main87910-50801-C1i201309-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87910-50801-C2i201410-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217

main87910-50801-E1i201410-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3

87915COVER, OUTER MIRROR, RH

main8791A-50710-A0i201209-201509

WHITE PEARL CS.,077

main8791A-50710-B0i201209-201708

MERCURY GRAY MC.,1H9

main8791A-50710-B1i201209-201708

SONIC SILVER,1J2

main8791A-50710-B2i201307-201708

SONIC TITANIUM,1J7

main8791A-50710-C0i201209-201708

BLACK,212

main8791A-50710-C1i201209-201609

BLACK OPAL MC.,214

main8791A-50710-C2i201209-201609

STARLIGHT BLACK GF.,217

main8791A-50710-C3i201609-201708

GRAPHITE BLACK GF.,223

main8791A-50710-D0i201209-201708

RED MC.CS.,3R1

main8791A-50710-E0i201209-201708

SLEEK ECRU ME.,4U7

main8791A-50710-E1i201209-201609

FIRE AGATE M.M.,4V3

main8791A-50710-E2i201609-201708

AMBER CS.,4X2

main8791A-50710-J0i201209-201307

LAPIS LAZULI MC.,8V3

main8791A-50710-J1i201609-201708

DEEP BLUE MC.,8X5

main8791A-50710-A2i201509-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085

87917CSCREW, OUTER MIRROR

main87917-50700×10i201209

87931OUTER MIRROR, RH

main87931-30E20i201609

main87931-33B40i201209-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50751-A2i201609-201708

SONIC QUARTZ,085

main87940-50751-B0i201609-201708

MERCURY GRAY MC.,1H9

main87940-50751-B1i201609-201708

SONIC SILVER,1J2

main87940-50751-B2i201609-201708

SONIC TITANIUM,1J7

main87940-50751-C0i201609-201708

BLACK,212

main87940-50751-C3i201609-201708

GRAPHITE BLACK GF.,223

main87940-50751-D0i201609-201708

RED MC.CS.,3R1

main87940-50751-E0i201609-201708

SLEEK ECRU ME.,4U7

main87940-50751-E2i201609-201708

AMBER CS.,4X2

main87940-50751-J0i201609-201708

DEEP BLUE MC.,8X5

main87940-50700-A0supersedes 87940-50640-A0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87940-50700-B0supersedes 87940-50640-B0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,MERCURY GRAY MC.,1H9

main87940-50700-B1supersedes 87940-50640-B1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SONIC SILVER,1J2

main87940-50700-C0supersedes 87940-50640-C0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK,212; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,212

main87940-50700-C1supersedes 87940-50640-C1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87940-50700-C2supersedes 87940-50640-C2i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,STARLIGHT BLACK GF.,217

main87940-50700-D0supersedes 87940-50640-D0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,RED MC.CS.,3R1

main87940-50700-E0supersedes 87940-50640-E0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,SLEEK ECRU ME.,4U7

main87940-50700-E1supersedes 87940-50640-E1i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,FIRE AGATE M.M.,4V3

main87940-50700-J0supersedes 87940-50640-J0i201209-201306

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3; KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,LAPIS LAZULI MC.,8V3

main87940-50701-A0supersedes 87940-50641-A0i201307-201509

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077

main87940-50701-A2supersedes 87940-50641-A2i201509-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085

main87940-50701-B0supersedes 87940-50641-B0i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9

main87940-50701-B1supersedes 87940-50641-B1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC SILVER,1J2

main87940-50701-B2supersedes 87940-50641-B2i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7

main87940-50701-C0i201307-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,212

main87940-50701-C1supersedes 87940-50641-C1i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),BLACK OPAL MC.,214

main87940-50701-C2supersedes 87940-50641-C2i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217

main87940-50701-D0supersedes 87940-50641-D0i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1

main87940-50701-E0supersedes 87940-50641-E0i201307-201609

BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7

main87940-50701-E1i201307-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,FIRE AGATE M.M.,4V3

main87940-50751-A0i201309-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,WHITE PEARL CS.,077

main87940-50751-C1i201309-201410

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH,BLACK OPAL MC.,214

main87940-50751-C2i201410-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217

main87940-50751-E1i201410-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),FIRE AGATE M.M.,4V3

87945COVER, OUTER MIRROR, LH

main8794A-50660-A0i201209-201509

WHITE PEARL CS.,077

main8794A-50660-B0i201209-201708

MERCURY GRAY MC.,1H9

main8794A-50660-B1i201209-201708

SONIC SILVER,1J2

main8794A-50660-B2i201307-201708

SONIC TITANIUM,1J7

main8794A-50660-C0i201209-201708

BLACK,212

main8794A-50660-C1i201209-201609

BLACK OPAL MC.,214

main8794A-50660-C2i201209-201609

STARLIGHT BLACK GF.,217

main8794A-50660-C3i201609-201708

GRAPHITE BLACK GF.,223

main8794A-50660-D0i201209-201708

RED MC.CS.,3R1

main8794A-50660-E0i201209-201708

SLEEK ECRU ME.,4U7

main8794A-50660-E1i201209-201609

FIRE AGATE M.M.,4V3

main8794A-50660-E2i201609-201708

AMBER CS.,4X2

main8794A-50660-J0i201209-201307

LAPIS LAZULI MC.,8V3

main8794A-50660-J1i201609-201708

DEEP BLUE MC.,8X5

main8794A-50660-A2i201509-201609

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT),SONIQ QUARTZ,085

87961MIRROR OUTER, LH

main87961-30F00i201609-201708

main87961-33B30i201209-201309

KOREA SPEC&BLIND SPOT MONITOR SYSTEM-WITH

9017906146

main90179-06146

12 parts on this diagram · 1 diagram in section
