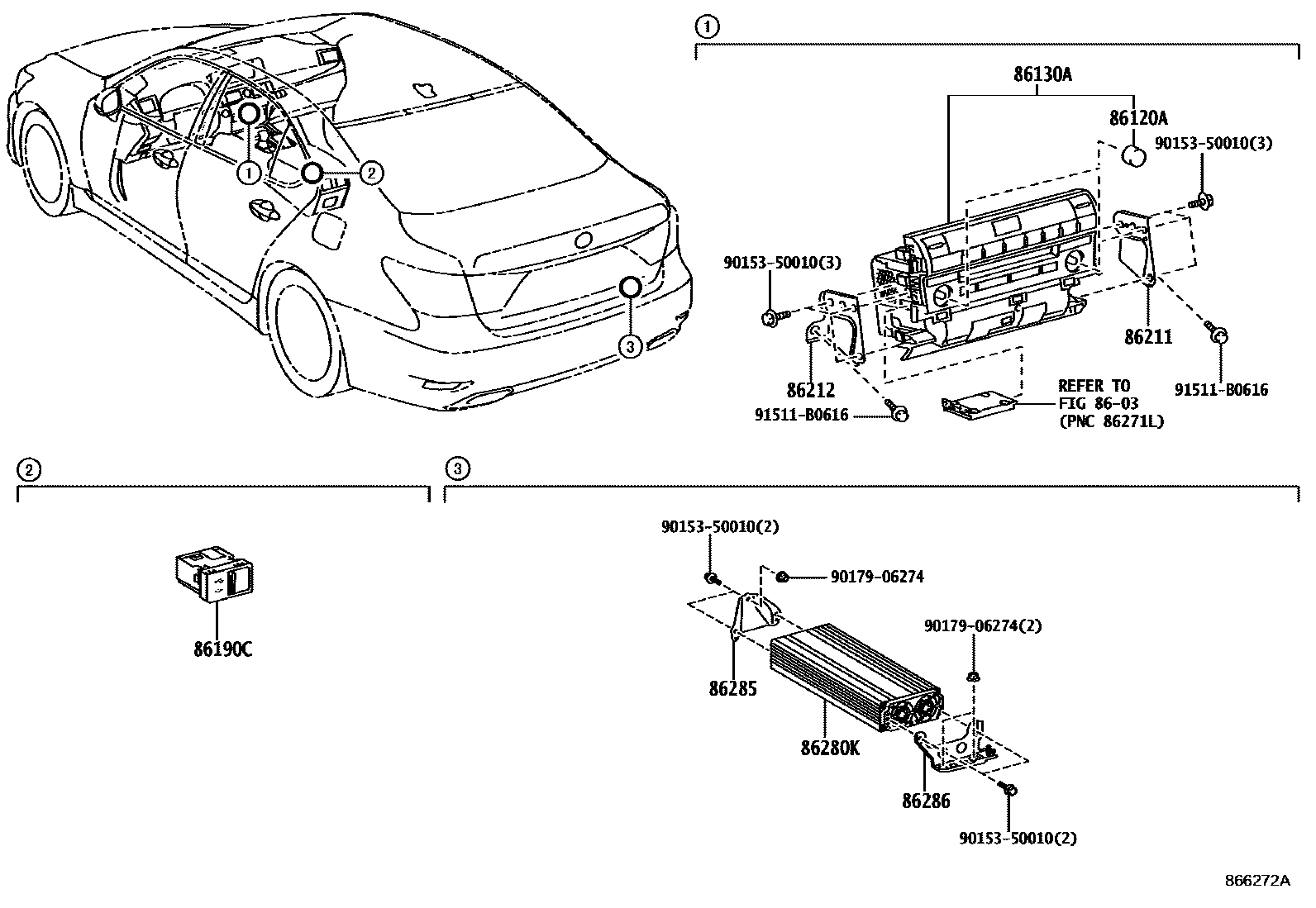

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22095×2i201209-201408

main90010-22108×2i201410-201708

86130ARECEIVER ASSY, MULTI-MEDIA MODULE

main86130-50B40i201609-201708

FUJITSU TEN,ID100724

main86130-50340supersedes 86804-50720i201410-201509

FUJITSU TEN,ID100464,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86130-50410i201410-201509

PIONEER,ID=P10888,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86130-50C20i201509-201609

PIONEER,ID=P11217,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86130-50E70supersedes 86804-50B40i201509-201609

FUJITSU TEN,ID100601,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50040supersedes 86804-50060i201209-201309

PIONEER,ID=P10334,CANADA SPEC&MAYDAY SYSTEM-WITHOUT

main86804-50060i201209-201309

PIONEER,ID=P10330; PIONEER,ID=P10330,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); PIONEER,ID=P10330,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50070supersedes 86804-50060i201209-201309

PIONEER,ID=P10332,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)&MAYDAY SYSTEM-WITHOUT

main86804-50080supersedes 86804-50060i201209-201309

PIONEER,ID=P10343,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)&MAYDAY SYSTEM-WITHOUT

main86804-50390supersedes 86804-50400i201309-201410

PIONEER,ID=P10599,CANADA SPEC

main86804-50400i201309-201410

PIONEER,ID=P10607; PIONEER,ID=P10607,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); PIONEER,ID=P10607,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50410supersedes 86804-50400i201309-201410

PIONEER,ID=P10593,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50420supersedes 86804-50400i201309-201410

PIONEER,ID=P10591,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50710supersedes 86804-50720i201410-201509

PIONEER,ID=P10862,CANADA SPEC

main86804-50720i201410-201509

PIONEER,ID=P10870; PIONEER,ID=P10870,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); PIONEER,ID=P10870,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86804-50B20supersedes 86804-50B40i201509-201609

PIONEER,ID=P11196,CANADA SPEC

main86804-50B40i201509-201609

PIONEER,ID=P11202; PIONEER,ID=P11202,KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); PIONEER,ID=P11202,USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-30030i201209-201410

main86190-53051i201410

86211BRACKET, RADIO, NO.1

main86211-50080i201209-201708

86212BRACKET, RADIO, NO.2

main86212-50080i201209-201708

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-0W870i201410-201509

main86280-0WA90i201209-201410

main86280-0WE10i201509

86285BRACKET, AMPLIFIER, NO.1
