WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR 0007 1ROOF & FRAME & LUGGAGE & FUEL0008 1HIGH VOLTAGE CABLE 0009 1FRONT SEAT 0010 1REAR SEAT 0011 1CLAMP & BRACKET 0012 1CABLE BOND 0013 1CONNECTOR 1/2 0014 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-50R70iUVF46201209-201301

main82111-50R71iUVF46201301-201309

main82111-50R72iUVF46201309-201609

main82111-50R83iUVF46201609

82112WIRE, ENGINE ROOM, NO.2

main82112-50460iUVF46201209

82113WIRE, ENGINE ROOM, NO.3

main82113-50050iUVF46201209

82114WIRE, ENGINE ROOM, NO.4

main82114-50050iUVF46201209-201708

82130HARNESS ASSY, CHASSIS WIRE

main82130-50030iUVF46201209

82212AHARNESS, AIR CONDITIONER

main82212-50072iUVF46201209-201708

82213BWIRE, HEATER

main82213-50020iUVF46201209

NO.2

main82213-50032iUVF46201209

NO.1

82666AHOLDER, CONNECTOR NO.2

main82666-50570iUVF46201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-50B30iUVF46201209

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-50D40iUVF46201209

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-50B50iUVF46201209

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-50B60iUVF46201209

82824DCONNECTOR, WIRING HARNESS

main82824-30130iUVF46201209

82824ECONNECTOR, WIRING HARNESS

main82824-30170iUVF46201209

82824FCONNECTOR, WIRING HARNESS

main82824-48020iUVF46201209

82824GCONNECTOR, WIRING HARNESS

main82824-50110iUVF46201209

82824HCONNECTOR, WIRING HARNESS

main82824-50350iUVF46201209

82824JCONNECTOR, WIRING HARNESS

main82824-52280iUVF46201209

82824MCONNECTOR, WIRING HARNESS

main82824-52290iUVF46201209

82824XCONNECTOR, WIRING HARNESS

main82824-50300iUVF46201209

8417

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9011906915

main90119-06915

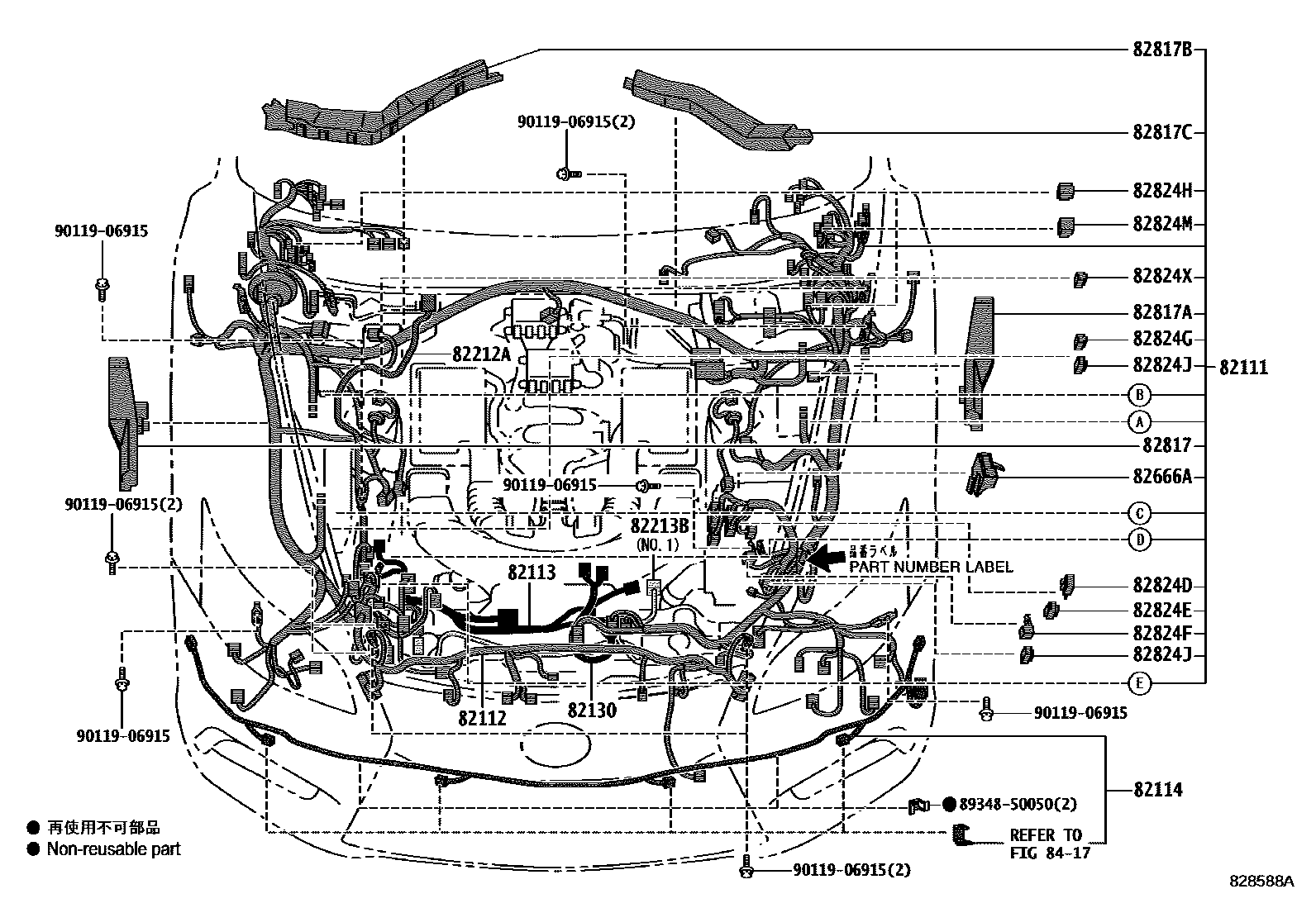

23 parts on this diagram · 14 diagrams in section
