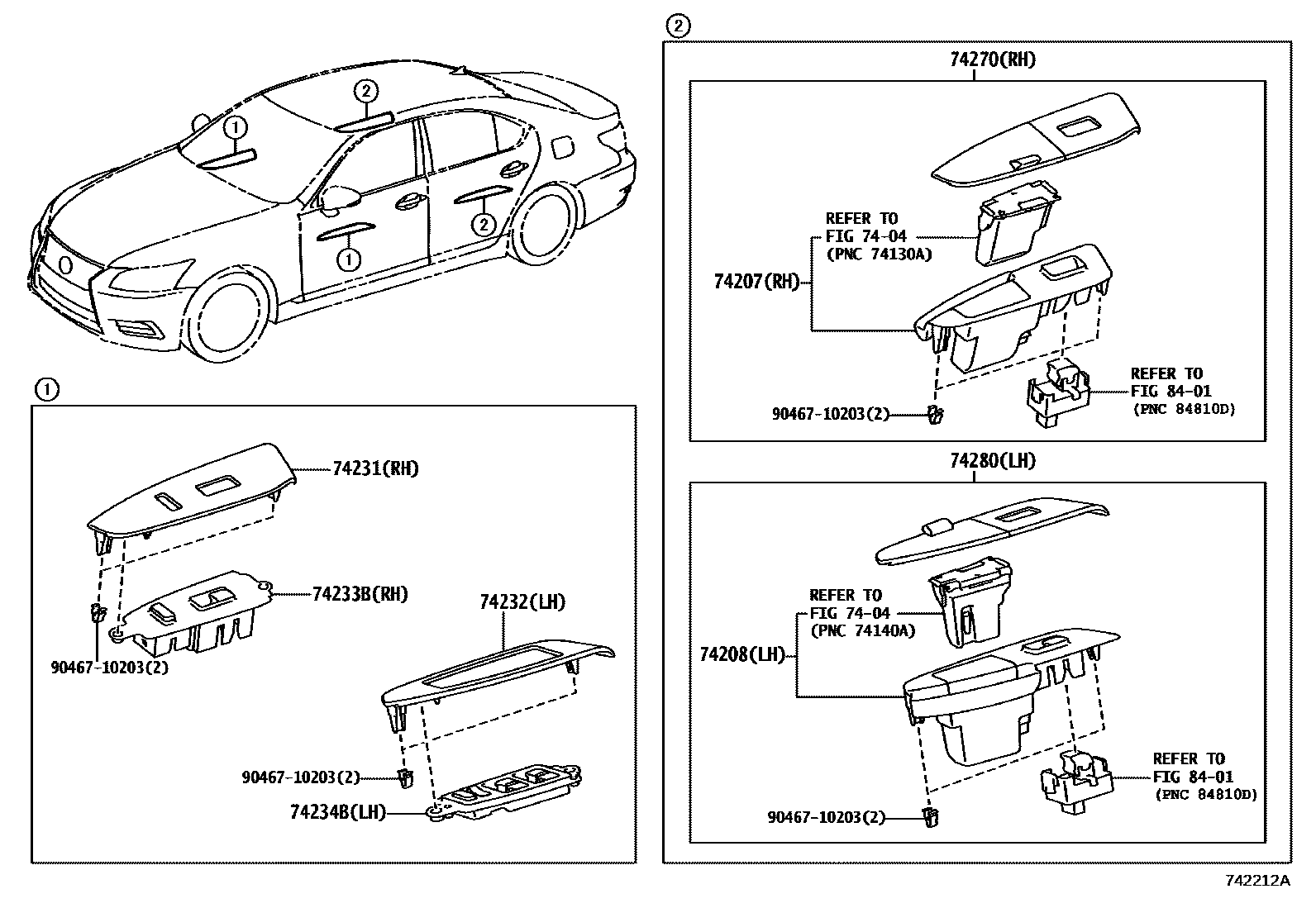

ARMREST & VISOR
7404ASH RECEPTACLE
74207PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH
ASH TRAY-W(REAR DOOR : 2)
74208PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH
ASH TRAY-W(REAR DOOR : 2)
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM10,20,23,40,50,51
BROWN,TRIM01,10,20,40,41,50
DK.BROWN,TRIM01,20,50
NATURAL BROWN,TRIM01,04,10,20,24,50
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK,TRIM1#,23,51
BROWN,TRIM4#
DK.BROWN,TRIM01,20,50
NATURAL BROWN,TRIM04,24
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
ASH TRAY-W(REAR DOOR : 2),BLACK,TRIM10,20,23,40,50,51
ASH TRAY-W(REAR DOOR : 2),DK.BROWN,TRIM01,20,50
ASH TRAY-W(REAR DOOR : 2),BROWN,TRIM01,10,20,40,41,50
ASH TRAY-W(REAR DOOR : 2),NATURAL BROWN,TRIM01,04,10,20,24,50
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
ASH TRAY-W(REAR DOOR : 2),BLACK,TRIM10,20,23,40,50,51
ASH TRAY-W(REAR DOOR : 2),DK.BROWN,TRIM01,20,50
ASH TRAY-W(REAR DOOR : 2),BROWN,TRIM01,10,20,40,41,50
ASH TRAY-W(REAR DOOR : 2),NATURAL BROWN,TRIM01,04,10,20,24,50
8401SWITCH & RELAY & COMPUTER
9046710203
main90467-10203
11 parts on this diagram · 2 diagrams in section
