FRONT SEAT & SEAT TRACK

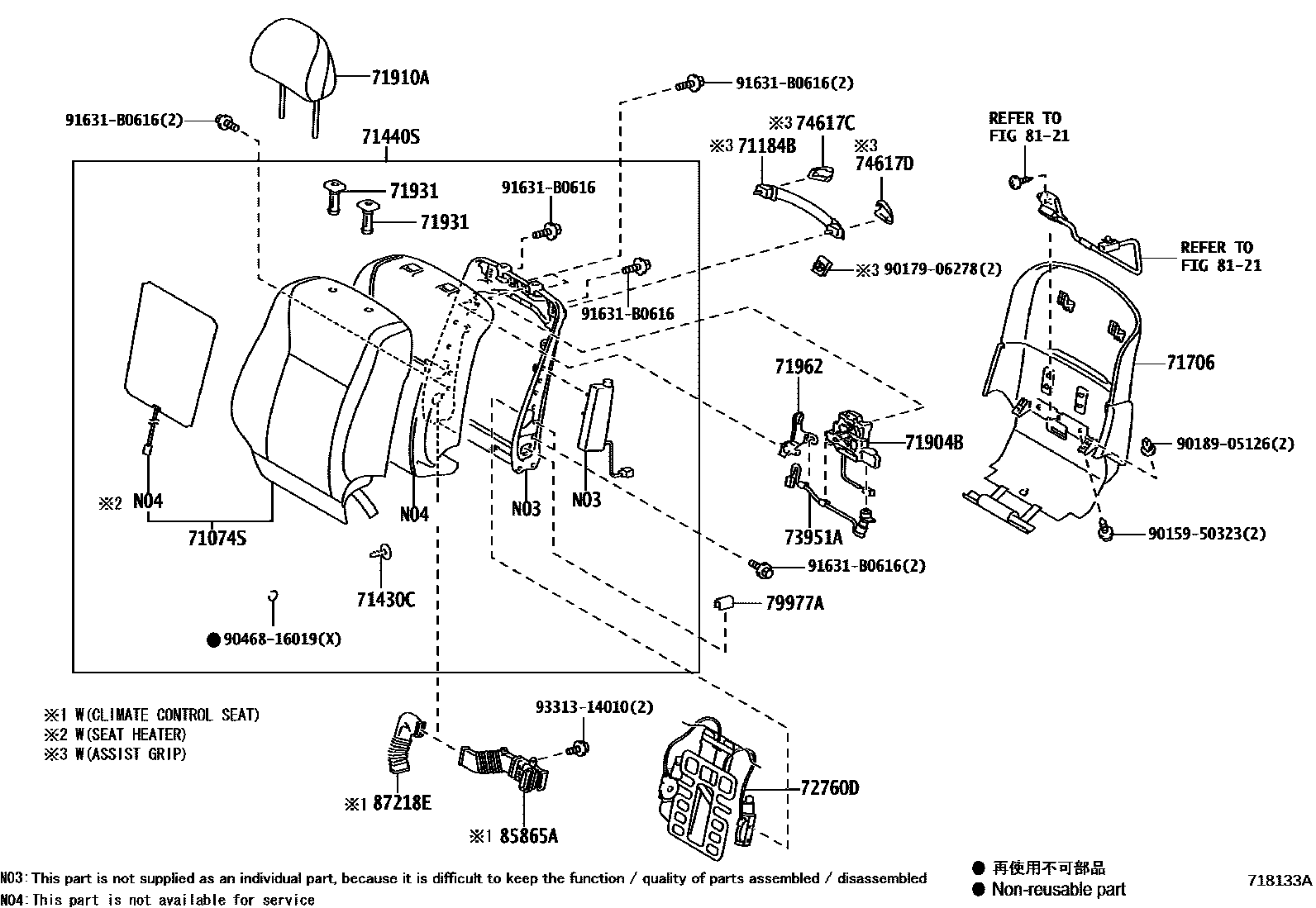

Parts diagram
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-50G21-A7supersedes 71074-50G71-A4i201609-201708
IVORY/IVORY,TRIM0#
main71074-50G21-B4supersedes 71074-50G71-B4i201609-201708
LT.GRAY/DK.GRAY,TRIM1#
main71074-50G21-C6supersedes 71074-50G71-C6i201609-201708
BLACK/GRAY,TRIM2#
main71074-50G21-C7supersedes 71074-50G71-C7i201609-201708
BLACK/S TAN/BLACK/S TAN,TRIM4#
main71074-50G21-F4supersedes 71074-50G71-F4i201609-201708
TOPAZ BROWN/IVORY,TRIM5#
main71074-50G20-A7supersedes 71074-50G70-A4i201209-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#
main71074-50G20-B4supersedes 71074-50G70-B4i201209-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#
main71074-50G20-C6supersedes 71074-50G70-C6i201209-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#
main71074-50G20-C7supersedes 71074-50G70-C7i201209-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#
main71074-50G20-F4supersedes 71074-50G70-F4i201209-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#
71184BSUPPORT, FRONT SEATBACK, LH
main71026-50010-A6i201609-201708
IVORY/IVORY,TRIM0#
main71026-50010-C1i201609-201708
BLACK/BLACK,TRIM1#,2#,4#,5#
71430CCLIP
main90467-05161-C0×4i201209-201708
BLACK
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-50M81-A1supersedes 71440-50M11-A0i201609-201708
IVORY/IVORY,TRIM0#
main71440-50M81-B0supersedes 71440-50M11-B0i201609-201708
LT.GRAY/DK.GRAY,TRIM1#
main71440-50M81-C0supersedes 71440-50M11-C0i201609-201705
BLACK/GRAY,TRIM2#
main71440-50M81-E0supersedes 71440-50M11-E0i201609-201705
BLACK/SADDLE TAN,TRIM4#
main71440-50M81-F0supersedes 71440-50M11-F0i201609-201705
TOPAZ BROWN/IVORY,TRIM5#
main71440-50M11-A0supersedes 71440-50M10-A5i201407-201409
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY,TRIM0#
main71440-50M11-B0supersedes 71440-50M10-B5i201407-201409
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY,TRIM1#
main71440-50M11-C0supersedes 71440-50M81-C1i201407-201409
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK,TRIM2#
main71440-50M11-E0supersedes 71440-50M81-E1i201407-201409
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#
main71440-50M11-F0supersedes 71440-50M81-F1i201407-201409
CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN(IVORY),TRIM5#
main71440-50M80-02supersedes 71440-50M10-A5i201407-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#
main71440-50M80-A7supersedes 71440-50M10-A5i201209-201407
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#
main71440-50M80-B4supersedes 71440-50M10-B5i201209-201407
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#
main71440-50M80-B6supersedes 71440-50M10-B5i201407-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#
main71440-50M80-C2supersedes 71440-50M81-C1i201209-201407
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#
main71440-50M80-C4supersedes 71440-50M81-C1i201407-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#
main71440-50M80-E4supersedes 71440-50M81-E1i201209-201407
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#
main71440-50M80-E6supersedes 71440-50M81-E1i201407-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLETAN/SADDLETAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLETAN/SADDLETAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLETAN/SADDLETAN,TRIM4#
main71440-50M80-F4supersedes 71440-50M81-F1i201209-201407
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#
main71440-50M80-F6supersedes 71440-50M81-F1i201407-201409
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-50020-A5supersedes 71706-50010-A6i201609-201708
IVORY,TRIM0#
main71706-50020-C1supersedes 71706-50010-C1i201609-201708
BLACK,TRIM1#,2#,4#,5#
71904BADJUSTER SUB-ASSY, FRONT SEAT HEADREST
main71904-50200i201209
71910AHEADREST ASSY, FRONT SEAT
main71910-50A20-A6supersedes 71910-50C30-A0i201209-201412
IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#,LH SEAT
main71910-50A20-B3supersedes 71910-50C30-B0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; LT.GRAY/DK.GRAY,TRIM1#
main71910-50A20-C6supersedes 71910-50C30-C0i201209-201412
BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#,LH SEAT
main71910-50A20-C7supersedes 71910-50C30-C1i201209-201412
BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#,LH SEAT
main71910-50A20-F4supersedes 71910-50C30-F0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#,LH SEAT; TOPAZ BROWN/IVORY,TRIM5#
main71910-50A30-A8supersedes 71910-50C30-A0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#,RH SEAT
main71910-50A30-B4supersedes 71910-50C30-B0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT
main71910-50A30-C8supersedes 71910-50C30-C0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#,RH SEAT
main71910-50A30-C9supersedes 71910-50C30-C1i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#,RH SEAT
main71910-50A30-F5supersedes 71910-50C30-F0i201209-201412
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#,RH SEAT
main71910-50C20-A0supersedes 71910-50C30-A0i201412-201609
IVORY/IVORY,TRIM0#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#,LH SEAT
main71910-50C20-B0supersedes 71910-50C30-B0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#,LH SEAT; LT.GRAY/DK.GRAY,TRIM1#
main71910-50C20-C0supersedes 71910-50C30-C0i201412-201609
BLACK/GRAY,TRIM2#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#,LH SEAT
main71910-50C20-C1supersedes 71910-50C30-C1i201412-201609
BLACK/SADDLE TAN,TRIM4#; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#,LH SEAT
main71910-50C20-F0supersedes 71910-50C30-F0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#,LH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#,LH SEAT; TOPAZ BROWN/IVORY,TRIM5#
main71910-50C30-A0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY/IVORY,TRIM0#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY/IVORY,TRIM0#,RH SEAT
main71910-50C30-B0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),LT.GRAY/DK.GRAY,TRIM1#,RH SEAT
main71910-50C30-C0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/GRAY,TRIM2#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/GRAY,TRIM2#,RH SEAT
main71910-50C30-C1i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK/SADDLE TAN,TRIM4#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK/SADDLE TAN,TRIM4#,RH SEAT
main71910-50C30-F0i201412-201609
KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZ BROWN/IVORY,TRIM5#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),TOPAZBROWN/IVORY,TRIM5#,RH SEAT; KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),TOPAZ BROWN/IVORY,TRIM5#,RH SEAT
71931SUPPORT, FRONT SEAT HEADREST
main71931-50060-A3×2i201609-201708
W/O(LOCK),IVORY,TRIM0#
main71931-50060-B0×2i201609-201708
W/O(LOCK),LT.GRAY,TRIM1#
main71931-50060-C0×2i201609-201705
W/O(LOCK),BLACK,TRIM2#,4#,5#
main71931-50060-C2×2i201705-201708
W/O(LOCK),BLACK,TRIM2#,4#,5#
71962BRACKET, FRONT SEAT HEADREST
main71962-50020i201609
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-50090i201209
73951AINFLATOR, ACTIVE HEADREST
main73951-50020i201609
74617CPLUG, ASSIST GRIP
main74617-50020-A2×2i201609-201708
IVORY,TRIM0#
main74617-50020-C0×2i201609-201708
BLACK,TRIM1#,2#,4#,5#
74617DPLUG, ASSIST GRIP
main74618-50020-A2×2i201609-201708
IVORY,TRIM0#
main74618-50020-C0×2i201609-201708
BLACK,TRIM1#,2#,4#,5#
79977AFELT, SEATBACK
main79977-50010×2i201209
8121INTERIOR LAMP
→ Go to FIG 81-21
85865CONTROLLER, SEAT CLIMATE CONTROL,LH
main85865-50110i201209
85865ACONTROLLER, SEAT CLIMATE CONTROL, LH
main85865-50150i201209-201708
87218EDUCT, AIR, RR NO.6
main87218-50050i201209
9015950323
main90159-50323
9017906278
main90179-06278
9018905126
main90189-05126
9046816019
main90468-16019
91631B0616
main91631-B0616
9331314010
main93313-14010

24 parts on this diagram · 6 diagrams in section
