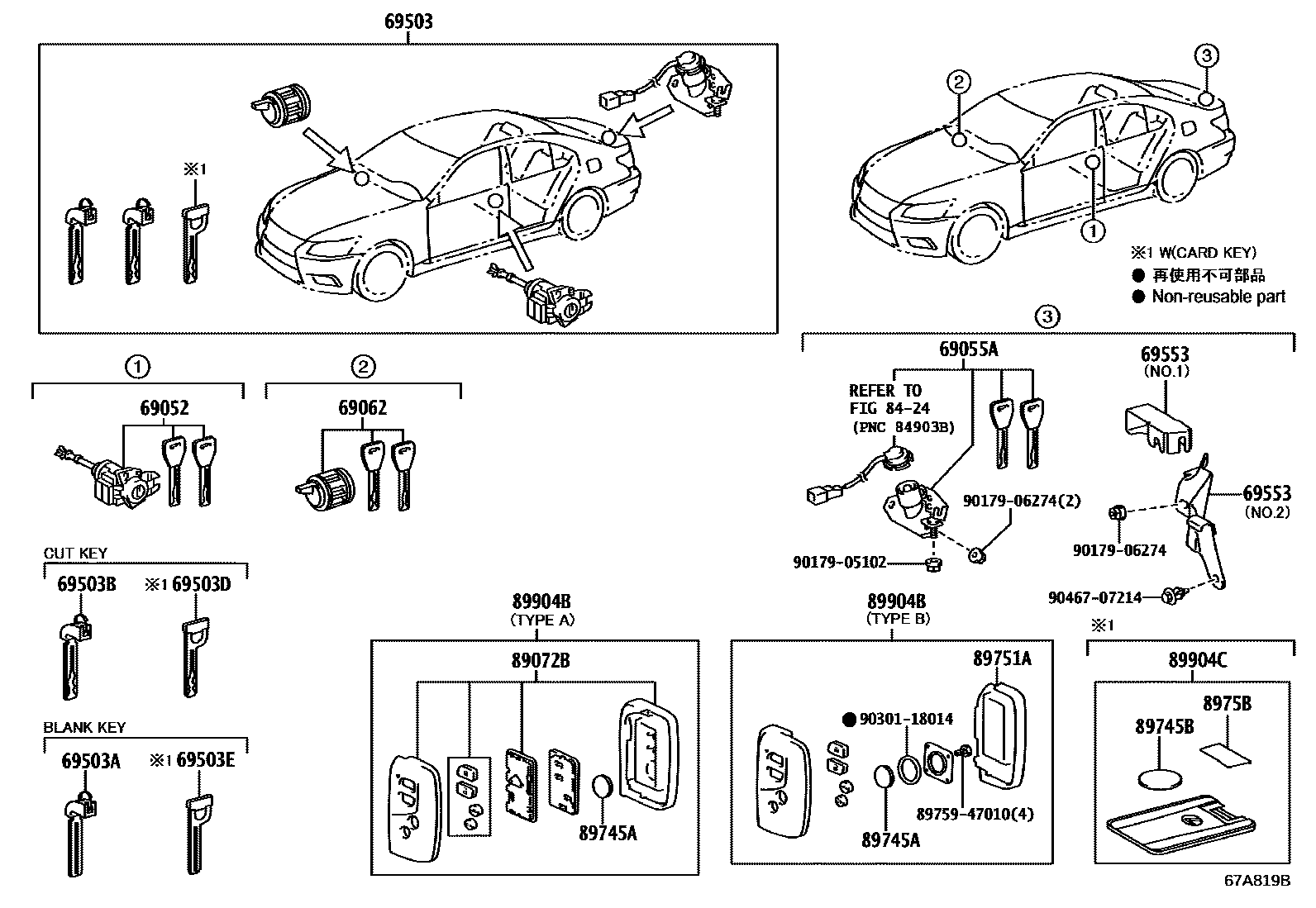

Toyota LEXUS LS600HL — LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
69503BKEY, CUT
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
8424ANTI-THEFT DEVICE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745ABATTERY, TRANSMITTER
89745BBATTERY, TRANSMITTER(CARD KEY)
89751ACOVER, TRANSMITTER HOUSING
8975BCOVER, TRANSMITTER BATTERY HOUSING
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
8975947010SCREW, DOOR CONTROL TRANSMITTER
9017905102
9017906274
9030118014
9046707214
22 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota LEXUS LS600HL
This section contains 22 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota LEXUS LS600HL. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER SET, LOCK, KEY, BLANK.
