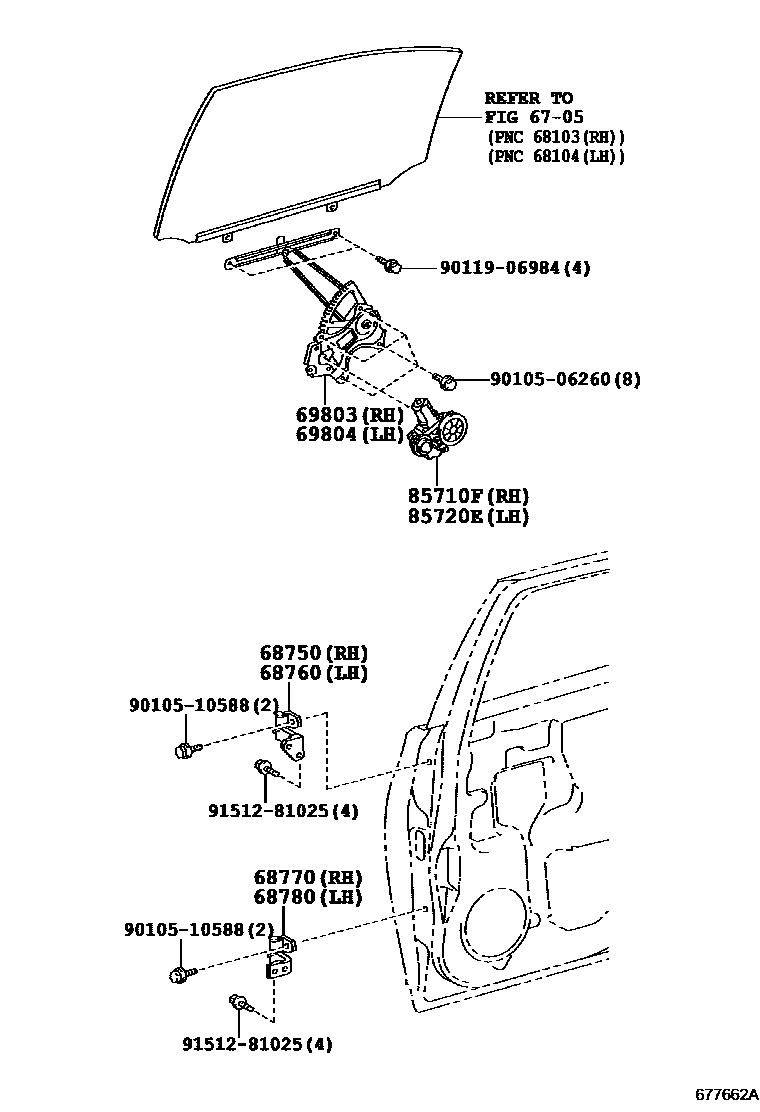

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68730-30180iUVF46201209

68760HINGE ASSY, REAR DOOR, UPPER LH

main68740-30080iUVF46201209

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30140iUVF46201209

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30150iUVF46201209

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-50040iUVF46201209

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-50040iUVF46201209

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50113iUVF46201209-201211

main85710-50114iUVF46201212-201509

main85710-50121iUVF46201509-201605

main85710-50122iUVF46201606

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50113iUVF46201209-201211

main85720-50114iUVF46201212-201509

main85720-50121iUVF46201509-201605

main85720-50122iUVF46201606

9010506260

main90105-06260

9010510588

main90105-10588

9011906984

main90119-06984

9151281025

main91512-81025

13 parts on this diagram · 1 diagram in section
