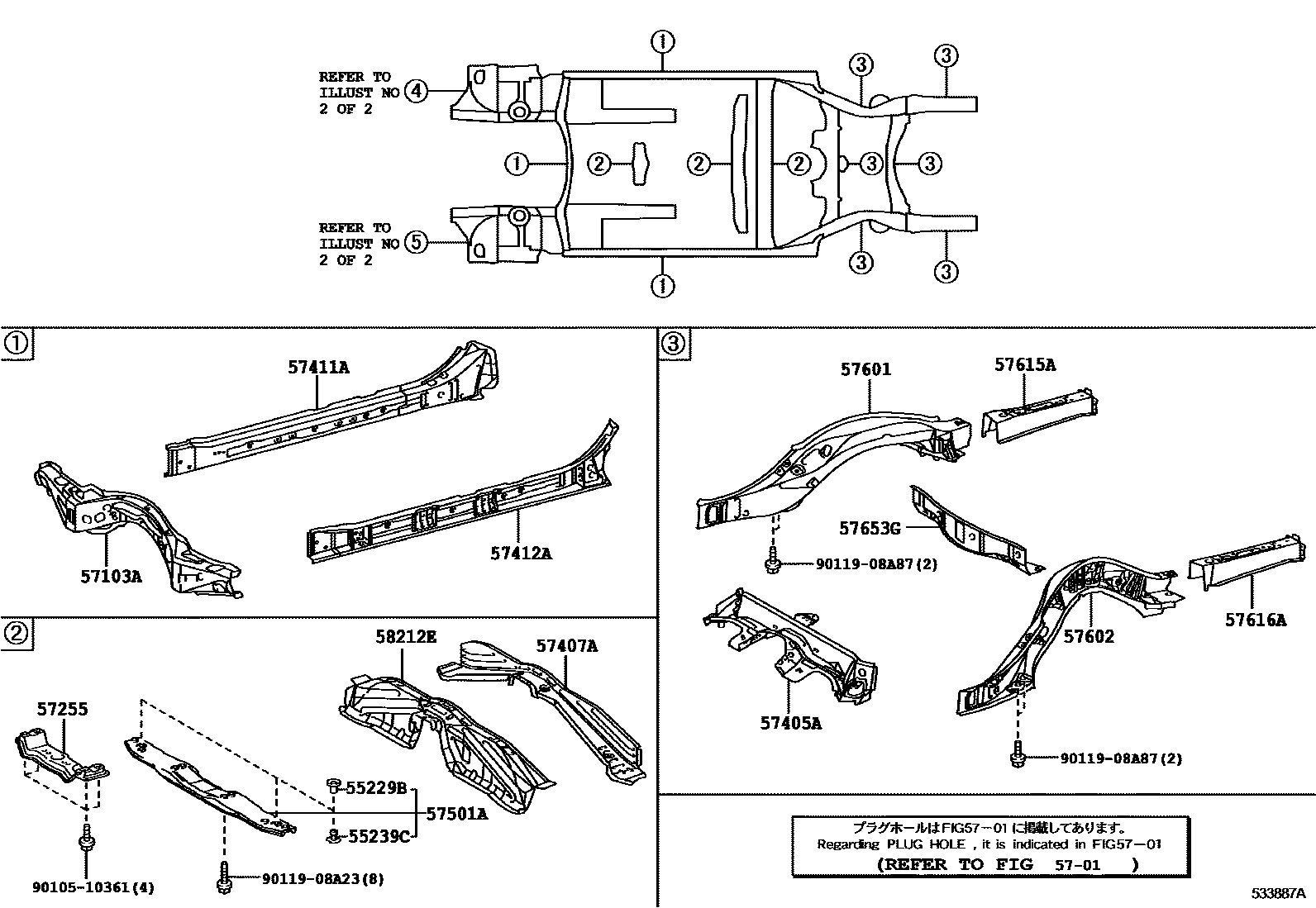

FLOOR SIDE MEMBER

0001 1 0002 1

55229BPLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×2iUVF46201209

55239CPLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×2iUVF46201209

5701HOLE PLUG

→ Go to FIG 57-01

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50050iUVF46201209

57255MEMBER, ENGINE REAR MOUNTING

main57209-50010iUVF46201209

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50020iUVF46201209-201708

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50060iUVF46201209-201708

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50071iUVF46201209

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50061iUVF46201209

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-50020iUVF46201209

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50908iUVF46201209-201706

main57601-50910iUVF46201706

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50908iUVF46201209-201509

main57602-50910iUVF46201509-201706

main57602-50912iUVF46201706

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50906iUVF46201209-201612

main57615-50907iUVF46201612

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50906iUVF46201209-201612

main57616-50907iUVF46201612

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50040iUVF46201209-201708

58212EPAN, CENTER FLOOR, FRONT

main58202-50020iUVF46201209-201611

main58202-50021iUVF46201612-201708

9010510361

main90105-10361

9011908A23

main90119-08A23

9011908A87

main90119-08A87

19 parts on this diagram · 2 diagrams in section
