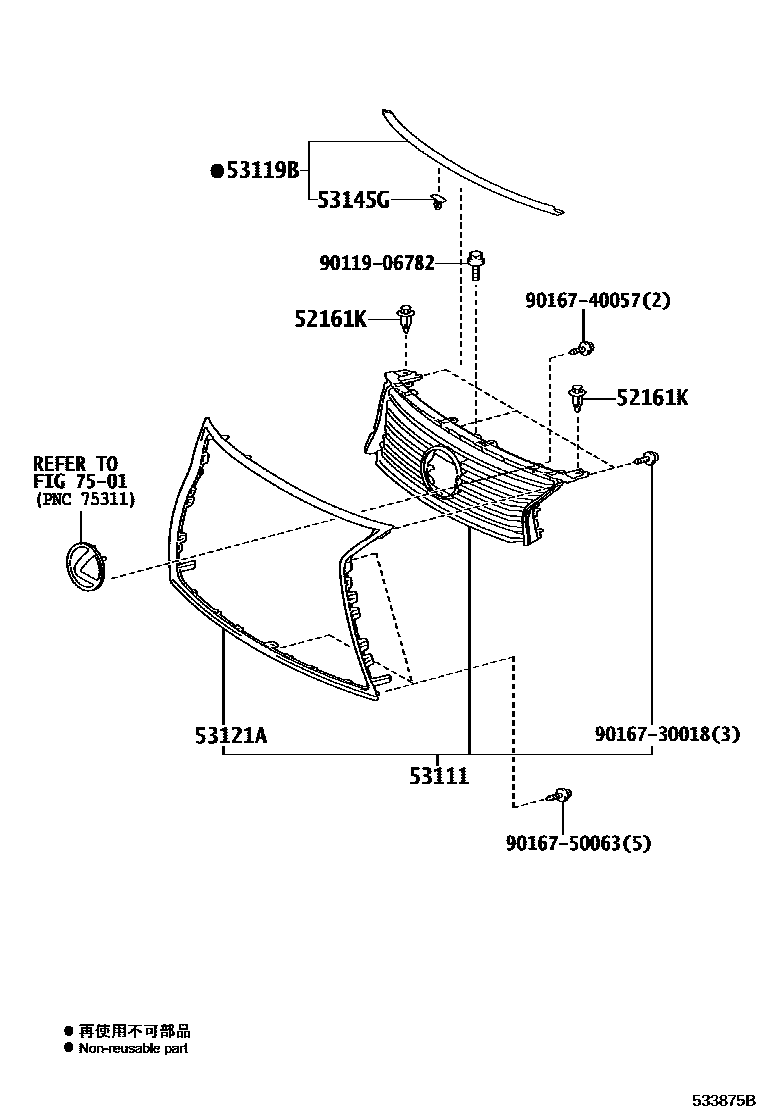

RADIATOR GRILLE

52161KPIECE, FRONT BUMPER

main52161-16010×2iUVF46201209

53111GRILLE, RADIATOR

main53100-50500iUVF46201209-201409

PLATED

main53100-50501iUVF46201410-201708

PLATED

53119BPROTECTOR, RADIATOR GRILLE

main53119-50060iUVF46201209

53121AMOULDING, RADIATOR GRILLE

main53121-50030iUVF46201209

53145GCLIP, RADIATOR GRILLE

main53145-60030×11iUVF46201209

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906782

main90119-06782

9016730018

main90167-30018

9016740057

main90167-40057

9016750063

main90167-50063

10 parts on this diagram · 1 diagram in section
