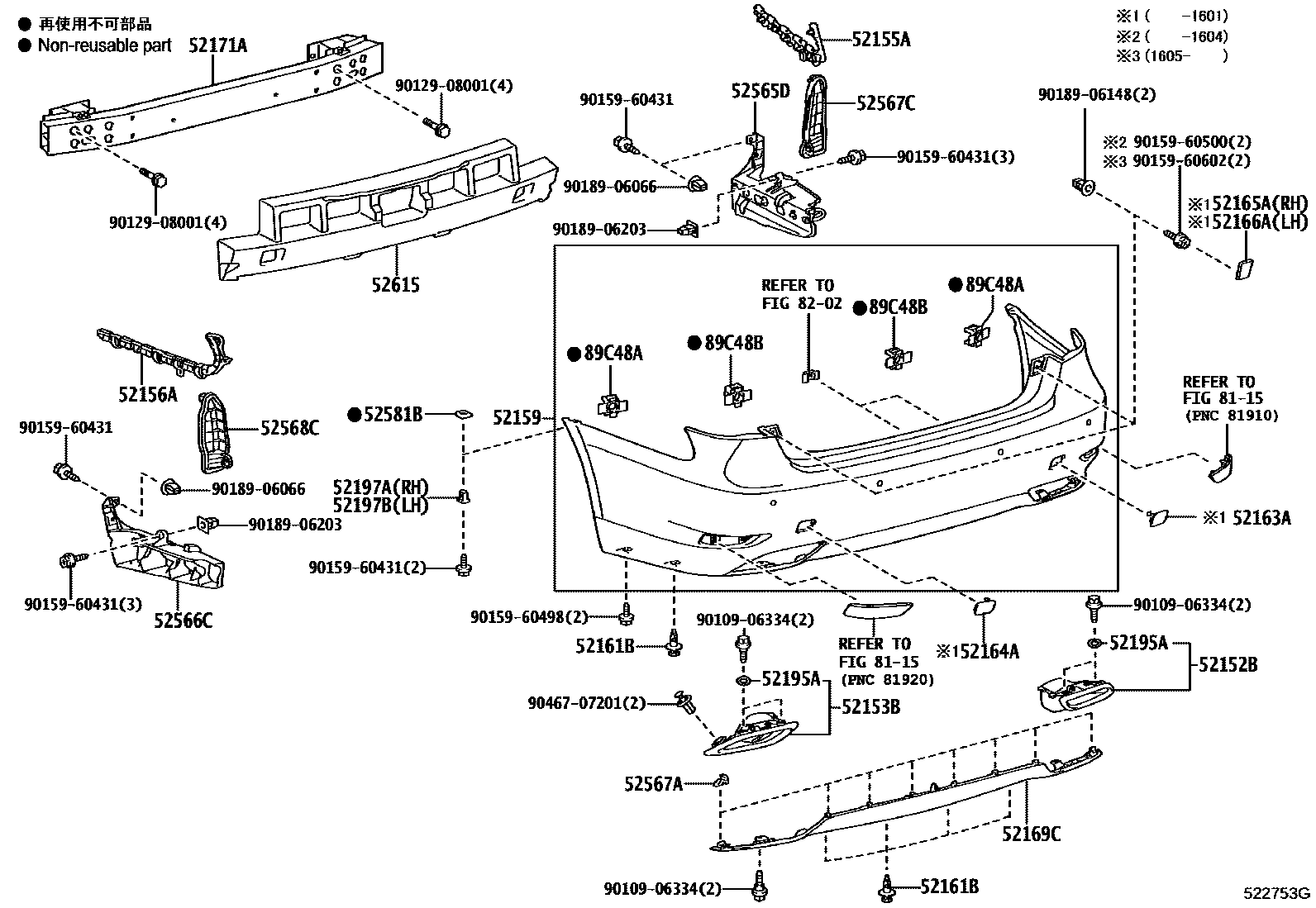

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171AREINFORCEMENT, REAR BUMPER, NO.1
52195ASPACER, REAR BUMPER EXTENSION
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52567ARETAINER, REAR BUMPER, LOWER SIDE
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52581BPROTECTOR, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
8115REFLEX REFLECTOR
8202WIRING & CLAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9010906334
main90109-06334
9012908001
main90129-08001
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
9046707201
main90467-07201
36 parts on this diagram · 1 diagram in section
