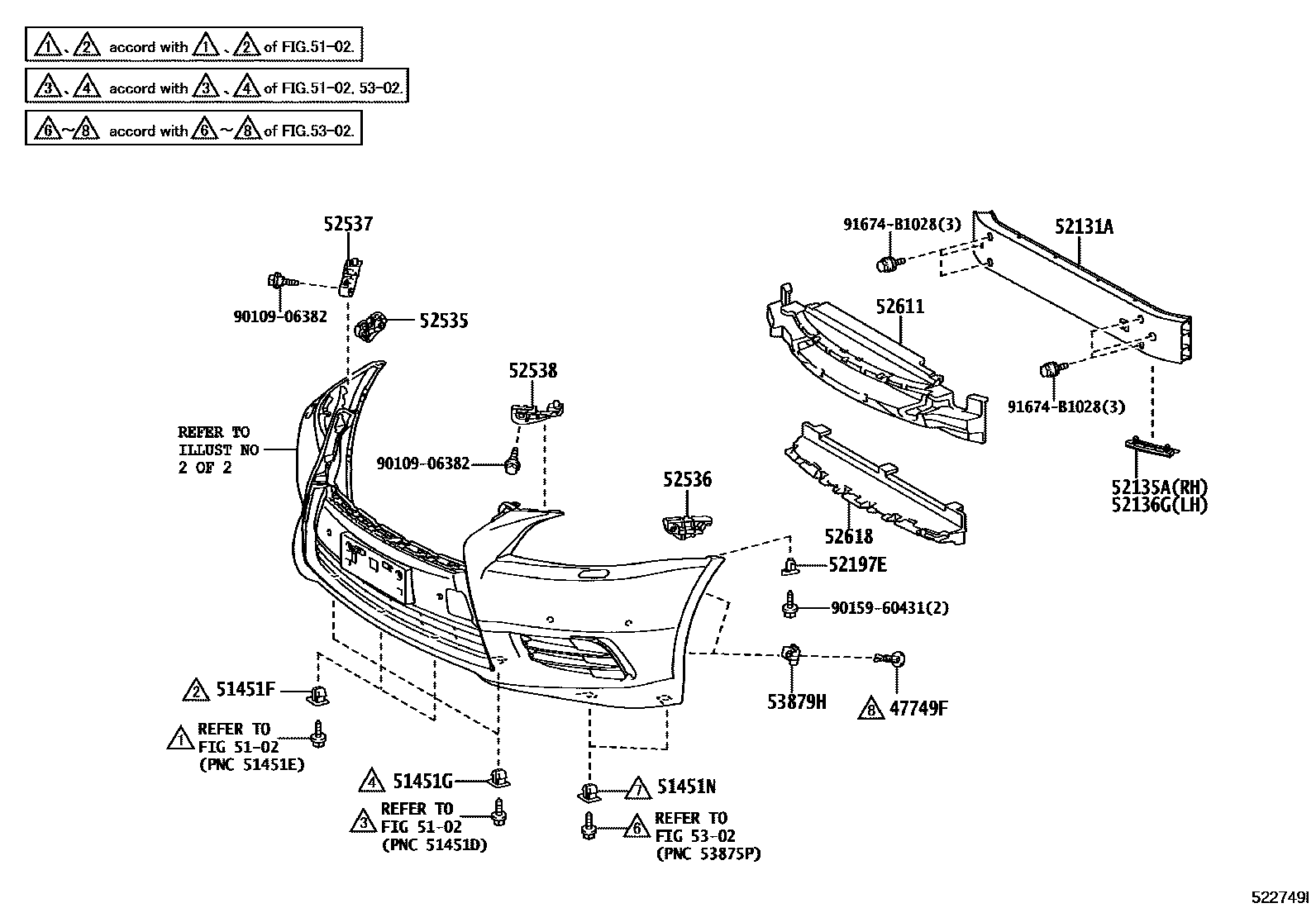

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-50090×4iUVF46201209-201708

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06193×2iUVF46201209-201708

51451GGROMMET, NO.2

main90189-06193×2iUVF46201209-201708

51451NGROMMET, NO.3

main90189-06193×4iUVF46201209-201708

52131AREINFORCEMENT, FRONT BUMPER

main52131-50092iUVF46201209

52135AREINFORCEMENT, EXTENSION FRONT BUMPER, RH

main52135-50040iUVF46201209-201708

52136GREINFORCEMENT, EXTENSION FRONT BUMPER, LH

main52136-50010iUVF46201209-201708

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040×2iUVF46201209

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50090iUVF46201209

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50080iUVF46201209

52537RETAINER, FRONT BUMPER END, RH

main52537-50040iUVF46201209

52538RETAINER, FRONT BUMPER END, LH

main52538-50030iUVF46201209

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50150iUVF46201209

52618ABSORBER, FRONT BUMPER, LOWER

main52614-50040iUVF46201209

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-50020×4iUVF46201209

9010906382

main90109-06382

9015960431

main90159-60431

91674B1028

main91674-B1028

20 parts on this diagram · 2 diagrams in section
