FRONT SPRING & SHOCK ABSORBER

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50340201209-201312

main48010-50341201401-201708

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011201209

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50340201209-201312

main48020-50341201401-201708

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011201209

48503BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH

main48503-50010201209

48504BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER LH

main48504-50010201209

48534PLATE, FRONT SHOCK ABSORBER UPPER BRACKET

main48534-30010201209

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174201209

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120201209

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120201209

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014201209

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020201209

48811BAR, STABILIZER, FRONT

main48811-50150201209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50220201209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030201209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50060201209

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-50010201209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-50010201209

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010201209

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010201209

9010514164

main90105-14164

9011914092

main90119-14092

91621B0816

main91621-B0816

9415121241

main94151-21241

9415121601

main94151-21601

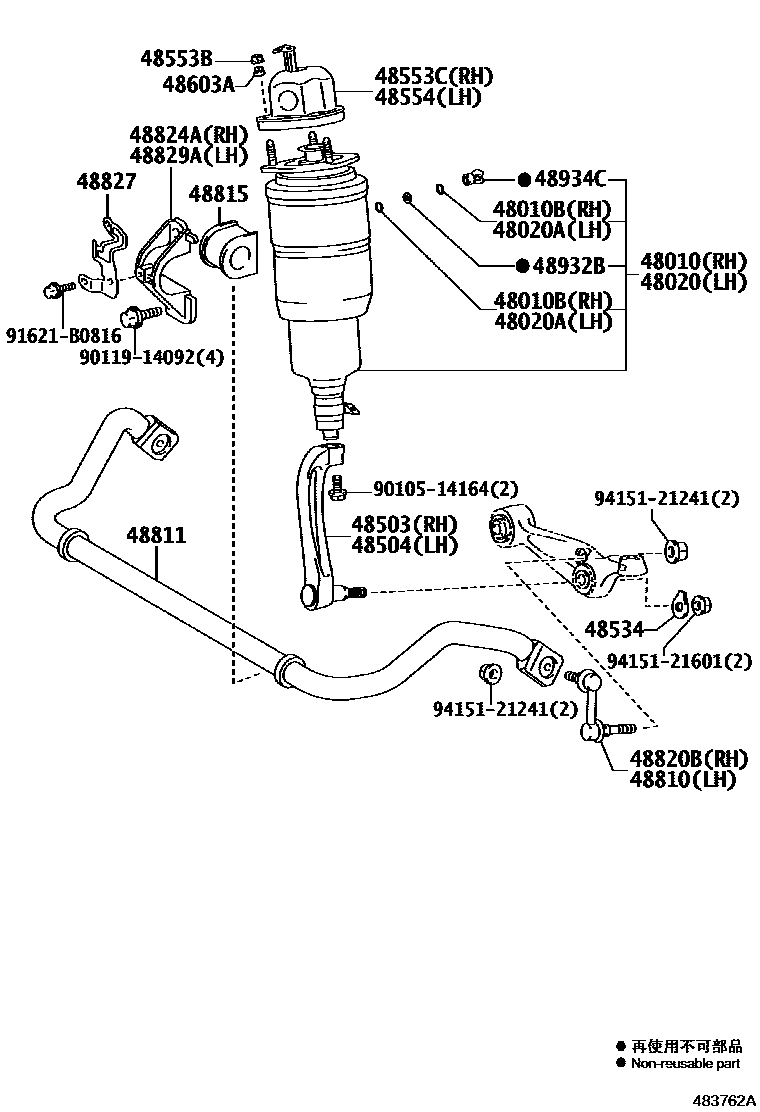

25 parts on this diagram · 1 diagram in section
