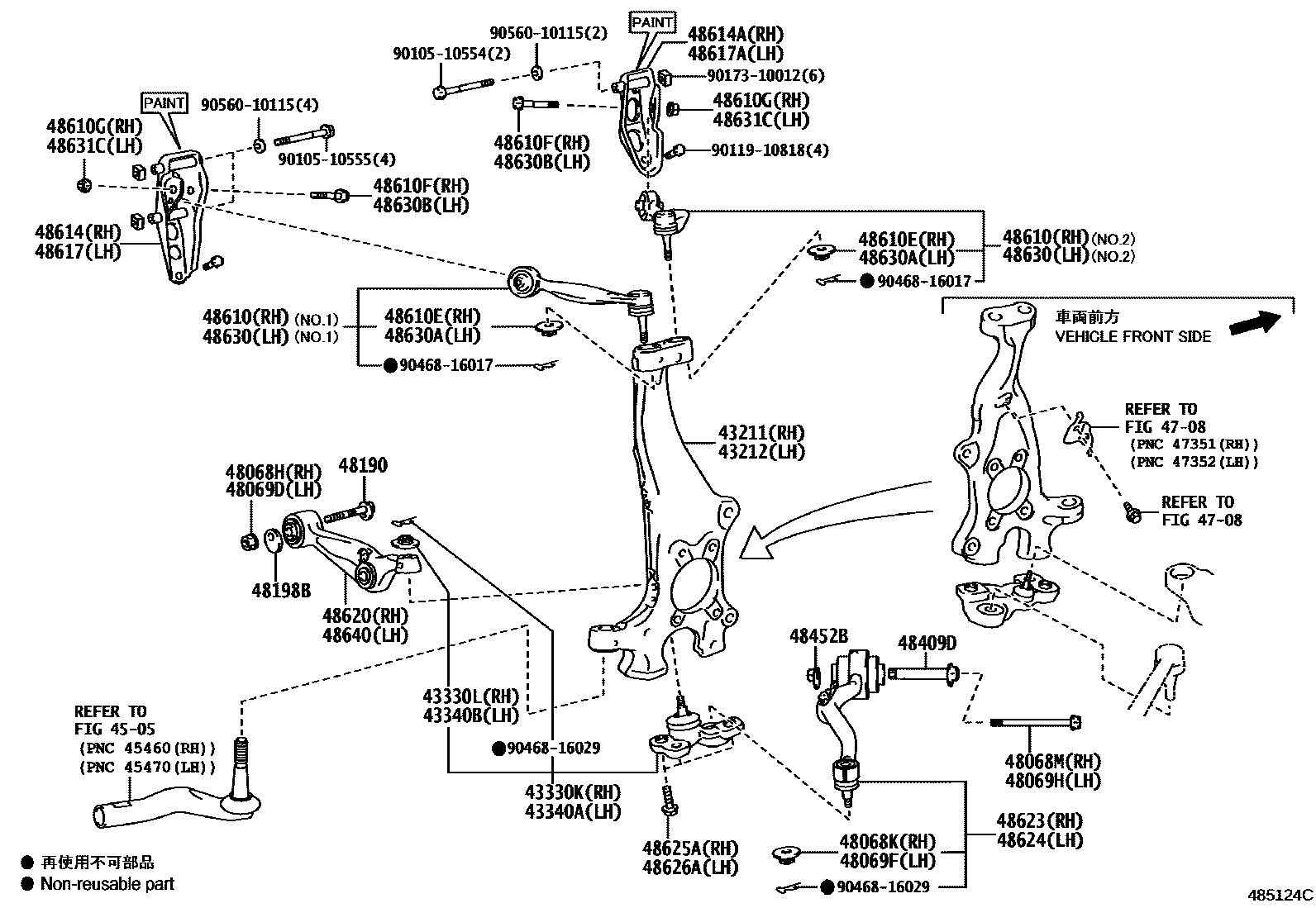

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4505
4708
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48190CAM ASSY, CAMBER ADJUST
48198BCAM, CAMBER ADJUST, NO.2
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
NO.1
NO.2
48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48614PLATE, ARM ATTACHMENT, INNER RH NO.1
YELLOW PAINTED
PINK PAINTED
48614APLATE, ARM ATTACHMENT, INNER RH NO.2
WHITE PAINTED
BLUE PAINTED
48617PLATE, ARM ATTACHMENT, INNER LH NO.1
YELLOW PAINTED
PINK PAINTED
48617APLATE, ARM ATTACHMENT, INNER LH NO.2
WHITE PAINTED
BLUE PAINTED
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48623ARM, FRONT SUSPENSION, LOWER NO.2 RH
48624ARM, FRONT SUSPENSION, LOWER NO.2 LH
48625ABOLT(FOR FRONT LOWER BALL JOINT ATTACHMENT RH)
48626ABOLT(FOR FRONT LOWER BALL JOINT ATTACHMENT LH)
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
NO.1
NO.2
48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
9010510554
main90105-10554
9010510555
main90105-10555
9011910818
main90119-10818
9017310012
main90173-10012
9046816017
main90468-16017
9046816029
main90468-16029
9056010115
main90560-10115
43 parts on this diagram · 1 diagram in section
