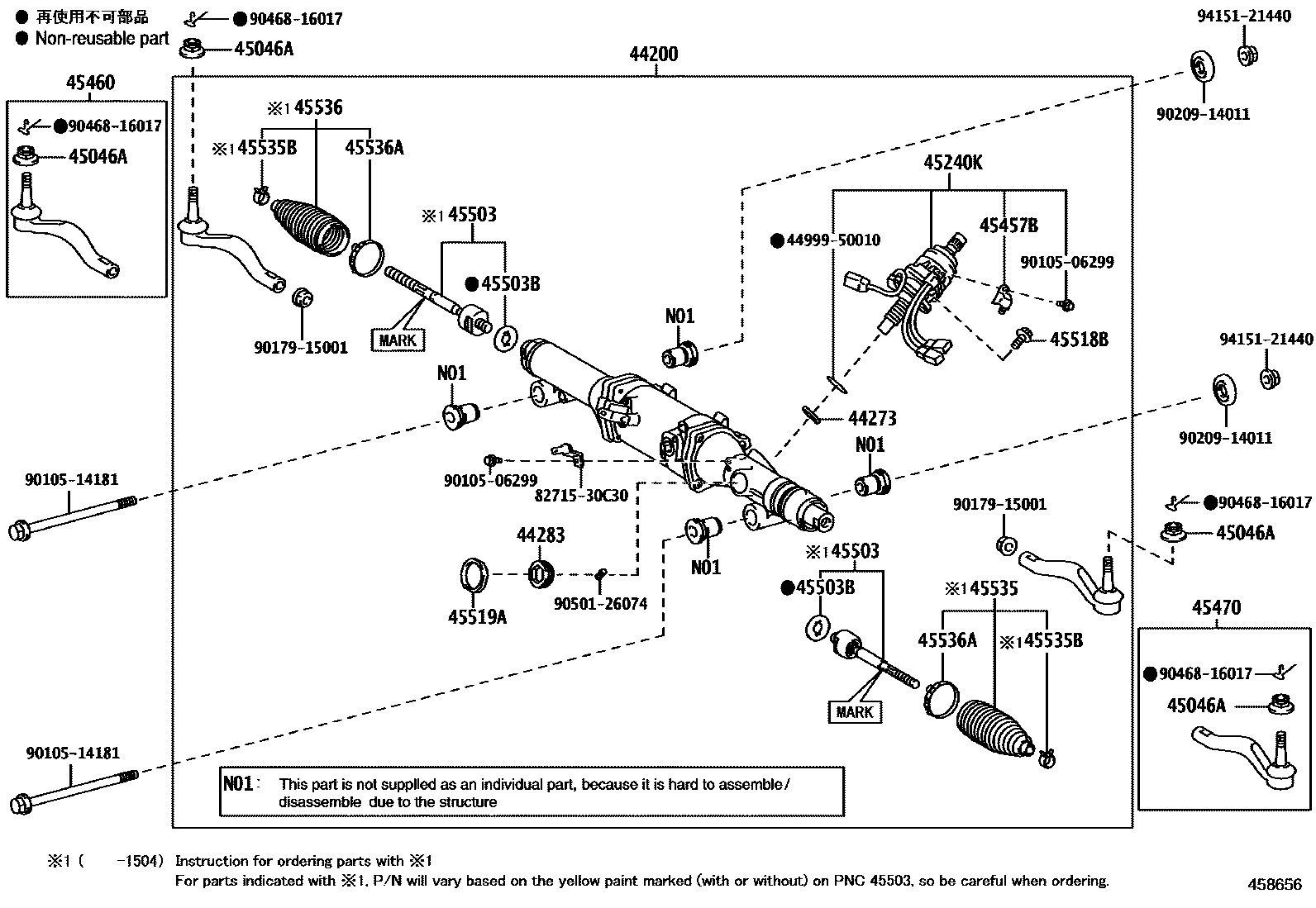

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-50362iUVF46201209

44273PLATE, STEERING SHAFT TORQUE SENSOR

main44273-50010iUVF46201209

44283CAP, RACK HOUSING

main44283-50010iUVF46201209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12012×2iUVF46201209

45240KACTUATOR ASSY, STEERING

main45240-50082iUVF46201209

45457BPROTECTOR, STEERING LINK

main45457-50030iUVF46201209

45460ROD ASSY, TIE, RH

main45460-59095iUVF46201209

45470ROD ASSY, TIE, LH

main45470-59105iUVF46201209

45503END SUB-ASSY, STEERING RACK

main45503-59145×2iUVF46201209

W/O MARK

main45503-59155×2iUVF46201209-201504

MARK=YELLOW

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-16002×2iUVF46201209

OD=42

45518BBOLT, STEERING RACK HOUSING

main45518-50010×2iUVF46201209

45519ANUT, STEERING RACK HOUSING BRACKET

main45519-50010iUVF46201209

45535BOOT, STEERING RACK, NO.1

main45535-29005iUVF46201209-201401

MARK=YELLOW

main45535-59055iUVF46201401-201504

MARK=YELLOW

main45535-59065iUVF46201209

W/O MARK

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iUVF46201209

TYPE B

main90467-19021×2iUVF46201209-201504

TYPE A

45536BOOT, STEERING RACK, NO.2

main45535-29005iUVF46201209-201401

MARK=YELLOW

main45535-59055iUVF46201401-201504

MARK=YELLOW

main45535-59065iUVF46201209

W/O MARK

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iUVF46201209

4499950010ELEMENT, BOOSTER CONTROL VALVE AIR CLEANER

main44999-50010

8271530C30BRACKET,WIRING HARNESS CLAMP

main82715-30C30

9010506299

main90105-06299

9010514181

main90105-14181

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

9050126074

main90501-26074

9415121440

main94151-21440

25 parts on this diagram · 1 diagram in section
