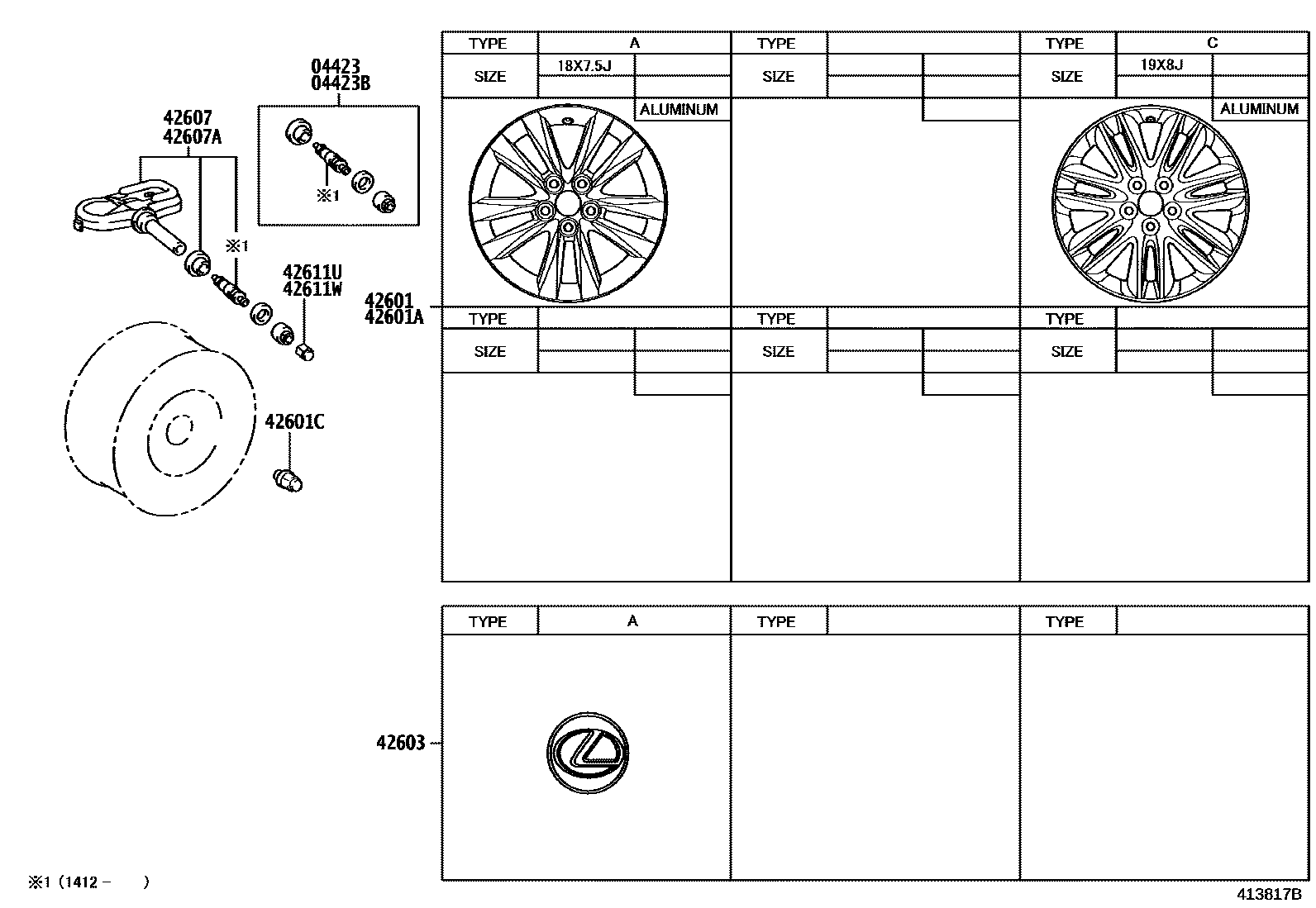

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030×4i201209-201411

main04423-33060×4i201412

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-33030i201209-201411

main04423-33060i201412

42601WHEEL, DISC

main4261A-50161×4i201509

19X8J,*SPR SILVER,TYPE C:REFER ILLUST.

sub4261A-50162

main4261A-50130×4supersedes 4261A-50120i201209-201307

18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.

main4261A-50131×4supersedes 4261A-50121i201308-201509

18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.

sub4261A-50132

main4261A-50160×4supersedes 4261A-50120i201209-201404

19X8J,*SPR SILVER,KOREA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE,TYPE C:REFER ILLUST.

main4261A-50170×4supersedes 4261A-50120i201209-201404

19X8J,#,CANADA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE,TYPE C:REFER ILLUST.

main4261A-50171×4supersedes 4261A-50121i201509-201609

19X8J,#,CANADA SPEC,TYPE C:REFER ILLUST.

sub4261A-50172

42601AWHEEL, DISC (FOR SPARE)

main4261A-50161i201509

19X8J,*SPR SILVER,TYPE C:REFER ILLUST.

sub4261A-50162

main4261A-50130supersedes 4261A-50120i201209-201307

18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.

main4261A-50131supersedes 4261A-50121i201308-201509

18X7.5J,#,CANADA SPEC,TYPE A:REFER ILLUST.

sub4261A-50132

main4261A-50160supersedes 4261A-50120i201209-201404

19X8J,*SPR SILVER,KOREA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE,TYPE C:REFER ILLUST.

main4261A-50170supersedes 4261A-50120i201209-201404

19X8J,#,CANADA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE,TYPE C:REFER ILLUST.

main4261A-50171supersedes 4261A-50121i201509-201609

19X8J,#,CANADA SPEC,TYPE C:REFER ILLUST.

sub4261A-50172

42601CNUT, HUB (FOR AXLE)

main90942-01111×20i201209-201708

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30550×4i201209

*CHR,TYPE A:REFER ILLUST.

sub42603-30551

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30071×4supersedes 42607-30060i201609

main42607-30070×4i201209-201404

KOREA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-30071supersedes 42607-30060i201609

main42607-30070i201209-201404

KOREA SPEC&TIRE & DISC WHEEL-245/45R19 8J ALLSEASON TIRE

42611UCAP, TIRE VALVE

main90942-05042×4i201209

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05042i201209

10 parts on this diagram · 1 diagram in section
