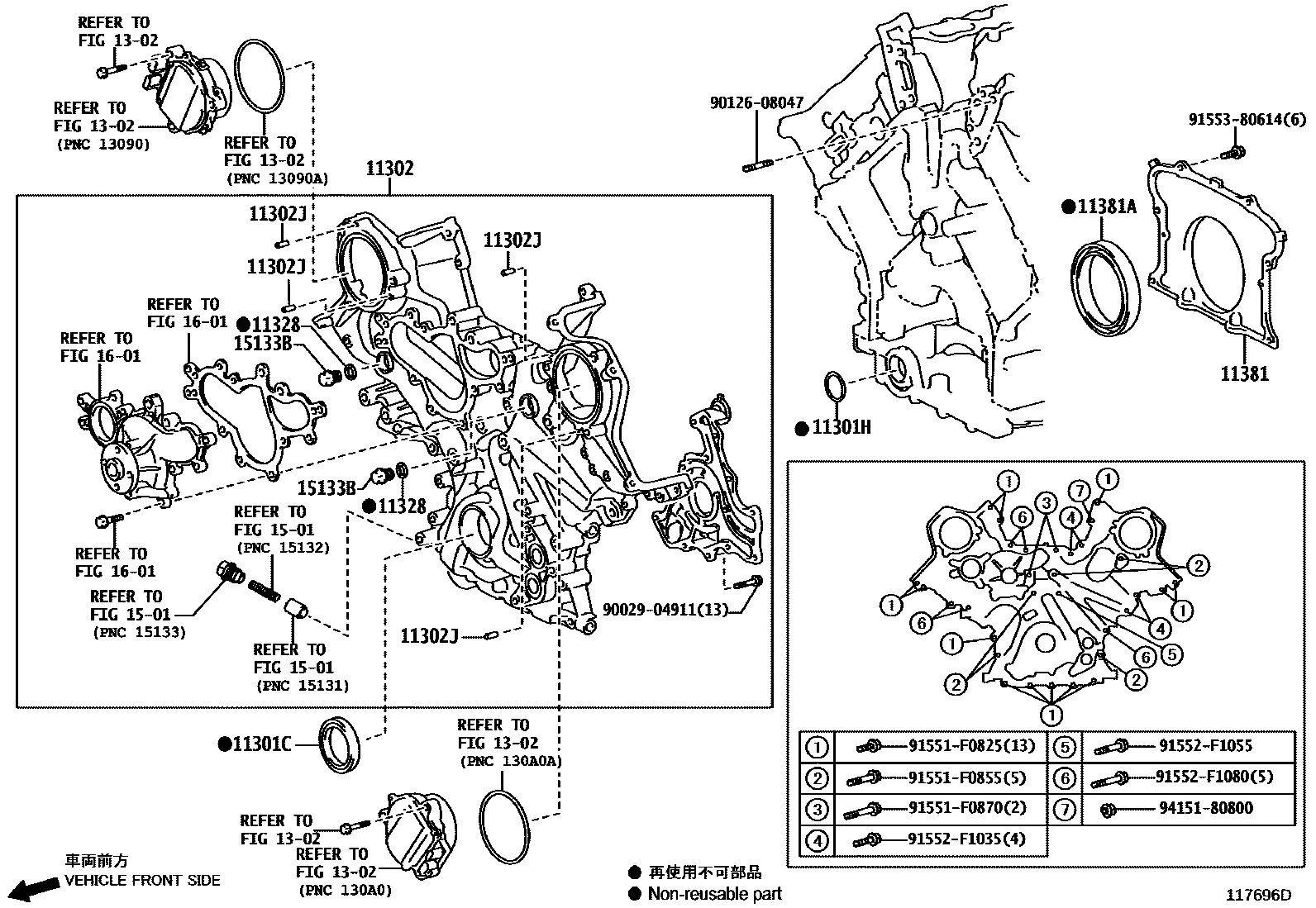

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i2URFSE..UVF46201209

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-35006i2URFSE..UVF46201209

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-38080i2URFSE..UVF46201209

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×4i2URFSE..UVF46201209

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-38030×2i2URFSE..UVF46201209

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38020i2URFSE..UVF46201209

11381ASEAL, ENGINE REAR OIL

main90311-95013i2URFSE..UVF46201209

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071×2i2URFSE..UVF46201209

1601WATER PUMP

→ Go to FIG 16-01

9002904911

main90029-04911

9012608047

main90126-08047

91551F0825

main91551-F0825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

91552F1035

main91552-F1035

91552F1055

main91552-F1055

91552F1080

main91552-F1080

9155380614

main91553-80614

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
