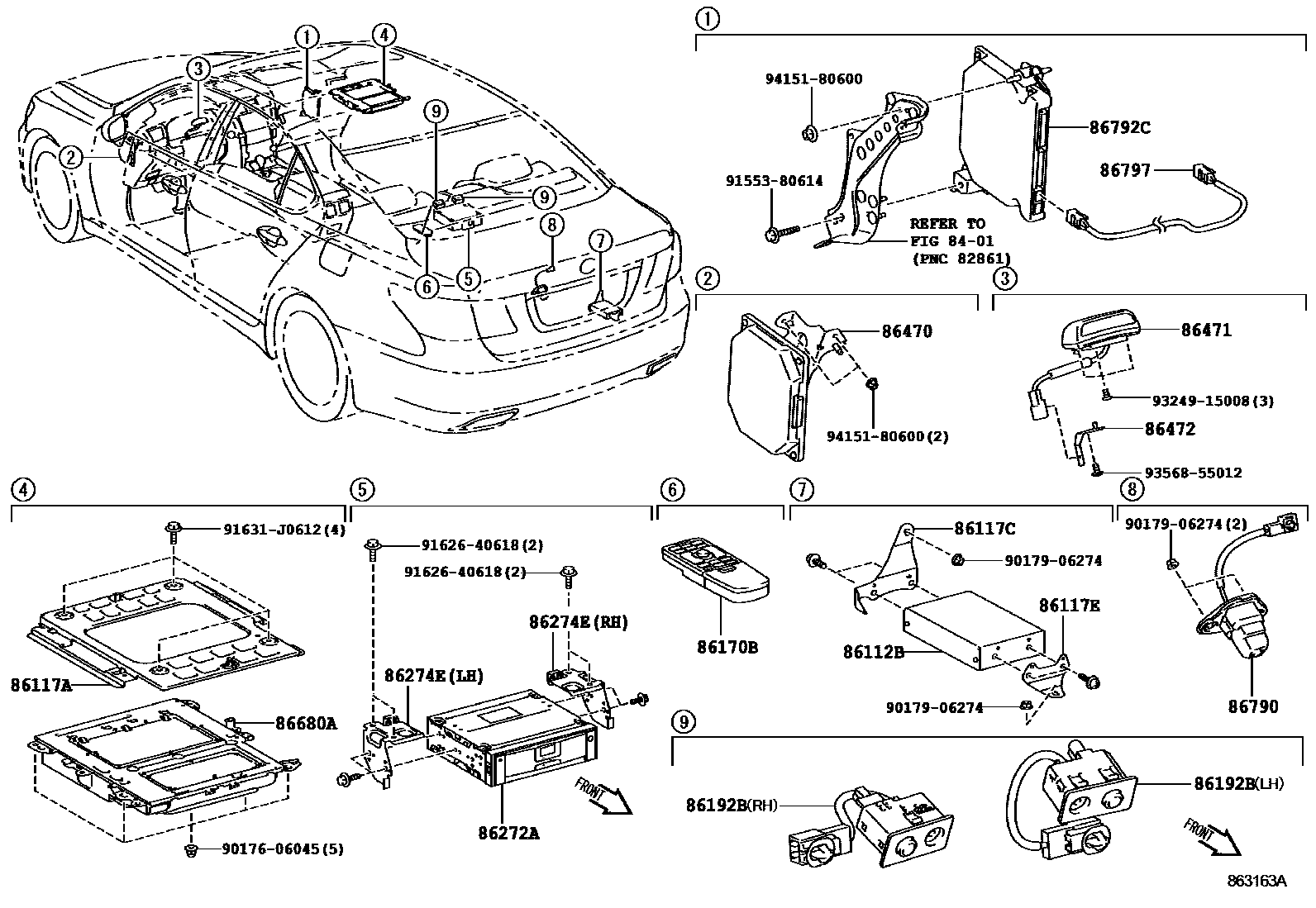

CAMERA & REAR MONITOR DISPLAY
8401
86112BSELECTOR, MULTI-DISPLAY
W(REAR DISPLAY & REAR DVD PLAYER)
86117ABRACKET, TELEVISION DISPLAY, A
W(DVD PLAYER & REAR DISPLAY)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
W(DVD PLAYER & REAR DISPLAY)
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
W(DVD PLAYER & REAR DISPLAY)
86170BSWITCH & VOLUME ASSY, TELEVISION
W(REAR DISPLAY & REAR DVD PLAYER)
USA POSSESSIONS SPEC&W(REAR DISPLAY)
WITH(OTTOMAN:4 SEAT)
KOREA SPEC&WITH(OTTOMAN:4 SEAT)
WITH(OTTOMAN:5 SEAT)
KOREA SPEC&WITH(OTTOMAN:5 SEAT)
86192BTERMINAL, HEADPHONE
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),RH
REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER)&WITH(DVD PLAYER & REAR DISPLAY:ROOF),LH
REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&WITH(DVD PLAYER & REAR DISPLAY:CONSOLE),LH
REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE)&WITH(DVD PLAYER & REAR DISPLAY:CONSOLE),RH
86272ACONTROLLER, DISC PLAYER
WITH (OTTOMAN)&INTERIOR PACKAGE&W(DVD PLAYER & REAR DISPLAY)
KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&W(DVD PLAYER & REAR DISPLAY)
sub86272-50041
86274EBRACKET, DISC PLAYER
WITH (OTTOMAN)&INTERIOR PACKAGE&W(DVD PLAYER & REAR DISPLAY),LH
KOREA SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&W(REAR DISPLAY & REAR DVD PLAYER),RH
WITH(OTTOMAN:5 SEAT),RH
WITH(OTTOMAN:5 SEAT),LH
86470COMPUTER ASSY, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)
86471CAMERA, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB),BLACK,TRIM05,1#,2#
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB),ORCHID BROWN,TRIM00,01
86472BRACKET, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)
86680ADISPLAY ASSY, TELEVISION
DENSO,W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00
sub86680-50081
DENSO,W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM1#,2#
sub86680-50081
PANASONIC,WITH(OTTOMAN:4 SEAT),MELLOW WHITE,TRIM01,05,07,08
sub86680-50121
PANASONIC,WITH(REAR POWER SEAT),IVORY,TRIM00,02,06
sub86680-50121
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
86797WIRE, TELEVISION CAMERA, NO.2
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST)
9017606045
main90176-06045
9017906274
main90179-06274
9155380614
main91553-80614
9162640618
main91626-40618
91631J0612
main91631-J0612
9324915008
main93249-15008
9356855012
main93568-55012
9415180600
main94151-80600
24 parts on this diagram · 4 diagrams in section
