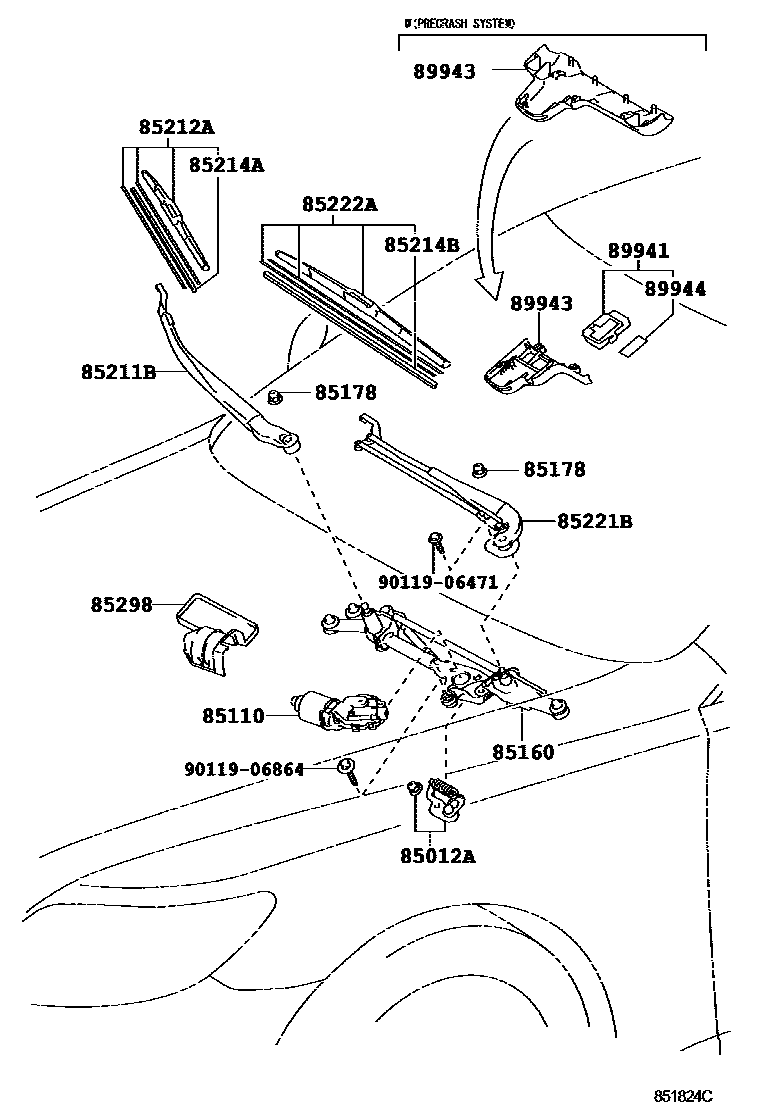

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iUVF46200809-200911

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58090iUVF46201101-201209

KOREA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-50150supersedes 85150-50200iUVF46201101

KOREA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iUVF46200809-200911

85211BARM, FRONT WIPER, RH

main85211-50140iUVF46200704-200809

85212ABLADE, FR WIPER, RH

main85212-42120iUVF46200704-200809

85214ARUBBER, WIPER, RH

main85214-42050iUVF46200704-200809

85214BRUBBER, WIPER, LH

main85214-30380iUVF46200704-200809

85221BARM, FRONT WIPER, LH

main85221-50120iUVF46200704-200809

85222ABLADE, FR WIPER, LH

main85222-50080iUVF46200704-200809

85298COVER, WIPER MOTOR

main85111-50060iUVF46200704-200809

89941SENSOR, RAIN

main89941-50030supersedes 89941-50081iUVF46200704-200809

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)

main89941-50070supersedes 89941-50081iUVF46200911-201109

PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)

main89941-50071supersedes 89941-50081iUVF46201110

PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)

89943COVER, RAIN SENSOR

main75631-50020supersedes 89943-50030iUVF46200809-200911

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)

main75631-50040supersedes 89943-50030iUVF46200911

PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC)

89944TAPE, RAIN SENSOR

main89944-50020iUVF46200704-200809

main89944-50021iUVF46201110

9011906471

main90119-06471

9011906864

main90119-06864

16 parts on this diagram · 1 diagram in section
