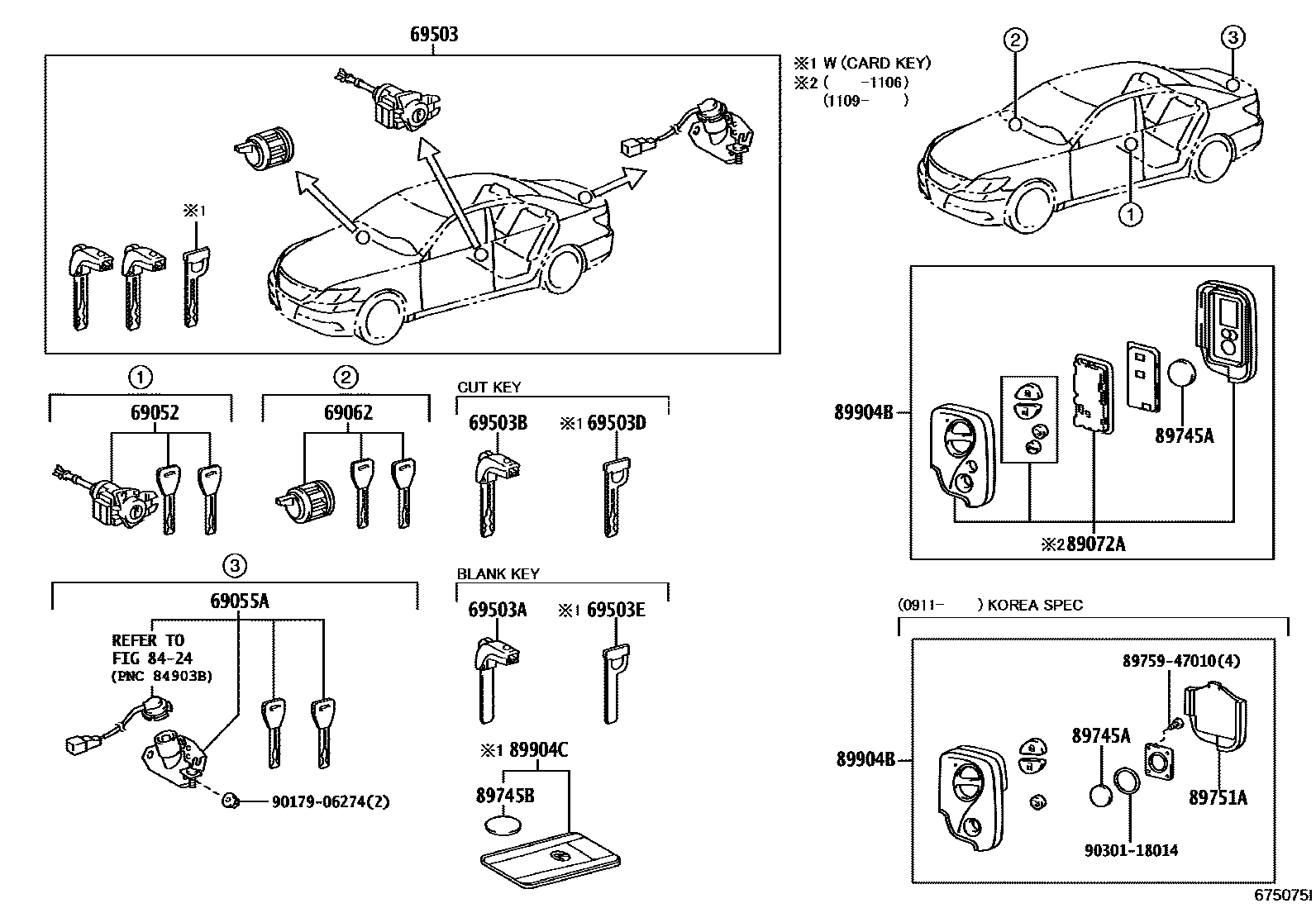

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-50150i200704-200809

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-50160i200704-200809

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160i200704-200809

69503CYLINDER SET, LOCK

main69005-50A70supersedes 69005-50A50i200809-200911

ELECTRICAL KEY(2)+CARD TYPE(1)

69503AKEY, BLANK

main69515-50260i200704-200809

BLANK KEY

69503BKEY, CUT

main69515-50240×2i200704-200809

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-50220supersedes 69515-30330i200809-200911

MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)

69503EKEY, BLANK(CARD KEY)

main69515-30350i200911

MASTER KEY

main69515-50270i200809-200911

BLANK KEY

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-50790supersedes 89072-75020i200704-200807

KOREA SPEC

main89072-50791×2supersedes 89072-75020i200809-200911

KOREA SPEC; KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

89745ABATTERY, TRANSMITTER

main89745-52030supersedes 89745-52020i200911-201209

KOREA SPEC

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030i200809-200911

ELECTRICAL KEY(2)+CARD TYPE(1); KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

89751ACOVER, TRANSMITTER HOUSING

main89751-48320×2i200911-201104

KOREA SPEC

main89751-48321×2i201105

KOREA SPEC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-75030×2i201109-201209

main89904-75110×2i201106-201109

main89904-50C20supersedes 89904-75030i200704-200809

KOREA SPEC

main89904-50D50×2supersedes 89904-75030i200809-200911

KOREA SPEC; KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

main89904-50G70×2supersedes 89904-75030i200911-201104

KOREA SPEC

main89904-50G71×2supersedes 89904-75030i201105-201209

KOREA SPEC

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-50840supersedes 89994-50520i200704-200805

KOREA SPEC

main89904-50841supersedes 89994-50520i200806-200809

KOREA SPEC

main89904-50E20supersedes 89994-50520i200809-200911

ELECTRICAL KEY(2)+CARD TYPE(1)

main89904-50E30supersedes 89994-50520i200809-200911

KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

main89994-50530supersedes 89994-50520i200911-201011

KOREA SPEC

main89994-50531supersedes 89994-50520i201012-201104

KOREA SPEC

main89994-50532supersedes 89994-50520i201105-201111

KOREA SPEC

main89994-50760supersedes 89994-50520i201112

KOREA SPEC

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9017906274

main90179-06274

9030118014

main90301-18014

18 parts on this diagram · 1 diagram in section
