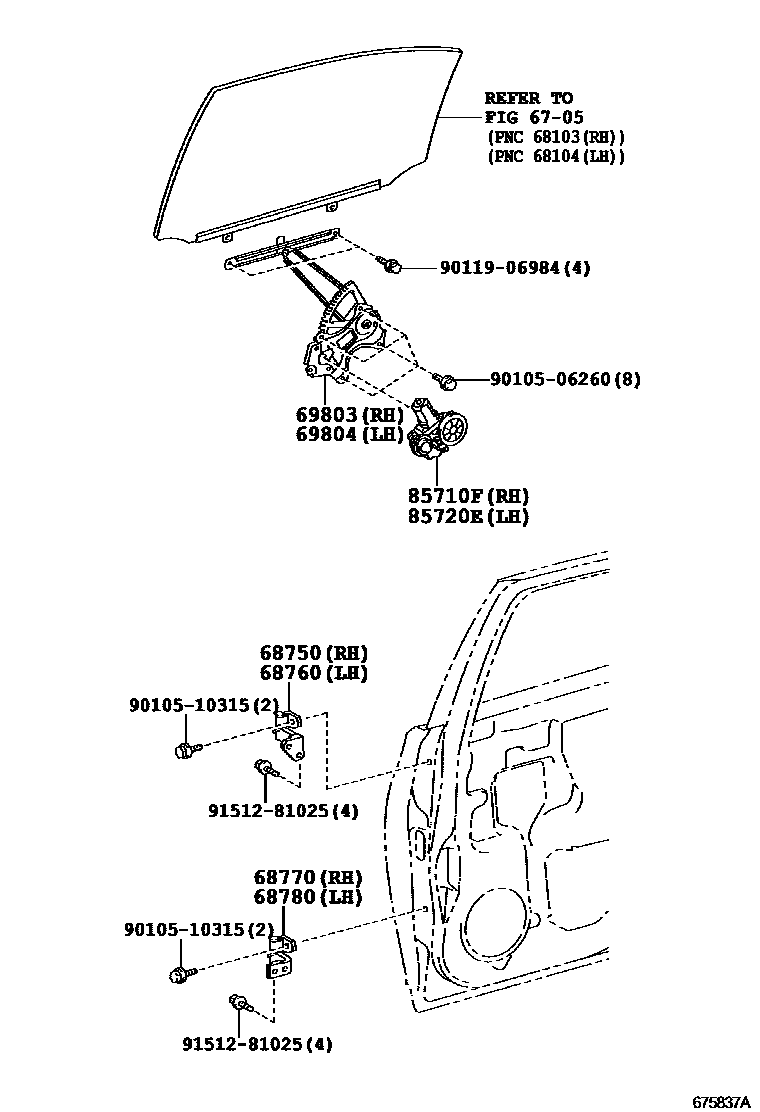

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68730-30180iUVF46200704-200809

68760HINGE ASSY, REAR DOOR, UPPER LH

main68740-30080iUVF46200704-200809

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30140iUVF46200704-200809

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30150iUVF46200704-200809

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-50040iUVF46200704-200809

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-50040iUVF46200704-200809

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50110iUVF46200704-200809

main85710-50111iUVF46200911-201101

main85710-50113iUVF46201102

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50110iUVF46200704-200809

main85720-50111iUVF46200911-201101

main85720-50113iUVF46201102

9010506260

main90105-06260

9010510315

main90105-10315

9011906984

main90119-06984

9151281025

main91512-81025

13 parts on this diagram · 1 diagram in section
