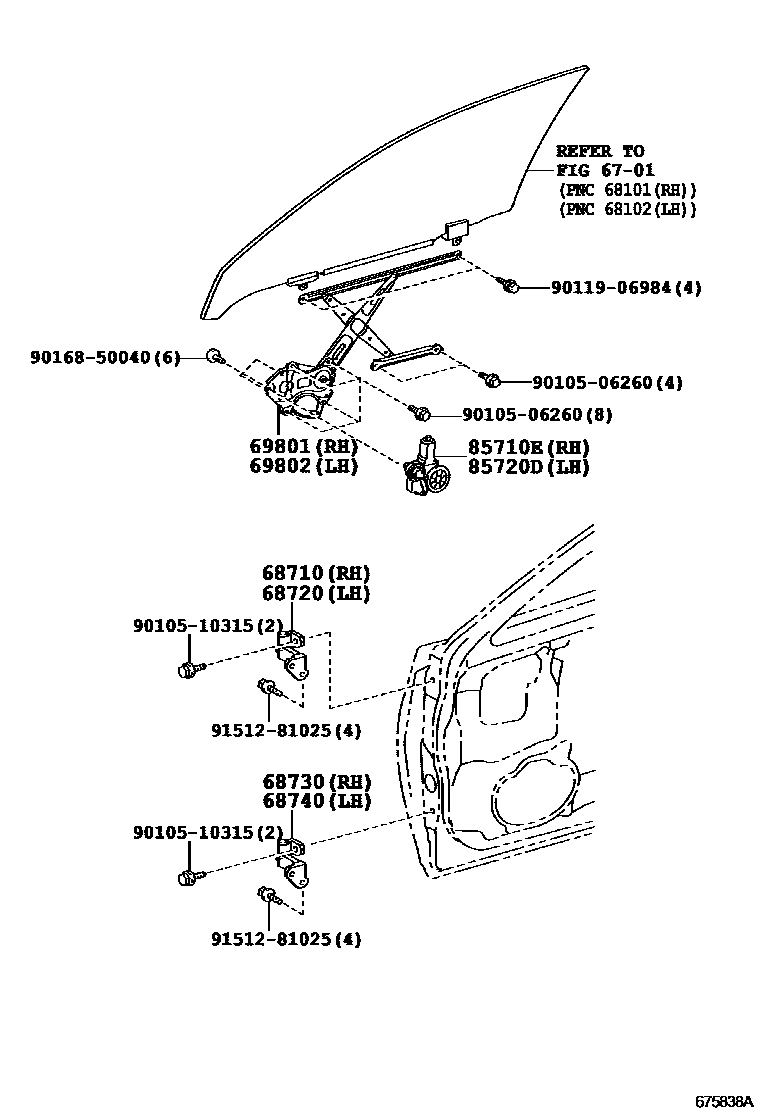

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68730-30180iUVF46200704-200809

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68740-30080iUVF46200704-200809

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30160iUVF46200704-200809

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30060iUVF46200704-200809

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iUVF46200704-200809

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iUVF46200704-200809

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50100iUVF46200704-200809

main85710-50101iUVF46200911-201101

main85710-50103iUVF46201102

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50100iUVF46200704-200809

main85720-50101iUVF46200911-201101

main85720-50103iUVF46201102

9010506260

main90105-06260

9010510315

main90105-10315

9011906984

main90119-06984

9016850040

main90168-50040

9151281025

main91512-81025

14 parts on this diagram · 1 diagram in section
