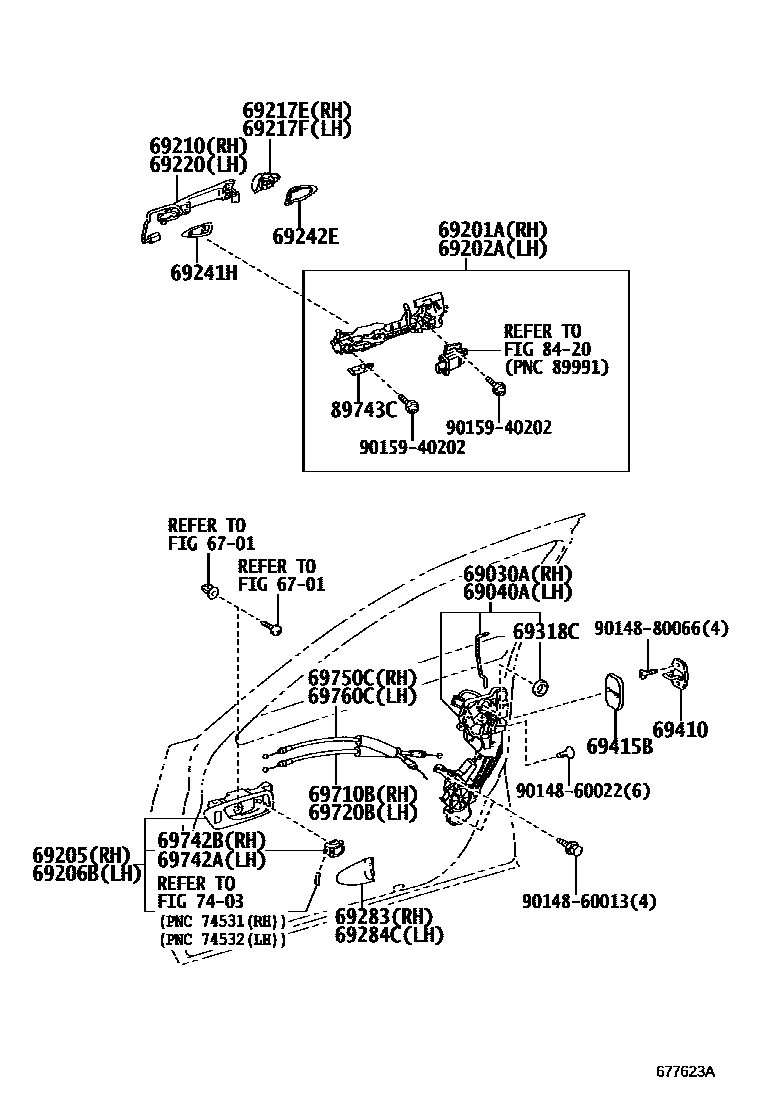

FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM00
MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM07
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
BLACK,TRIM00,02,05,06,08,2#
BLACK,TRIM05,12,2#
BLACK,TRIM05,2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM00
MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM07
WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),LT.GRAY,TRIM10
WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&INSTRUMENT FINISH PANEL-LEATHER(LOWER),LT.GRAY,TRIM10
BLACK,TRIM05,12,2#
BLACK,TRIM05,2#
BLACK,TRIM00,02,05,06,08,2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69742AKNOB, REAR DOOR LOCK CONTROL, LH
IVORY,TRIM00
MELLOW WHITE,TRIM07
MELLOW WHITE,TRIM01
WATER WHITE,TRIM14,15
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM05,2#
BLACK,TRIM05,12,2#
BLACK,TRIM00,02,05,06,08,2#
69742BKNOB, FRONT DOOR LOCK CONTROL, RH
IVORY,TRIM00
MELLOW WHITE,TRIM07
MELLOW WHITE,TRIM01
WATER WHITE,TRIM14,15
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM05,2#
BLACK,TRIM05,12,2#
BLACK,TRIM00,02,05,06,08,2#
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
7403
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014860013
main90148-60013
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
31 parts on this diagram · 1 diagram in section
