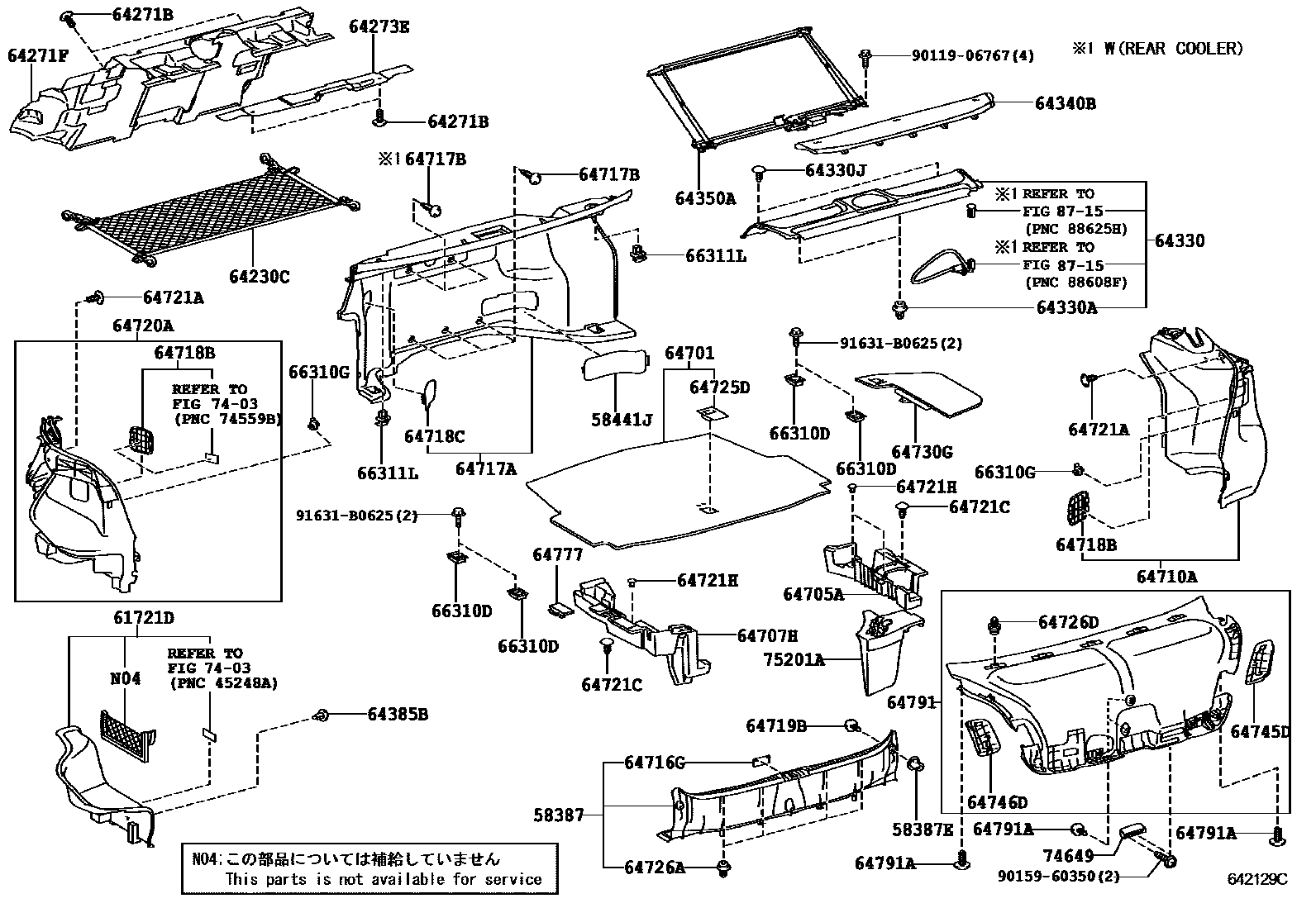

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58441JCOVER, BATTERY SERVICE HOLE
BLACK,TRIM0#,1#,2#
61721DCOVER, BATTERY SERVICE HOLE, LH
BLACK,TRIM0#,1#,2#
64230CNET ASSY, ROOM PARTITION
64271BCLIP(FOR ROOM PARTITION BOARD)
64273EPAD, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM00
MELLOW WHITE,TRIM01,05
LT.GRAY,TRIM1#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
sub64350-50021
64385BCLIP
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#,1#,2#
64705AGUARD SUB-ASSY, SPARE WHEEL
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,RH
BLACK,TRIM0#,1#,2#,LH
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64730GBOARD, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,2#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#
64777CLAMP, SPARE WHEEL COVER
BLACK,TRIM0#,1#,2#
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#
64791ACLIP(FOR BACK DOOR TRIM)
66310DHOOK ASSY, ROPE
66310GHOOK ASSY, ROPE
BLACK
66311LHOOK,ROPE
BLACK
7403
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
8715
9011906767
main90119-06767
9015960350
main90159-60350
91631B0625
main91631-B0625
47 parts on this diagram · 2 diagrams in section
