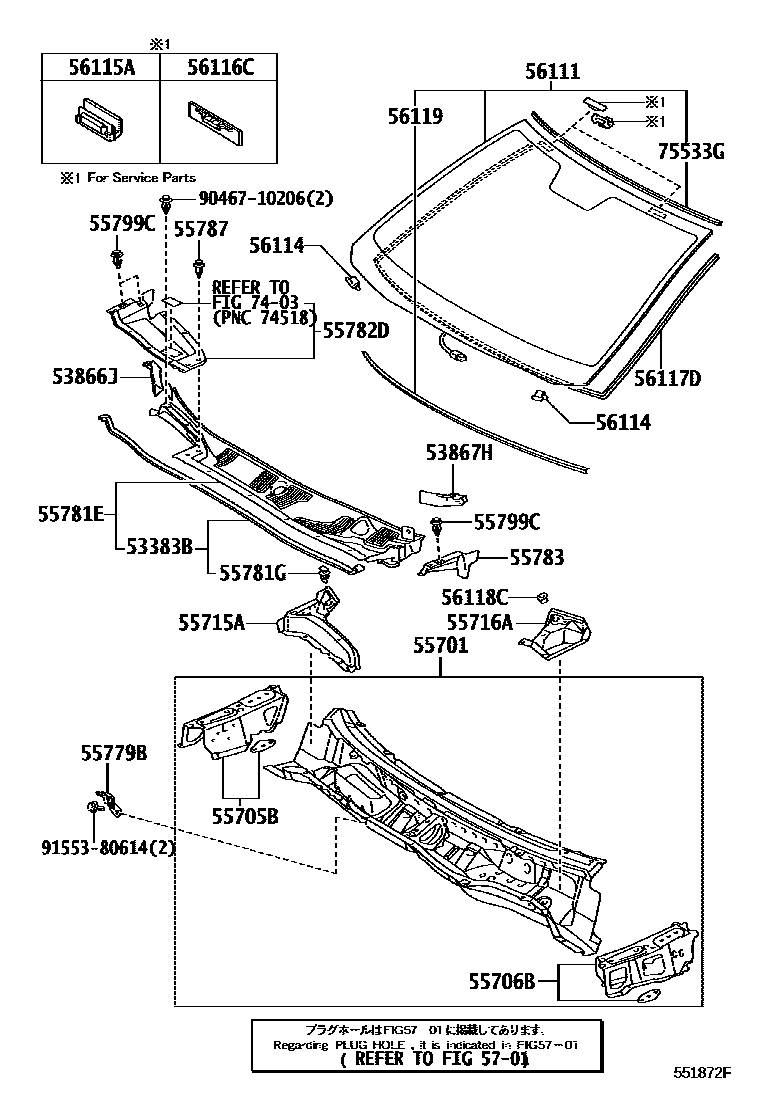

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55779BBRACKET, WIRING HARNESS MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
CANADA SPEC&COLD AREA SPEC
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782DLOUVER, COWL TOP VENTILATOR, LH
55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55787CLIP, COWL VENTILATOR LOUVER, INNER
BLACK
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)
*EHL,T=5.48,GREEN,WINDSHIELD DEICER-WITH
*EHL,T=5.48,GREEN,WINDSHIELD DEICER-WITH
*EHL,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)&WINDSHIELD DEICER-WITH
*EHL,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)&WINDSHIELD DEICER-WITH
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2917; L=2917,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB); L=2917,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB)&WINDSHIELD DEICER-WITH; L=2917,WINDSHIELD DEICER-WITH
56118CRETAINER, WINDSHIELD GLASS, NO.2
CANADA SPEC&COLD AREA SPEC
56119SEAL, WINDSHIELD GLASS
5701HOLE PLUG
7403CAUTION PLATE (EXTERIOR & INTERIOR)
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
9155380614
main91553-80614
27 parts on this diagram · 1 diagram in section
