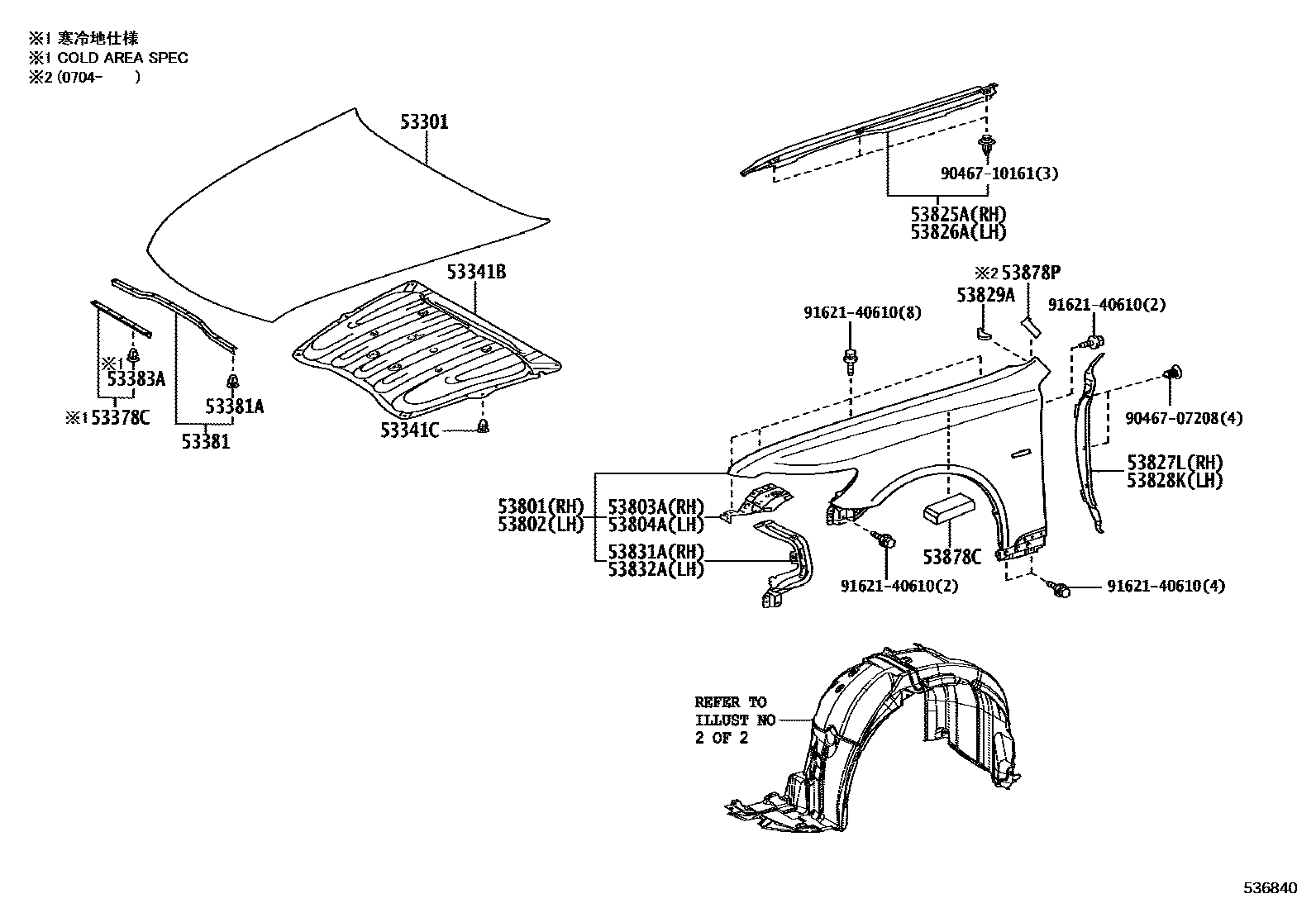

HOOD & FRONT FENDER

0001 1 0002 1FRONT FENDER LINER

53301HOOD SUB-ASSY

main53301-50080iUVF46200912-201209

main53301-50090iUVF46200704-200809

53341BINSULATOR, HOOD

main53341-50070iUVF46200809-200911

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×12iUVF46200704-200809

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-50061iUVF46200704-200801

CANADA SPEC&COLD AREA SPEC

main53378-50062iUVF46200802-200809

CANADA SPEC&COLD AREA SPEC

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50080iUVF46200704-200809

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iUVF46200809-200911

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011×3iUVF46200802-200809

CANADA SPEC&COLD AREA SPEC

53801FENDER SUB-ASSY, FRONT RH

main53801-50180supersedes 53801-50190iUVF46200809-200911

KOREA SPEC

53802FENDER SUB-ASSY, FRONT LH

main53802-50180supersedes 53802-50190iUVF46200704-200809

KOREA SPEC

53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-50040iUVF46200704-200809

53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main53804-50040iUVF46200704-200809

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-50010iUVF46200911

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-50010iUVF46200704-200809

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50070iUVF46200704-200809

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50070iUVF46200704-200809

53829APROTECTOR, FRONT FENDER, LOWER

main53829-50010×2iUVF46200704-200809

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-50060iUVF46200704-200809

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-50060iUVF46200704-200809

53878CSPACER, FRONT FENDER

main53878-50020×4iUVF46200704-200809

main55783-30110×4iUVF46201205-201209

53878PSPACER, FRONT FENDER

main53878-50030×2iUVF46200704-200809

9046707208

main90467-07208

9046710161

main90467-10161

9162140610

main91621-40610

23 parts on this diagram · 2 diagrams in section
