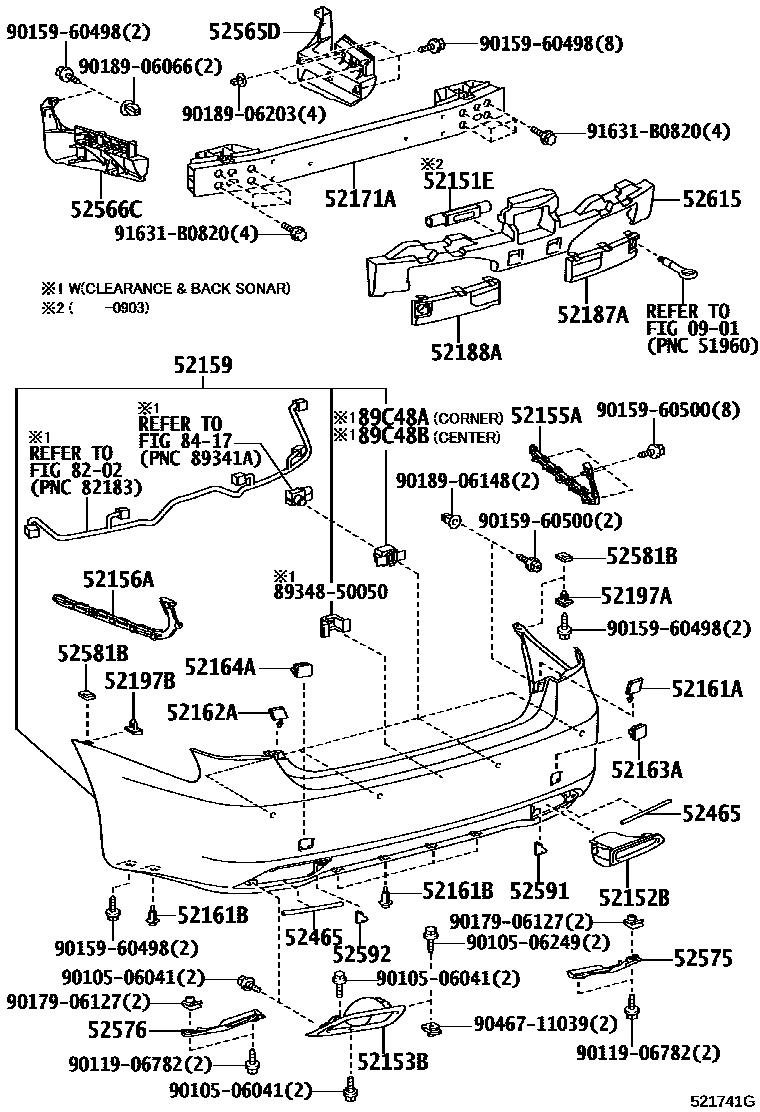

REAR BUMPER & BUMPER STAY

0001 1 0002 1

0901STANDARD TOOL

→ Go to FIG 09-01

52151EBAR, REAR BUMPER

main52151-50010iUVF46200704-200809

NO PAINT REQ.

52152BEXTENSION, REAR BUMPER, RH

main52106-50010iUVF46200704-200711

main52106-50011iUVF46200712-200809

main52106-50030iUVF46200911

52153BEXTENSION, REAR BUMPER, LH

main52107-50010iUVF46200704-200711

main52107-50011iUVF46200712-200809

main52107-50030iUVF46200911

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-50030iUVF46200809-200911

main52155-50050iUVF46200911-201209

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-50020iUVF46200704-200809

main52156-50040iUVF46200911

52159COVER, REAR BUMPER

main52159-50912iUVF46200704-200809

PAINT REQ.

main52159-50919iUVF46200911-201209

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-50901iUVF46200704-200809

52161BPIECE, REAR BUMPER

main52161-16010×6iUVF46200704-200809

52162APIECE, REAR BUMPER, LH

main52162-50901iUVF46200704-200809

52163APLATE, REAR BUMPER, RH

main52161-50902iUVF46200704-200809

main52161-50903iUVF46200911-201209

52164APLATE, REAR BUMPER, LH

main52162-50902iUVF46200809-200911

main52162-50903iUVF46200911-201209

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-50100iUVF46200809-200911

CANADA SPEC; KOREA SPEC

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-50030iUVF46200704-200809

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-50040iUVF46200704-200809

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30040iUVF46200704-200809

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30040iUVF46200704-200809

52465CUSHION, REAR BUMPER, NO.1

main52461-50010×2iUVF46200704-200809

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-50050iUVF46200704-200809

main52565-50060iUVF46200911

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-50030iUVF46200704-200809

main52566-50040iUVF46200911

52575RETAINER, REAR BUMPER SIDE, RH

main52577-50030iUVF46200704-200809

52576RETAINER, REAR BUMPER SIDE, LH

main52578-50030iUVF46200704-200809

52581BPROTECTOR, REAR BUMPER

main52581-30060×2iUVF46200704-200809

52591SEAL, REAR BUMPER SIDE, RH

main52591-50010iUVF46200704-200809

52592SEAL, REAR BUMPER SIDE, LH

main52592-50010iUVF46200704-200809

52615ABSORBER, REAR BUMPER ENERGY

main52615-50060iUVF46200704-200809

main52615-50070iUVF46200911

8202WIRING & CLAMP

→ Go to FIG 82-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-50020×2iUVF46200704-200809

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-50020×2iUVF46200704-200809

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9010506041

main90105-06041

9010506249

main90105-06249

9011906782

main90119-06782

9015960498

main90159-60498

9015960500

main90159-60500

9017906127

main90179-06127

9018906066

main90189-06066

9018906148

main90189-06148

9018906203

main90189-06203

9046711039

main90467-11039

91631B0820

main91631-B0820

42 parts on this diagram · 2 diagrams in section
