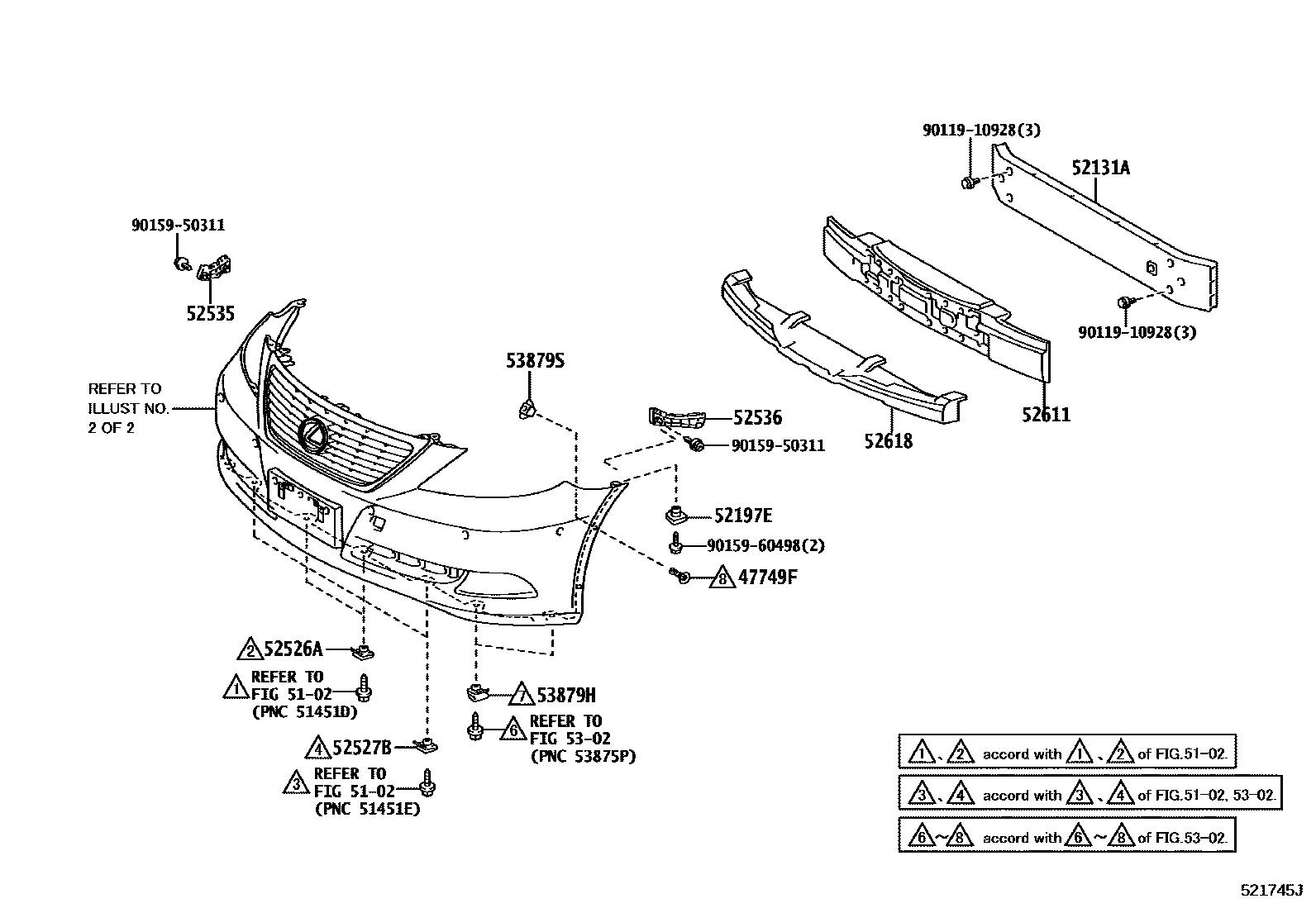

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-50090×4iUVF46200809-200911

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52131AREINFORCEMENT, FRONT BUMPER

main52131-50080supersedes 52131-50091iUVF46200809-200911

CANADA SPEC; KOREA SPEC

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040×2iUVF46200704-200809

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-53020×2iUVF46200911-201209

main90179-05060×2iUVF46200809-200911

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52526-53020×2iUVF46200911-201209

main90179-05060×2iUVF46200704-200809

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50070iUVF46200809-200911

main52535-50080iUVF46200911

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50060iUVF46200704-200809

main52536-50070iUVF46200911

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50060iUVF46200704-200809

main52611-50100iUVF46200911

52618ABSORBER, FRONT BUMPER, LOWER

main52614-50010iUVF46200704-200809

main52614-50030iUVF46200911

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-17020×4iUVF46200704-200809

53879SRETAINER, FRONT FENDER LINER

main53879-50020×4iUVF46200704-200809

9011910928

main90119-10928

9015950311

main90159-50311

9015960498

main90159-60498

16 parts on this diagram · 4 diagrams in section
