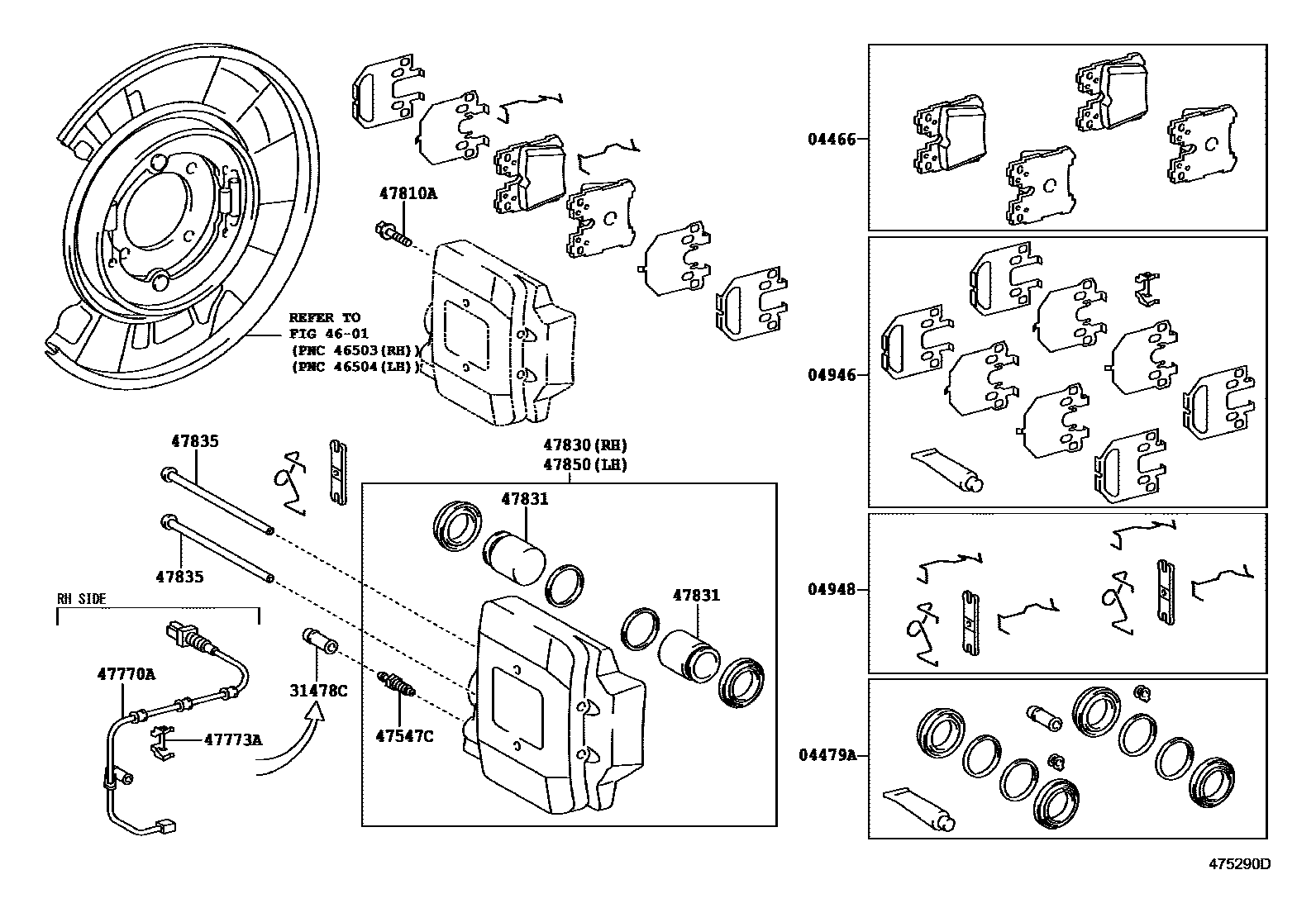

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-0W020supersedes 04466-50160iUVF46200704-200809

MARK TEXTAR T4146,STABILIZER-ACTIVE STABILIZER SUSPENSION

main04466-50170supersedes 04466-50160iUVF46201208-201209

MARK TEXTAR T4146,VERSION S

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50180iUVF46200704-200809

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50070supersedes 04946-50110iUVF46200704-200809

STABILIZER-ACTIVE STABILIZER SUSPENSION

main04946-50100supersedes 04946-50110iUVF46200911-201101

VERSION S

04948FITTING KIT, DISC BRAKE, REAR

main04948-50060iUVF46200704-200809

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iUVF46200704-200809

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2iUVF46200809-200911

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50100iUVF46200704-200809

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iUVF46200704-200809

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91552-L1245×4iUVF46200704-200809

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50150iUVF46200704-200809

47831PISTON, REAR DISC BRAKE

main47831-50140×4iUVF46200704-200809

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4iUVF46200704-200809

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50150iUVF46200704-200809

14 parts on this diagram · 2 diagrams in section
