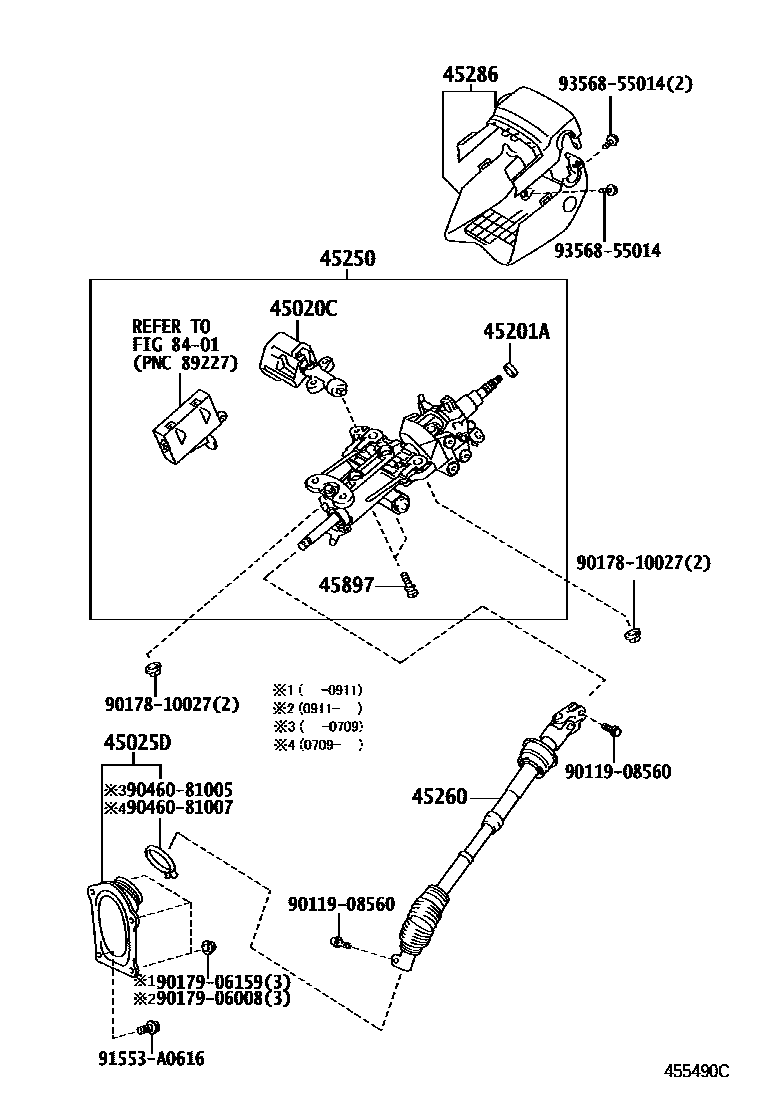

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iUVF46201106-201209

main45020-50130iUVF46200704-200809

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-50100iUVF46200704-200809

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-25077iUVF46200809-200911

45250COLUMN ASSY, STEERING

main45250-50230iUVF46200704-200809

main45250-50250iUVF46200911-201011

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-50100iUVF46200704-200809

45286COVER, STEERING COLUMN

main45286-50974-C0supersedes 45286-50973-C0iUVF46200704-200809

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB),BLACK,TRIM05,1#,2#

main45286-50974-E2supersedes 45286-50973-E2iUVF46200809-200911

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB),ORCHID BROWN,TRIM00,01

45897BOLT, STEERING LOCK SET

main45897-12020×2iUVF46200704-200809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9017906159

main90179-06159

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
