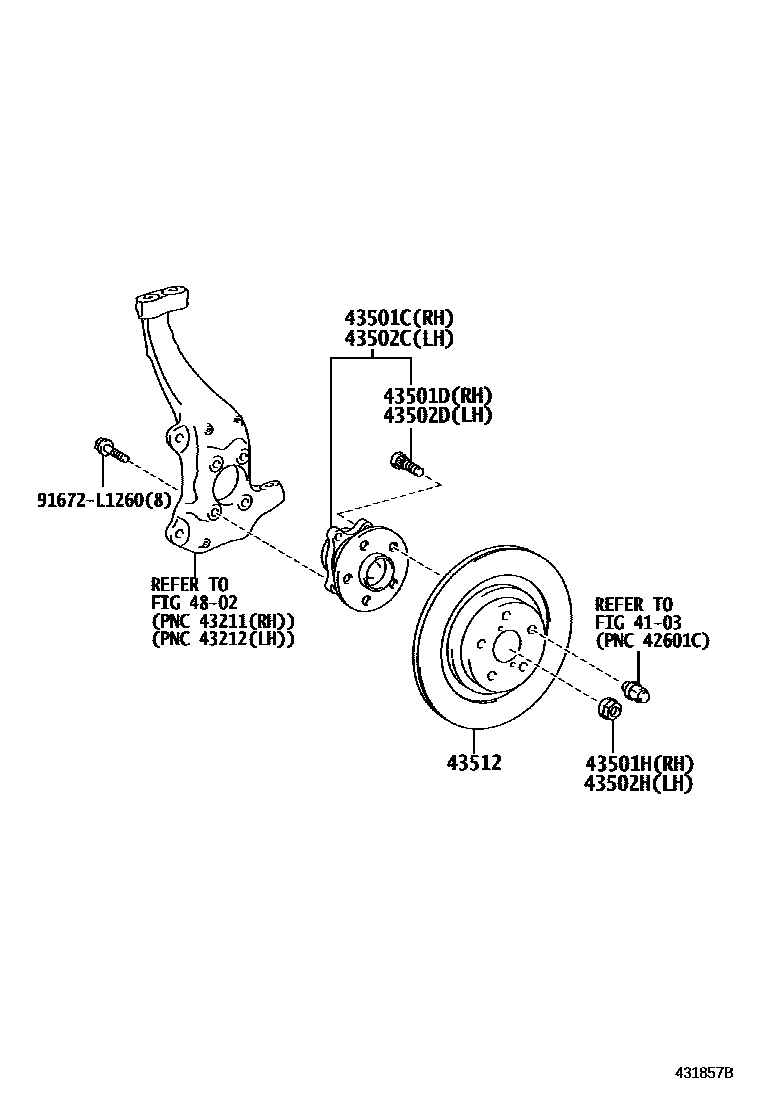

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50060iUVF46200704-200711

main43550-50061iUVF46200809-200911

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5iUVF46200704-200712

main90942-02083×5iUVF46200809-200911

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iUVF46200704-200809

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-50060iUVF46200704-200711

main43550-50061iUVF46200911

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5iUVF46200704-200712

main90942-02083×5iUVF46200712-200809

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iUVF46200911

43512DISC, FRONT

main43512-50250iUVF46200704-200809

RH

main43516-50010iUVF46200704-200809

LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91672L1260

main91672-L1260

10 parts on this diagram · 1 diagram in section
