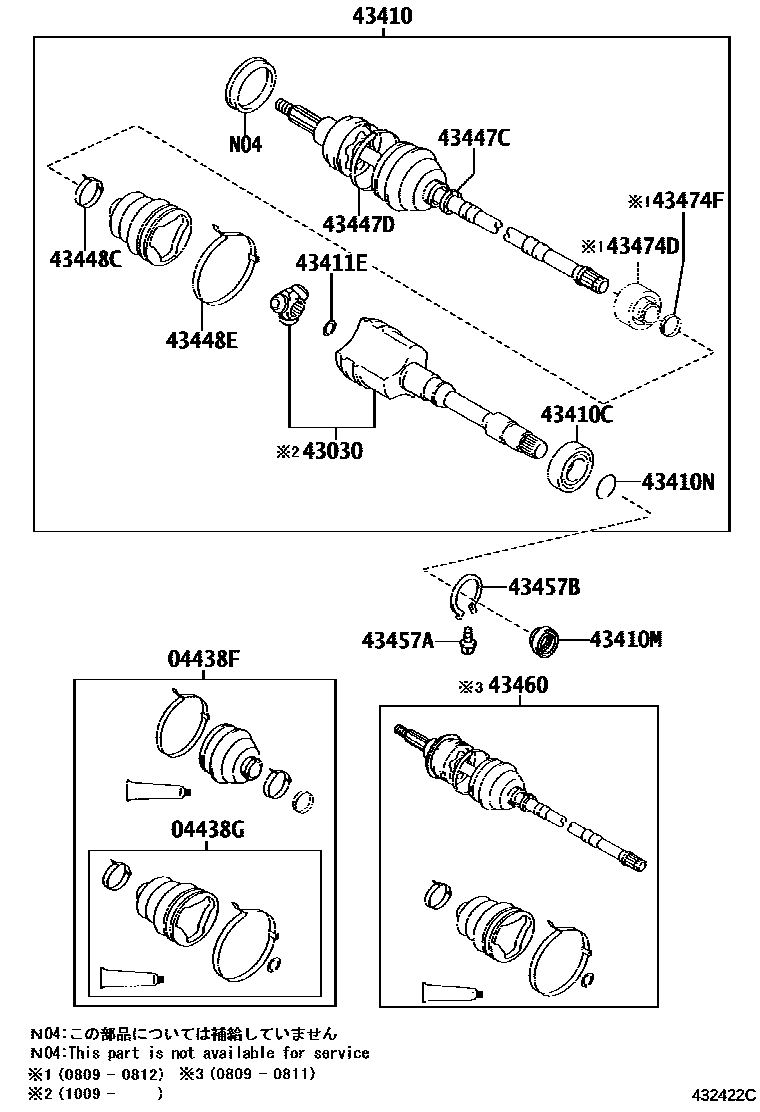

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-50010iUVF46200704-200806

main04427-50020iUVF46200809-200911

main04427-50040iUVF46201008

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-50030iUVF46200704-200809

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-50010iUVF46200809-200812

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-50011iUVF46200704-200808

main43410-50012iUVF46200812-200911

main43410-50013iUVF46201008

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iUVF46200704-200805

main90363-36010iUVF46200806-200809

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35060iUVF46200704-200809

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iUVF46200704-200809

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-07020iUVF46200704-200809

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-07080iUVF46200911

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05270iUVF46200704-200809

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-22020iUVF46200911-201208

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-22010iUVF46200809-200911

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iUVF46200809-200911

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iUVF46200704-200809

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59645iUVF46200809-200811

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-50010iUVF46200704-200809

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-22020iUVF46200806-200809

main42345-50040iUVF46200704-200806

17 parts on this diagram · 2 diagrams in section
