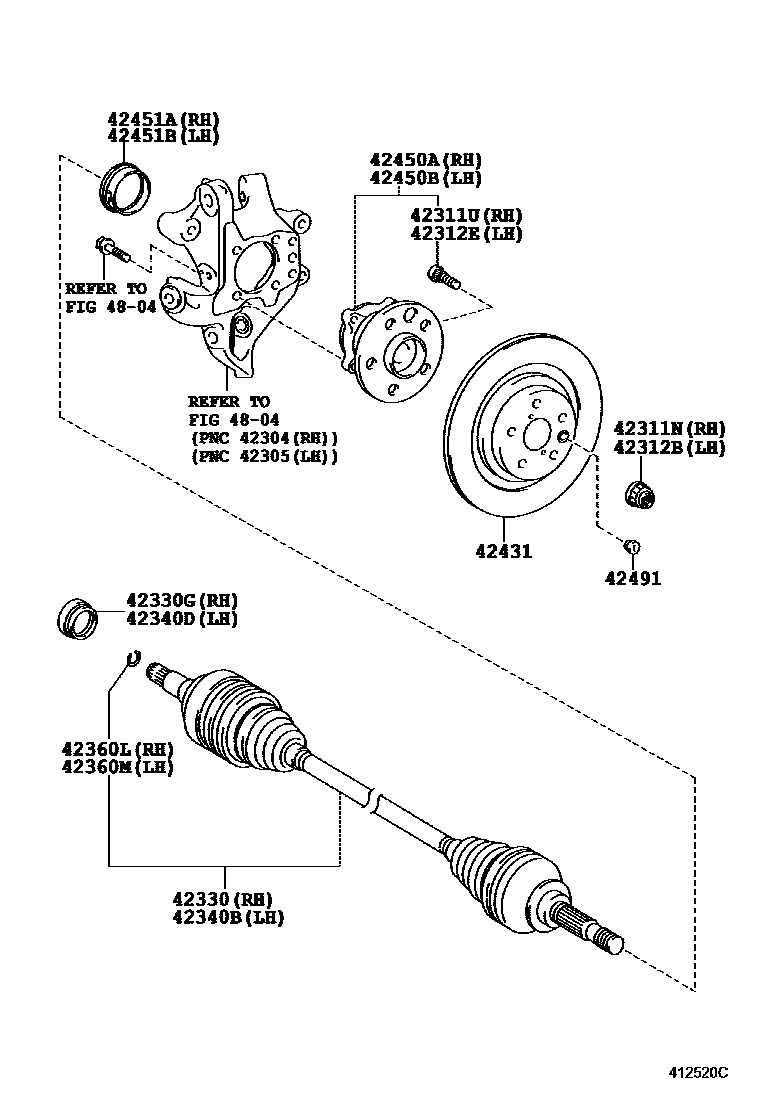

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iUVF46200809-200911

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02077×5iUVF46200704-200712

main90942-02083×5iUVF46200712-200809

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iUVF46200704-200809

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02077×5iUVF46200704-200712

main90942-02083×5iUVF46200712-200809

42330SHAFT ASSY, REAR DRIVE, RH

main42330-50070iUVF46200704-200809

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47015iUVF46200704-200706

main90311-47018iUVF46200707-200809

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-50070iUVF46200704-200809

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47015iUVF46200704-200706

main90311-47019iUVF46200707-200809

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iUVF46200809-200911

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iUVF46200809-200911

42431DISC, REAR

main42431-50100iUVF46200911-201209

RH

main42432-50010iUVF46200809-200911

LH

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-50040iUVF46200704-200711

main42410-50041iUVF46200712-200809

main42410-50042iUVF46200903-200911

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-50040iUVF46200704-200711

main42410-50041iUVF46200712-200809

main42410-50042iUVF46200903-200911

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iUVF46200704-200809

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iUVF46200704-200809

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iUVF46200704-200809

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

17 parts on this diagram · 1 diagram in section
