PROPELLER SHAFT & UNIVERSAL JOINT

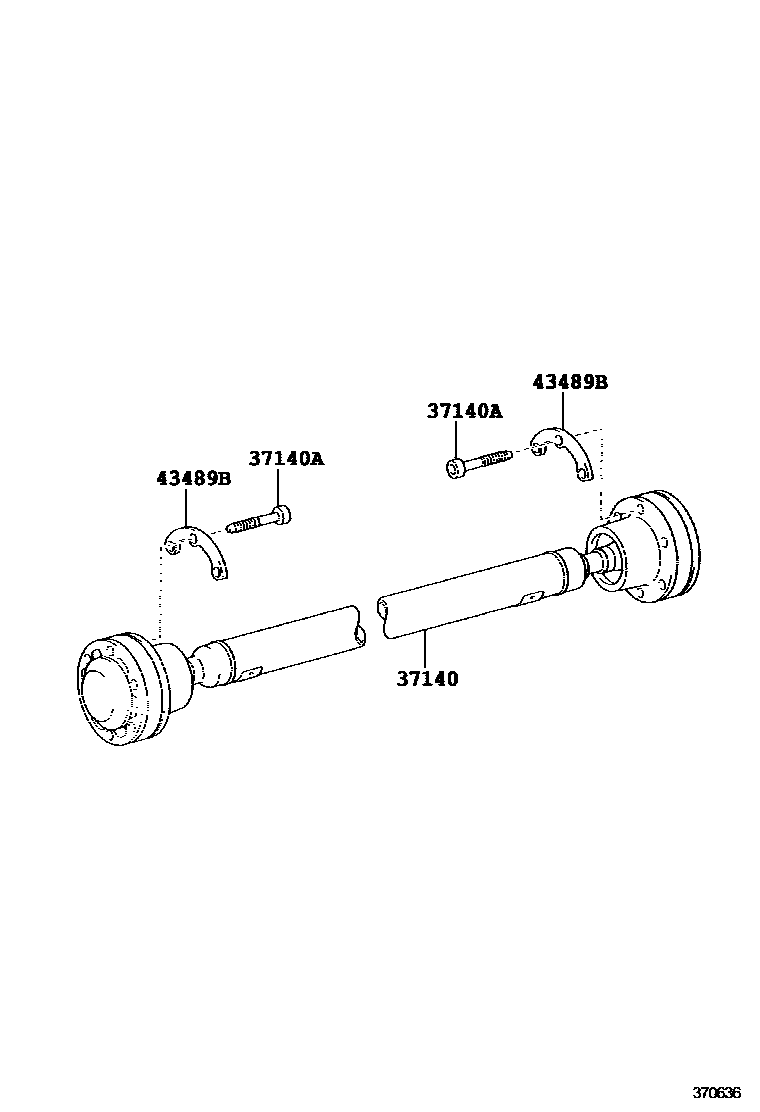

Parts diagram

37140SHAFT ASSY, PROPELLER, FRONT

main37140-50010i200704-200809

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90110-08040×12i200911

43489BWASHER, CONSTANT VELOCITY UNIVERSAL JOINT

main43489-50020×4i200704-200809

3 parts on this diagram · 2 diagrams in section
