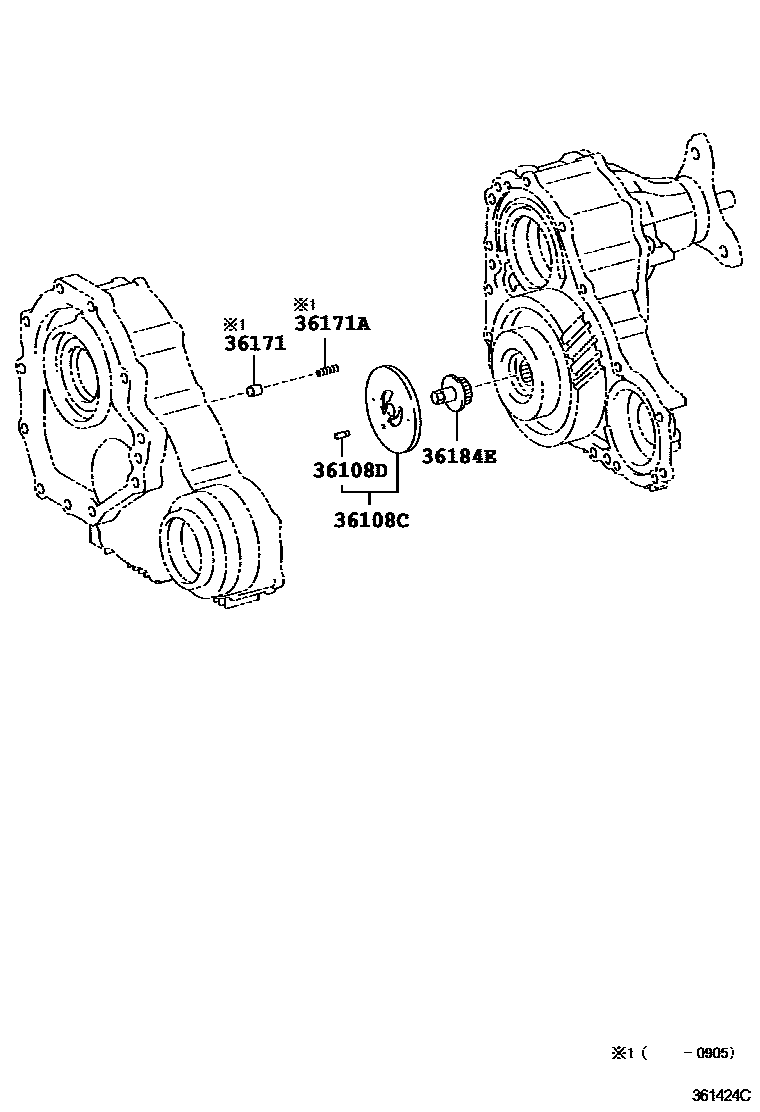

TRANSFER OIL PUMP

36108CPLATE SUB-ASSY, TRANSFER OIL PUMP

main36108-50010iUVF46200704-200809

36108DPIN (FOR TRANSFER OIL PUMP PLATE)

main90249-05101iUVF46200704-200809

36171VALVE, TRANSFER OIL COOLER RELIEF

main36171-12010iUVF46200704-200809

36171ASPRING, COMPRESSION(FOR TRANSFER OIL COOLER RELIEF VALVE)

main90501-07171iUVF46200704-200809

36184ESHAFT, TRANSFER OIL PUMP DRIVE

main36184-50020iUVF46200704-200809

5 parts on this diagram · 1 diagram in section
