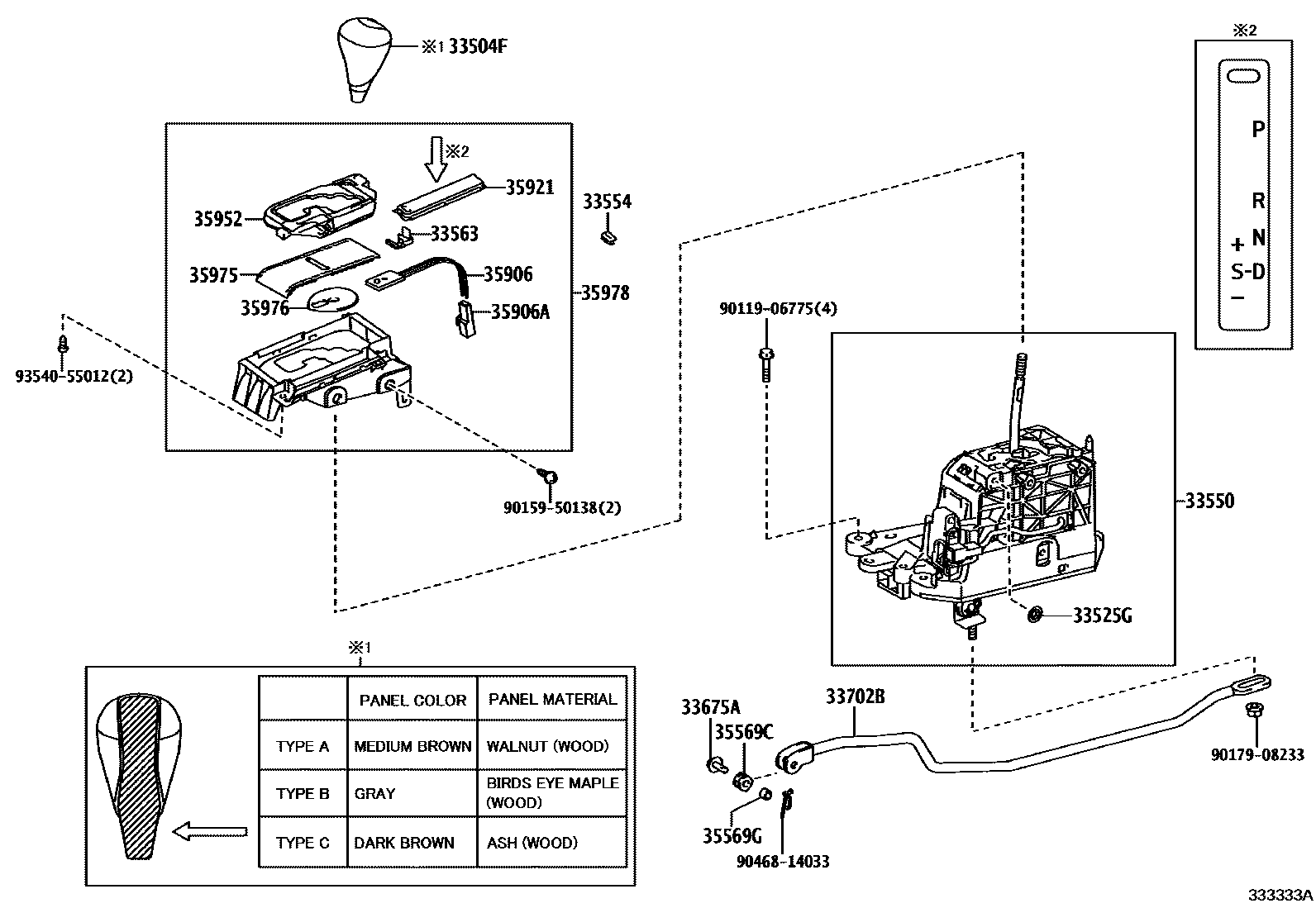

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BROWN,TRIM0#,2#,TYPE A:REFER ILLUST.
GRAY,TRIM1#,TYPE B:REFER ILLUST.
DK.BROWN,TRIM01,05,TYPE C:REFER ILLUST.
SILVER,TRIM0#,1#,TYPE C:REFER ILLUST.
GRAY,TRIM1#,TYPE C:REFER ILLUST.
SILVER,TRIM05,TYPE C:REFER ILLUST.
BROWN,TRIM02,2#,TYPE C:REFER ILLUST.
BROWN,TRIM07,TYPE C:REFER ILLUST.
BROWN,TRIM0#,TYPE D:REFER ILLUST.
BROWN,TRIM0#,2#,TYPE A:REFER ILLUST.
GRAY,TRIM1#,TYPE B:REFER ILLUST.
33525GRING, SHIFT LEVER
33554CAP, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35952LENS, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9011906775
main90119-06775
9015950138
main90159-50138
9017908233
main90179-08233
9046814033
main90468-14033
9354055012
main93540-55012
21 parts on this diagram · 2 diagrams in section
