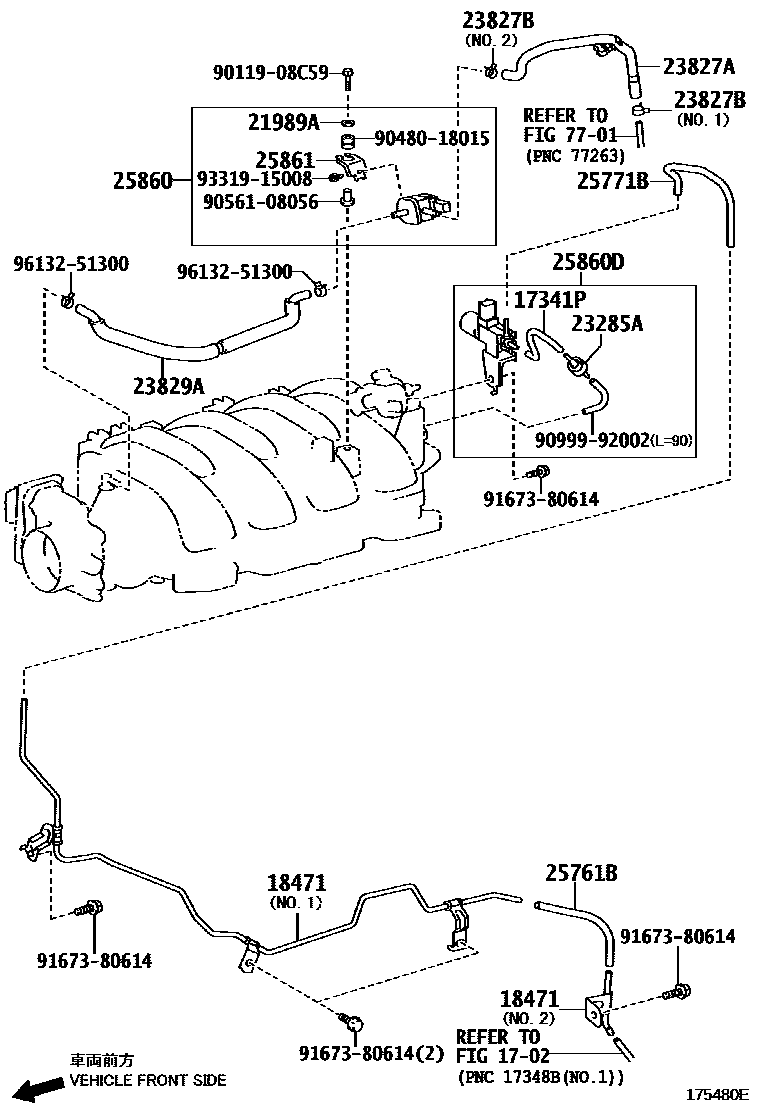

VACUUM PIPING

1702EXHAUST PIPE

→ Go to FIG 17-02

17341PHOSE, AIR

main17341-38070i2URFSE..UVF46200911

18471PIPE, CONVERTER AIR SUCTION

main18471-38020i2URFSE..UVF46200911

NO.1

main18471-38030i2URFSE..UVF46200911

NO.2

21989AINSULATOR, PLATE

main21989-38010i2URFSE..UVF46200809-200911

23285AVALVE, CHECK, NO.1

main90917-10049i2URFSE..UVF46200704-200809

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38020i2URFSE..UVF46200704-200809

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URFSE..UVF46200704-200809

NO.1

main96132-51300i2URFSE..UVF46200809-200911

NO.2

23829AHOSE, FUEL VAPOR FEED

main23829-38030i2URFSE..UVF46200704-200809

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-38010i2URFSE..UVF46200704-200809

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25771-38010i2URFSE..UVF46200704-200809

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URFSE..UVF46200704-200809

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-38040i2URFSE..UVF46200704-200809

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URFSE..UVF46200704-200809

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9099992002

main90999-92002

9167380614

main91673-80614

9331915008

main93319-15008

9613251300

main96132-51300

21 parts on this diagram · 1 diagram in section
