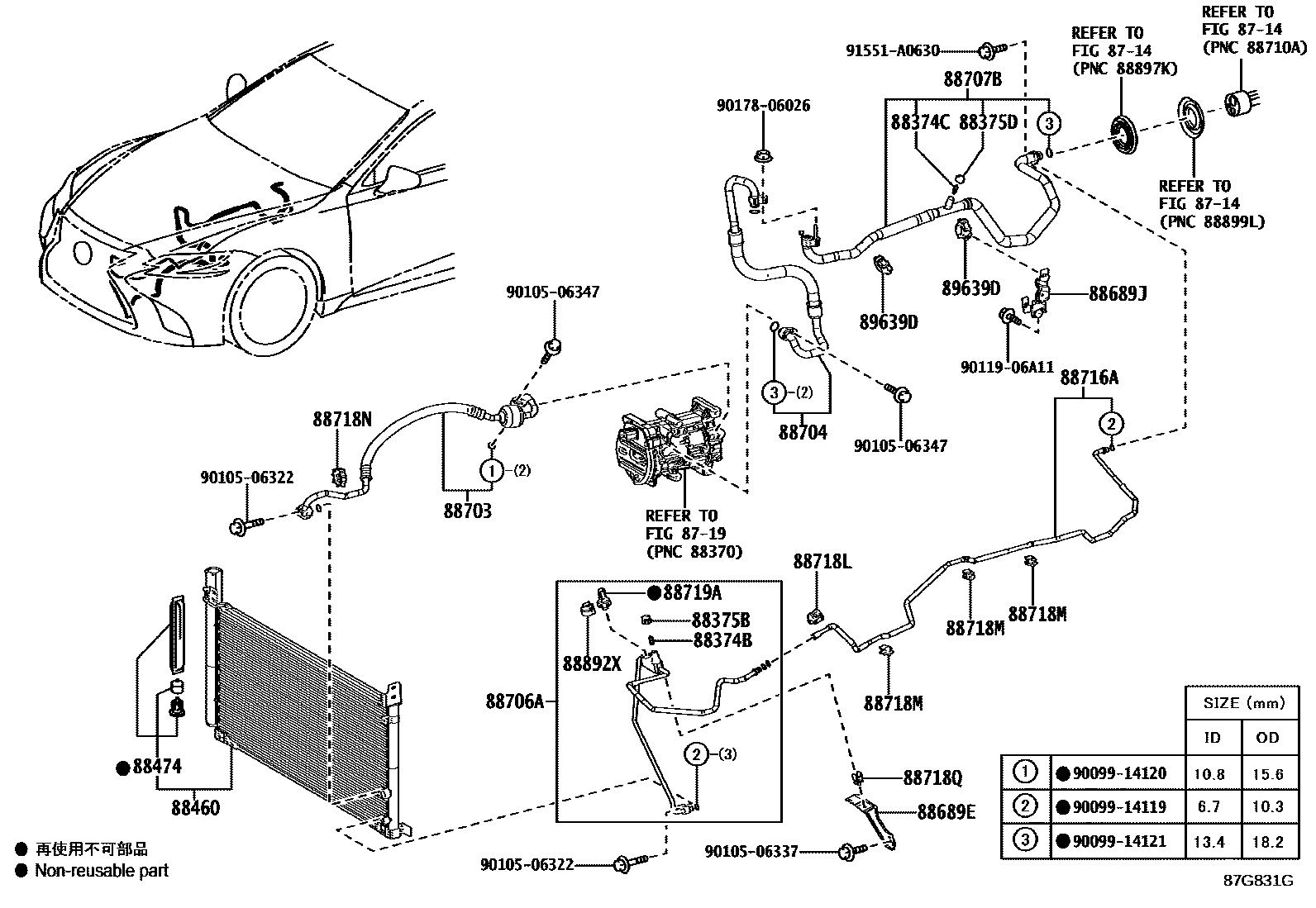

HEATING & AIR CONDITIONING - COOLER PIPING

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010i202010-202310

88374CVALVE, SERVICE, NO.2

main88374-30010i201710-202010

88375BCAP, SERVICE VALVE, NO.1

main88375-30320i202010-202310

main88375-30280supersedes 88375-30320i202010-202510

KOREA SPEC; KOREA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER)

88375DCAP, SERVICE VALVE, NO.2

main88375-30310i202010-202310

main88375-30290supersedes 88375-30310i202010-202510

KOREA SPEC; KOREA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER)

88460CONDENSER ASSY, COOLER

main884A0-50030i202010-202310

main884A0-50020supersedes 884A0-50040i201712-202010

KOREA SPEC

88474DRYER, COOLER

main88474-12010i201712-202010

main88474-12020i202010-202310

88689EBRACKET, COOLER, NO.1

main88688-50330i201712-202010

main88688-50390i201710-202010

88689JBRACKET, COOLER, NO.5

main88688-50400i202010

main88688-50420i202010-202310

88703HOSE SUB-ASSY, DISCHARGE

main88703-50080i202010-202404

main88703-50081i202405

main88703-50090i202010-202404

main88703-50091i202405

main88703-50110i202010-202310

main88703-50120i201710-202010

main88703-50121i202405

88704HOSE SUB-ASSY, SUCTION

main88704-11020i202010-202310

main88704-50060i202010-202404

main88704-50061i202405

main88704-50070i202010-202404

main88704-50071i202405

main88704-50100i201710-202010

main88704-50101i202405

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50110i202010-202310

main88706-50060i202010

KOREA SPEC

main88706-50100supersedes 88706-50110i202010-202510

KOREA SPEC; KOREA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER)

88707BTUBE SUB-ASSY, SUCTION, B

main88707-11070i202010-202310

main88707-11030i202010-202210

KOREA SPEC

main88707-50310supersedes 88707-11070i202111-202510

LEXUS TEAMMATE&REAR AIR CONDITIONER-WITH(REAR COOLER)

main88707-50320supersedes 88707-11070i202010-202510

KOREA SPEC&REAR AIR CONDITIONER-WITH(REAR COOLER)

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50660i201712-202010

main88716-50740i202010-202310

main88716-50A00supersedes 88716-50690i202401-202510

"VERSION L"*(L)&LEXUS TEAMMATE&REAR AIR CONDITIONER-WITH(REAR COOLER)&AUDIO-DVD &MARKLEVINSON & 24SPEAKER; KOREA SPEC&"EXECUTIVE"*(E)&REAR AIR CONDITIONER-WITH(REAR COOLER)&AUDIO-DVD & MARKLEVINSON & 24SPEAKER

88718LCLAMP, PIPING

main88718-2D150i201710-202010

88718MCLAMP, PIPING

main88718-50390×3i201710-202010

88718NCLAMP, PIPING

main88718-47090i201710-202010

88718QCLAMP, PIPING

main88718-32220i201710-202010

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010i201710-202010

88892XCOVER, COOLER, NO.2

main88892-50120i201710-202010

89639DCLAMP, AIRCONDITIONER TUBE

main89639-58020×2i201710-202010

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9010506337

main90105-06337

9010506347

main90105-06347

9011906A11

main90119-06A11

9017806026

main90178-06026

91551A0630

main91551-A0630

31 parts on this diagram · 6 diagrams in section
