HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0003 1FRONT AIR DUCT 0005 1FRONT AIR DUCT 0007 1REAR AIR DUCT 0008 1REAR AIR DUCT, W(ADS) 0009 1SENSOR 0010 1SENSOR

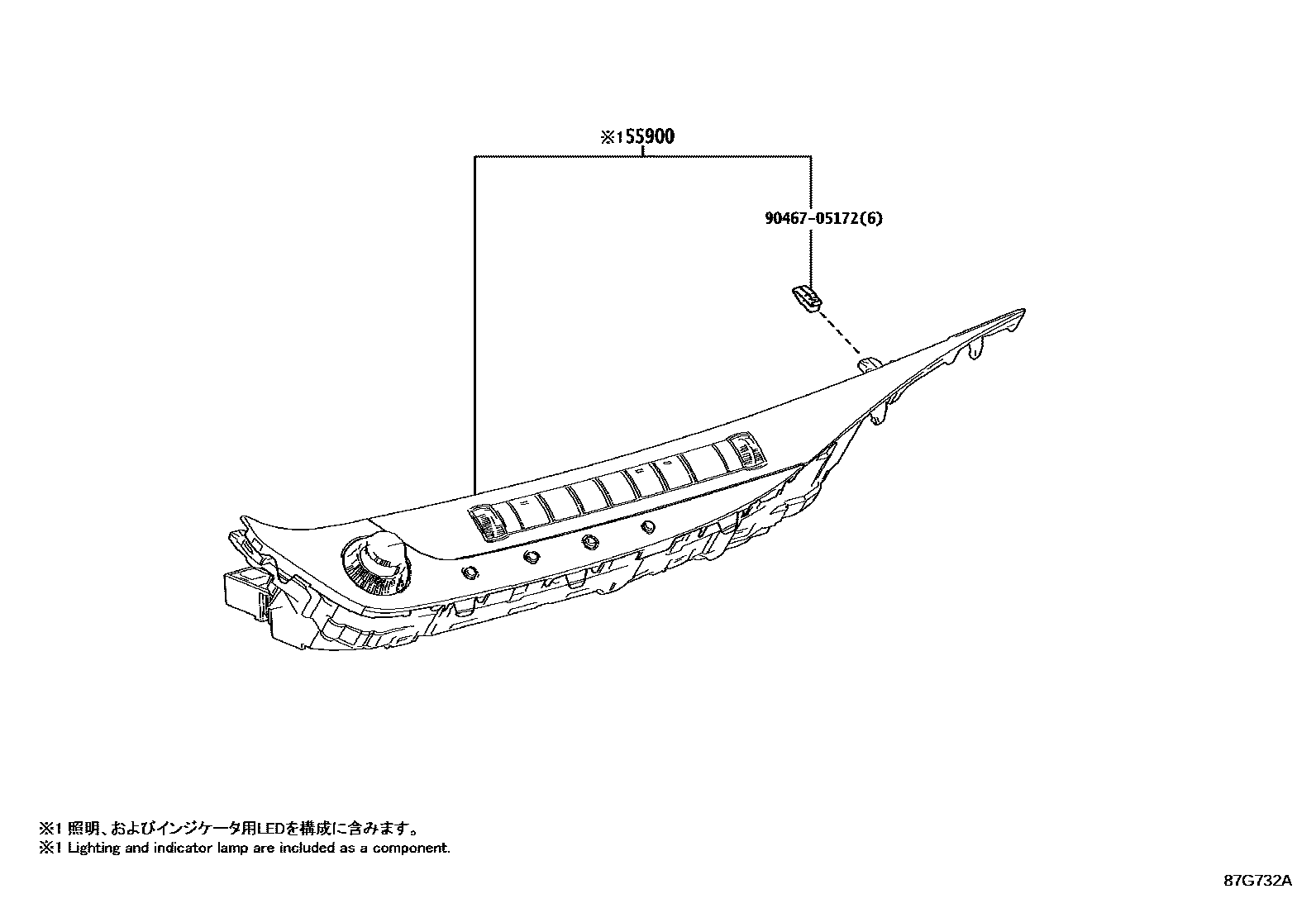

55900CONTROL ASSY, AIR CONDITIONER

main55900-50640iGVF50202210-202310

main55900-50430iGVF50,VXFA50201710-201809

CANADA SPEC

main55900-50450supersedes 55900-50500iGVF5#,VXFA5#201710-202010

KOREA SPEC

main55900-50520iGVF5#,VXFA5#202010-202111

KOREA SPEC

main55900-50570iGVF55,VXFA55202010-202209

CANADA SPEC

main55900-50590iGVF5#,VXFA5#202111-202209

KOREA SPEC

main55900-50650supersedes 55900-50640iGVF55202210-202510

CANADA SPEC; MEXICO SPEC

main55900-50670supersedes 55900-50640iGVF55202210-202510

KOREA SPEC

9046705172

main90467-05172

2 parts on this diagram · 7 diagrams in section
