EPC Data

ABS & VSC

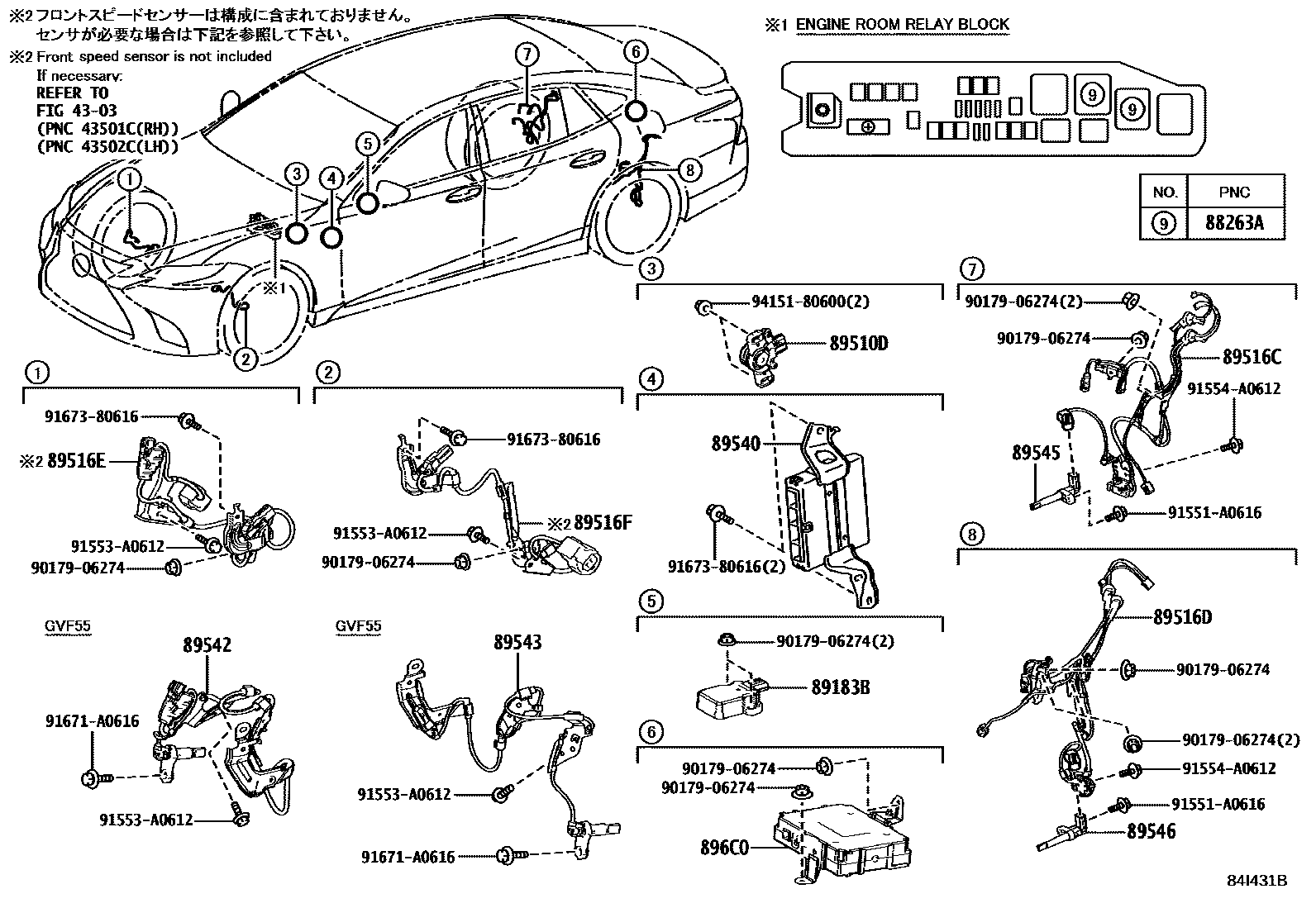

Parts diagram
4303FRONT AXLE HUB
→ Go to FIG 43-03
88263ARELAY, SKID CONTROL
main88263-21010×2i202010-202310
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "F SPORT"*(F)&F SPORT PLUS PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS; "F SPORT"*(F)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; LEXUS SAFETY SYSTEM+A
89183BSENSOR, YAWRATE
main89183-50040i201710-202010
89510DSENSOR ASSY, BRAKE PEDAL STROKE
main89510-33020i202010-202310
LEXUS SAFETY SYSTEM+A
main89510-47030i202310
89516CWIRE, SKID CONTROL SENSOR, RH
main89516-50220i201710-202010
main89516-50200i201712-202010
SUSPENSION-COIL SPRING
89516DWIRE, SKID CONTROL SENSOR, LH
main89516-50230i202010
main89516-50210i202010
SUSPENSION-COIL SPRING
89516EWIRE, SKID CONTROL SENSOR, FRONT RH
main89516-11010i201710-202010
89516FWIRE, SKID CONTROL SENSOR, FRONT LH
main89516-11020i201710-202010
89540COMPUTER ASSY, SKID CONTROL
main895B0-50N20i202210-202310
main895B0-50300i201712-201809
"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIRSUSPENSION & *AVS
main895B0-50301i201809-201909
"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIRSUSPENSION & *AVS
main895B0-50302i201909-202010
"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIRSUSPENSION & *AVS
main895B0-50310i201712-201809
"F SPORT"*(F)&F SPORT PLUS PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50311i201809-201909
"F SPORT"*(F)&F SPORT PLUS PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50312i201909-202010
"F SPORT"*(F)&F SPORT PLUS PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50340supersedes 895B0-50360i201710-201809
"EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50410supersedes 895B0-50360i201710-201809
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50520i201712-201809
PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50521i201809-201909
PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50522i201909-202010
PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50530i201712-201809
"F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50531i201809-201909
"F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50532i201909-202010
"F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50570supersedes 895B0-50640i201710-201809
SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50590supersedes 895B0-50640i201710-201809
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50720i202210-202310
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50730i202210-202310
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50770i202210-202310
"F SPORT"*(F)&F SPORT PLUS PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50A90i202210-202310
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A
main895B0-50D10supersedes 895B0-50D30i201809-201909
SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50D11supersedes 895B0-50D31i201909-202010
SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50D20supersedes 895B0-50D30i201809-201909
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50D21supersedes 895B0-50D31i201909-202010
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50D40supersedes 895B0-50D60i201809-201909
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50D41supersedes 895B0-50D61i201909-202010
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
main895B0-50D50supersedes 895B0-50D60i201809-201909
"EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50D51supersedes 895B0-50D61i201909-202010
"EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50E90i201909-202010
"F SPORT"*(F)&F SPORT PLUS PACKAGE&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50F00i201909-202010
"F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50F30supersedes 895B0-50D61i201909-202010
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50F40supersedes 895B0-50D31i201909-202010
"F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50G10i202010-202111
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50G11i202111-202210
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION & *AVS
main895B0-50G20i202010-202111
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50G21i202111-202210
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50G80i202010-202111
"F SPORT"*(F)&F SPORT PLUS PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50G81i202111-202210
"F SPORT"*(F)&F SPORT PLUS PACKAGE&LEXUS SAFETY SYSTEM+A&SUSPENSION-AIR SUSPENSION& *AVS&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50J30i202010-202111
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A
main895B0-50J31i202111-202210
"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A; "VERSION L"*(L)&LEXUS SAFETY SYSTEM+A; INTERIOR UPGRADE PACKAGE&LEXUS SAFETY SYSTEM+A
main895B0-50J40i202010-202111
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50J41i202111-202210
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50L10supersedes 895B0-50L00i202010-202111
"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50L11supersedes 895B0-50L01i202111-202210
"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50L30i202010-202111
"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50L31i202111-202210
"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50L40supersedes 895B0-50L30i202010-202111
"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50L41supersedes 895B0-50L31i202111-202210
KOREA SPEC&"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50M00i202210-202310
"F SPORT"*(F)&LEXUS SAFETY SYSTEM+A&FRONT WHEEL BRAKE-20INCH,F SPORT
main895B0-50N30i202210-202212
"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50N40supersedes 895B0-50N30i202210-202310
KOREA SPEC&"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH,F SPORT
89542SENSOR, SPEED, FRONT RH
main89542-50050i202010-202310
main89542-50070i202310
89543SENSOR, SPEED, FRONT LH
main89543-50050i202010-202310
main89543-50070i202310
89545SENSOR, SPEED, REAR RH
main89545-30070i202010
main89545-30090i201710-202010
89546SENSOR, SPEED, REAR LH
main89546-30070i202010
main89546-30090i201710-202010
896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET
main896C0-50010i202010-202310
LEXUS SAFETY SYSTEM+A
9017906274
main90179-06274
91551A0616
main91551-A0616
91553A0612
main91553-A0612
91554A0612
main91554-A0612
91671A0616
main91671-A0616
9167380616
main91673-80616
9415180600
main94151-80600

21 parts on this diagram · 6 diagrams in section
