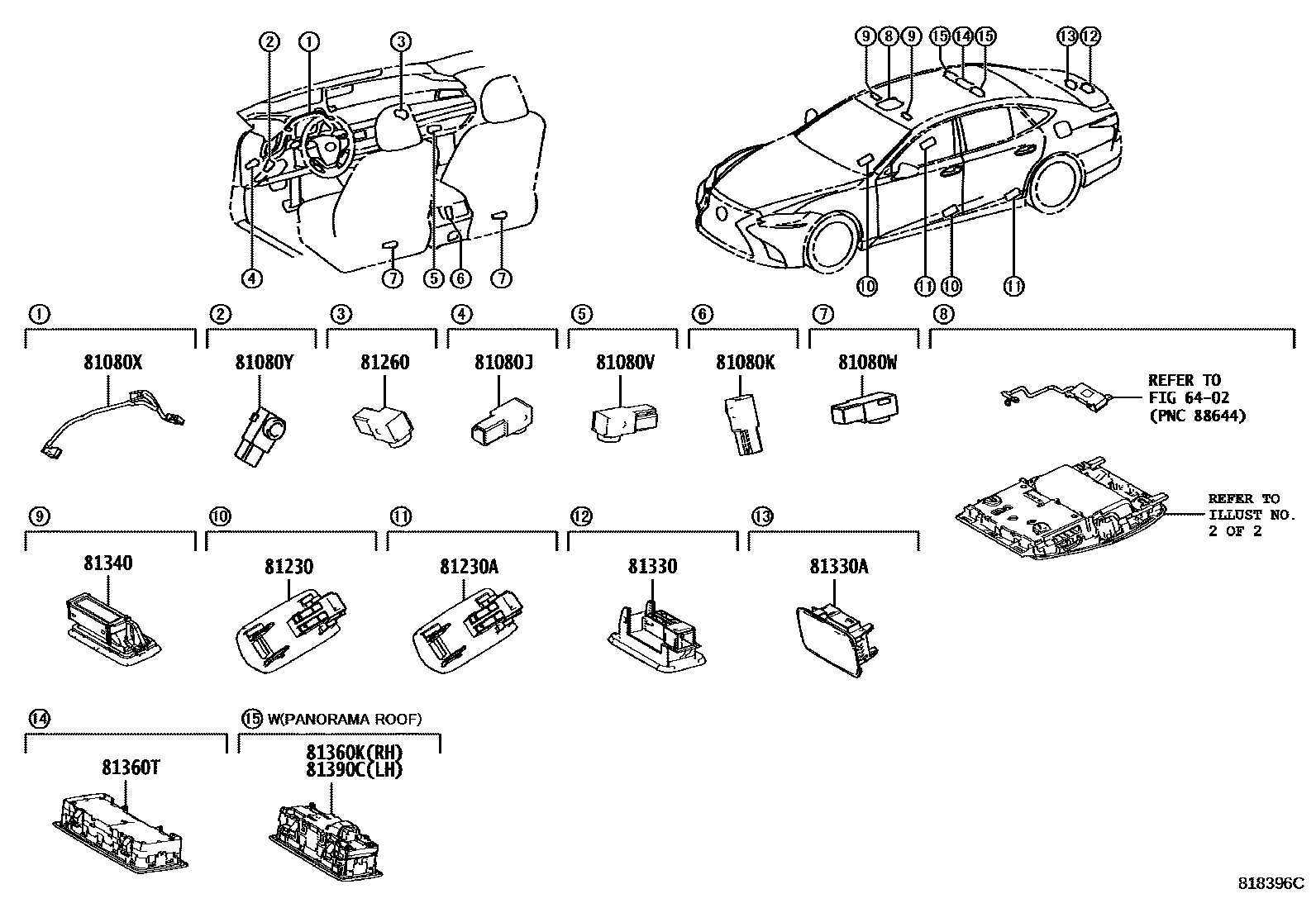

INTERIOR LAMP
6402ROOF HEADLINING & SILENCER PAD
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81080XLAMP ASSY, METER HOOD ILLUMINATION
81080YLAMP ASSY, COIN BOX
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81340LAMP ASSY, VANITY
81360KLAMP ASSY, SPOT, RH
81360TLAMP ASSY, SPOT
L WHITE,TRIM00,03,04,1#,40,44,45,51,54
BLACK,TRIM06,2#,3#
NOBLE BROWN,TRIM48,49,53,9#
WHITE,TRIM03,05,07,44
WHITE,TRIM0#,44
BLACK,TRIM06,08,1#,2#,3#,44,49,5#
BLACK,TRIM1#,2#,3#,44,49,5#
BLACK,TRIM06,1#,2#,3#,44,49,5#
81390CLAMP ASSY, SPOT, LH
16 parts on this diagram · 3 diagrams in section
