FRONT DOOR LOCK & HANDLE

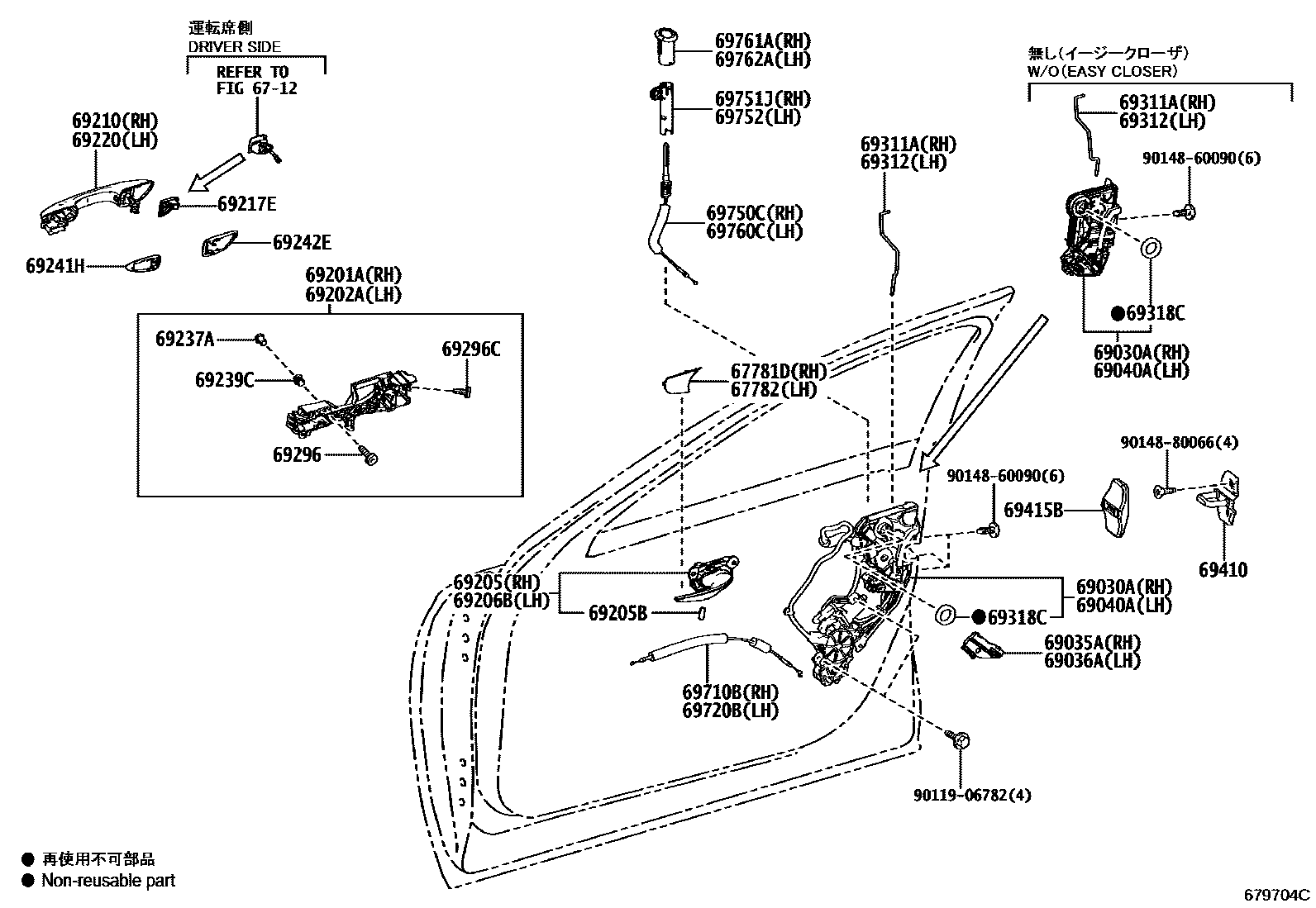

Parts diagram
6712LOCK CYLINDER SET
→ Go to FIG 67-12
67781DCOVER, FRONT DOOR TRIM, UPPER RH
main67781-50370i201710-202010
67782COVER, FRONT DOOR TRIM, UPPER LH
main67782-50380i202010-202310
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-50420i202010-202310
main69030-50440i201712-202002
SUSPENSION-COIL SPRING
main69030-50441i202002-202010
SUSPENSION-COIL SPRING
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010i202010
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010i202010
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-50400i201710-202010
main69040-50410i201712-202002
SUSPENSION-COIL SPRING
main69040-50411i202002-202010
SUSPENSION-COIL SPRING
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-50090i201710-201809
main69201-76040i202010
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50060i201710-201809
main69202-76040i202010
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69270-50030i202010
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main69275-30070×2i202010-202310
main90541-07050×2i201710-201807
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69280-50030i202010-202310
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-50090-A0i201710-201808
WHITE NOVA GF.,083
main69210-50090-A1i201710-201808
SONIC QUARTZ,085
main69210-50090-B0i201710-201808
SONIC SILVER,1J2
main69210-50090-B1i201710-201808
SONIC TITANIUM,1J7
main69210-50090-B2i201710-201808
MANGANESE LUSTER,1K2
main69210-50090-C0i201710-201808
BLACK,212
main69210-50090-C1i201710-201808
GRAPHITE BLACK GF.,223
main69210-50090-D0i201710-201808
RED MC.CS.,3R1
main69210-50090-D1i201710-201808
SONIC AGATE,3U3
main69210-50090-E0i201710-201808
SLEEK ECRU ME.,4U7
main69210-50090-E1i201710-201808
AMBER CS.,4X2
main69210-50090-J0i201710-201808
HEAT BLUE CONTRAST LAYERI,8X1
main69210-50090-J1i201710-201808
DEEP BLUE MC.,8X5
main69210-50091-A0i201809-202010
WHITE NOVA GF.,083
main69210-50091-A1supersedes 69210-50120-A1i201809-202010
SONIC QUARTZ,085
main69210-50091-B0i201809-202010
SONIC SILVER,1J2
main69210-50091-B1supersedes 69210-50120-B0i201809-202010
SONIC TITANIUM,1J7
main69210-50091-B2supersedes 69210-50120-B1i202010-202310
MANGANESE LUSTER,1K2
main69210-50091-B3supersedes 69210-50120-B2i202010-202310
SONIC IRIDIUM,1L2
main69210-50091-B4supersedes 69210-50120-B3i202010-202310
I SILVER,1L3
main69210-50091-C0supersedes 69210-50120-C0i202010-202310
BLACK,212
main69210-50091-C1supersedes 69210-50120-C1i201809-202010
GRAPHITE BLACK GF.,223
main69210-50091-D0supersedes 69210-50120-D0i202010-202310
RED MC.CS.,3R1
main69210-50091-D1supersedes 69210-50120-D1i201809-202010
SONIC AGATE,3U3
main69210-50091-E0i201809-202010
SLEEK ECRU ME.,4U7
main69210-50091-E1i201809-201909
AMBER CS.,4X2
main69210-50091-J0i201809-202010
HEAT BLUE CONTRAST LAYERI,8X1
main69210-50091-J1supersedes 69210-50120-J1i201809-202010
DEEP BLUE MC.,8X5
main69210-50120-A0i202310
WHITE NOVA GF.,083
main69210-50120-A1i202310
SONIC QUARTZ,085
main69210-50120-B0i202310
SONIC TITANIUM,1J7
main69210-50120-B1i202310
MANGANESE LUSTER,1K2
main69210-50120-B2i202310
SONIC IRIDIUM,1L2
main69210-50120-B3i202310
GIN-EI LUSTER,1L3
main69210-50120-C0i202310
BLACK,212
main69210-50120-C1i202310
GRAPHITE BLACK GF.,223
main69210-50120-D0i202310
RED MC.CS.,3R1
main69210-50120-D1i202310
SONIC AGATE,3U3
main69210-50120-J0i202310-202410
HEAT BLUE CONTRAST LAYERI,8X1
main69210-50120-J1i202310
DEEP BLUE MC.,8X5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-50060i202010-202310
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-50060-A0i201710-201808
WHITE NOVA GF.,083
main69220-50060-A1i201710-201808
SONIC QUARTZ,085
main69220-50060-B0i201710-201808
SONIC SILVER,1J2
main69220-50060-B1i201710-201808
SONIC TITANIUM,1J7
main69220-50060-B2i201710-201808
MANGANESE LUSTER,1K2
main69220-50060-C0i201710-201808
BLACK,212
main69220-50060-C1i201710-201808
GRAPHITE BLACK GF.,223
main69220-50060-D0i201710-201808
RED MC.CS.,3R1
main69220-50060-D1i201710-201808
SONIC AGATE,3U3
main69220-50060-E0i201710-201808
SLEEK ECRU ME.,4U7
main69220-50060-E1i201710-201808
AMBER CS.,4X2
main69220-50060-J0i201710-201808
HEAT BLUE CONTRAST LAYERI,8X1
main69220-50060-J1i201710-201808
DEEP BLUE MC.,8X5
main69220-50061-A0i201809-202010
WHITE NOVA GF.,083
main69220-50061-A1supersedes 69220-50090-A1i201809-202010
SONIC QUARTZ,085
main69220-50061-B0i201809-202010
SONIC SILVER,1J2
main69220-50061-B1supersedes 69220-50090-B0i202010-202310
SONIC TITANIUM,1J7
main69220-50061-B2supersedes 69220-50090-B1i202010-202310
MANGANESE LUSTER,1K2
main69220-50061-B3supersedes 69220-50090-B2i202010-202310
SONIC IRIDIUM,1L2
main69220-50061-B4supersedes 69220-50090-B3i202010-202310
I SILVER,1L3
main69220-50061-C0supersedes 69220-50090-C0i201809-202010
BLACK,212
main69220-50061-C1supersedes 69220-50090-C1i202010-202310
GRAPHITE BLACK GF.,223
main69220-50061-D0supersedes 69220-50090-D0i201809-202010
RED MC.CS.,3R1
main69220-50061-D1supersedes 69220-50090-D1i201809-202010
SONIC AGATE,3U3
main69220-50061-E0i201809-202010
SLEEK ECRU ME.,4U7
main69220-50061-E1i201809-201909
AMBER CS.,4X2
main69220-50061-J0i202010-202310
HEAT BLUE CONTRAST LAYERI,8X1
main69220-50061-J1supersedes 69220-50090-J1i201809-202010
DEEP BLUE MC.,8X5
main69220-50090-A0i202310
WHITE NOVA GF.,083
main69220-50090-A1i202310
SONIC QUARTZ,085
main69220-50090-B0i202310
SONIC TITANIUM,1J7
main69220-50090-B1i202310
MANGANESE LUSTER,1K2
main69220-50090-B2i202310
SONIC IRIDIUM,1L2
main69220-50090-B3i202310
GIN-EI LUSTER,1L3
main69220-50090-C0i202310
BLACK,212
main69220-50090-C1i202310
GRAPHITE BLACK GF.,223
main69220-50090-D0i202310
RED MC.CS.,3R1
main69220-50090-D1i202310
SONIC AGATE,3U3
main69220-50090-J0i202310-202410
HEAT BLUE CONTRAST LAYERI,8X1
main69220-50090-J1i202310
DEEP BLUE MC.,8X5
69237ANUT, FRONT DOOR HANDLE
main69237-62010×2i201710-202010
69239CBUSH, FRONT DOOR HANDLE
main69239-47010×2i201710-202010
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-50040i201710-202010
RH
main69242-50040i201710-202010
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-50050i201710-202010
RH
main69242-50050i202010
LH
69296SCREW, DOOR INSIDE HANDLE
main69296-30010×2i201710-202010
main90148-50006×2i202202
69296CSCREW, DOOR INSIDE HANDLE
main90148-50003×2i201710-202010
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-50070i202010
main69311-50080i202010
SUSPENSION-COIL SPRING
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-50070i202010
main69312-50080i201712-202010
SUSPENSION-COIL SPRING
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i201710-202010
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-50030×2i201710-202010
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-50020×2i202010-202310
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-50040i202010-202310
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-50040i201710-202010
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-50060i201710-202010
69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
main69751-50010i201710-202010
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
main69751-50010i201710-202010
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-50060i201710-202010
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-50050-C0i201710-202010
BLACK,TRIM00,06,2#,36,53
main69761-50050-D0i202010-202310
CRIMSON,TRIM30,37
main69761-50050-E0i201710-202010
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69761-50050-C0i202010-202310
BLACK,TRIM0#,1#,2#,36,38,4#,5#
main69761-50050-D0i202010
CRIMSON,TRIM30,37
main69761-50050-E0i201710-202010
NOBLE BROWN,TRIM03,04,1#,4#,51,54,9#
9011906782
main90119-06782
9014860090
main90148-60090
9014880066
main90148-80066

37 parts on this diagram · 1 diagram in section
