FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1RADIATOR SUPPORT & FENDER APR0006 1FENDER APRON 0007 1FENDER APRON 0008 1DASH PANEL

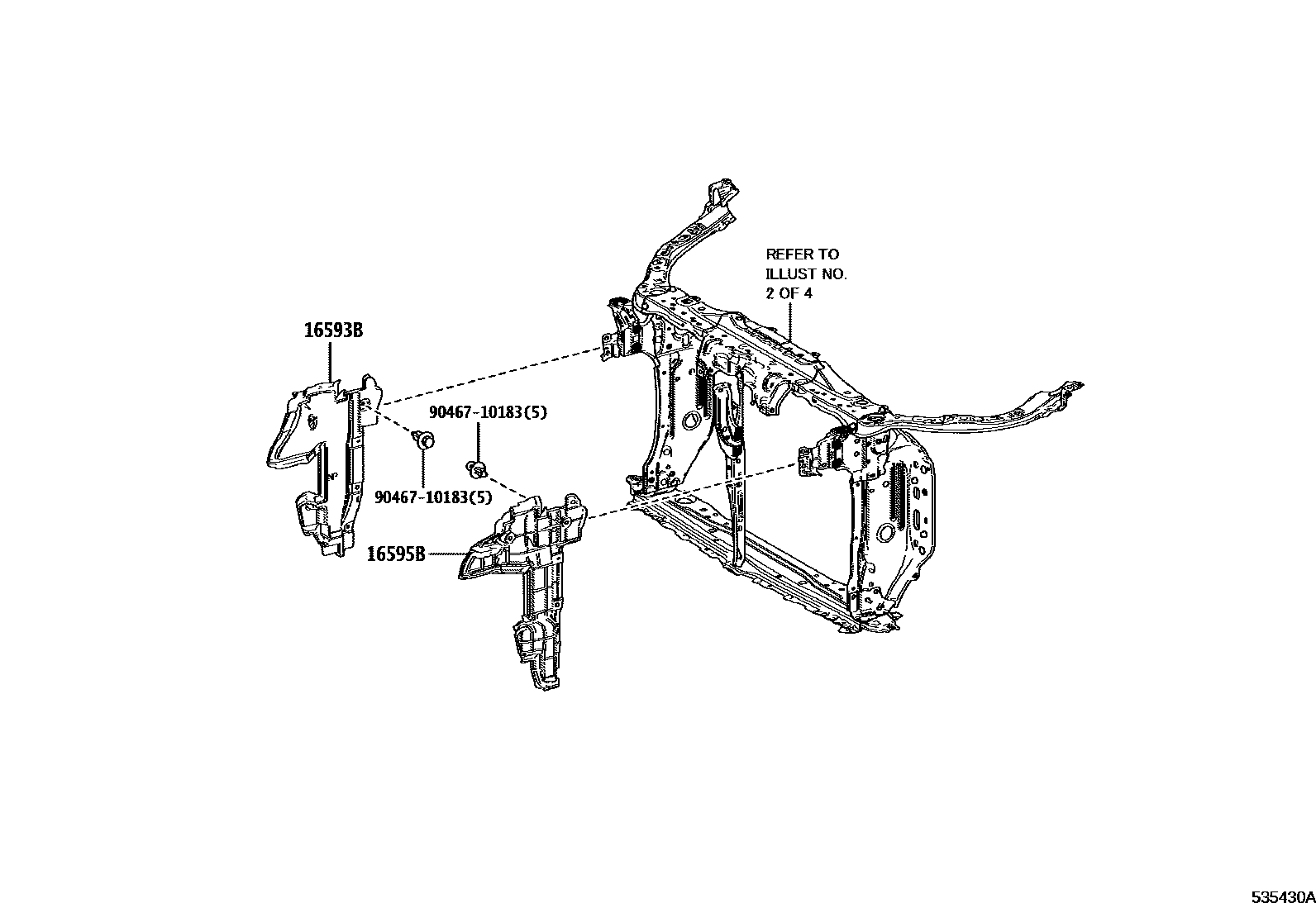

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-70010iV35AFTS,8GRFXS..GVF5#,VXFA5#201710-201911

sub16593-70011

main16593-70011i8GRFXS..GVF50201912-202310

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-70010iV35AFTS,8GRFXS..GVF5#,VXFA5#201710-201911

sub16595-70011

main16595-70011iV35AFTS,8GRFXS..GVF5#,VXFA5#201912-202310

9046710183

main90467-10183

3 parts on this diagram · 8 diagrams in section
